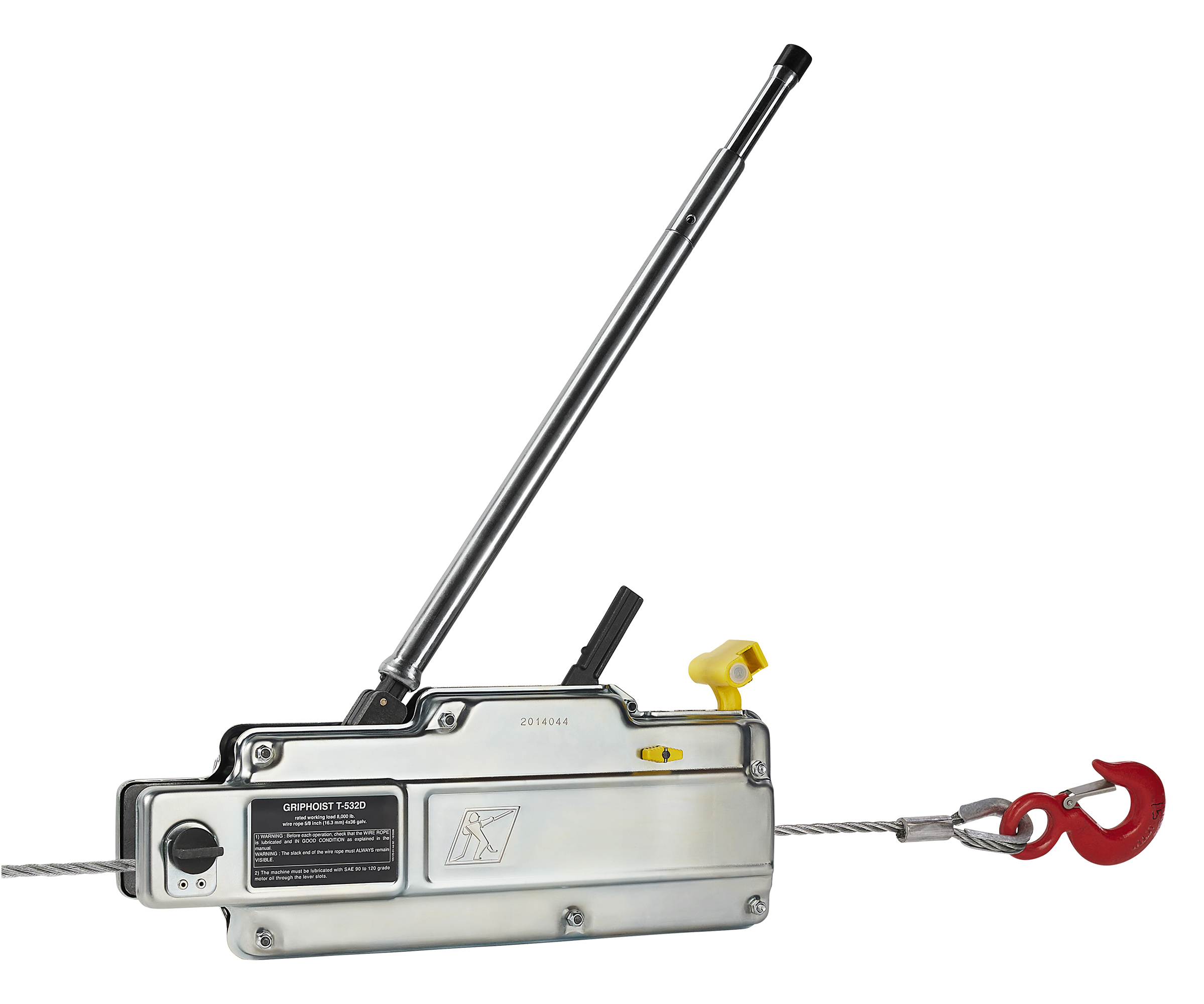

Tractel Griphoist / Tirfor T532D Manual Wire Rope Hoist – 5 Ton Capacity (Hoist Only)

Product Description

The Tractel Griphoist / Tirfor T532D is the largest and most powerful model in the Griphoist series, offering a rated capacity of 8,000 lbs (4 tons). Designed for the heaviest lifting, pulling, and tensioning operations, this manual hoist provides unmatched strength, safety, and versatility for large-scale construction, industrial, marine, and utility applications.

The T532D operates with a continuous pass-through wire rope system, making it suitable for virtually unlimited pulling or lifting distances. This design allows operators to work effectively in horizontal, vertical, or angled orientations, giving maximum flexibility on complex jobsites. Its dual jaw gripping mechanism automatically secures the rope at every pause, ensuring reliable load holding and precise control.

Made with a telescopic operating lever, the T532D provides users a strong mechanical advantage, enabling a single operator to safely control very heavy loads. Built-in overload shear pins protect against misuse, while its steel construction ensures long service life even under extreme conditions.

With its massive pulling power and dependable safety features, the Griphoist / Tirfor T532D is the professional choice when conventional hoists or winches cannot handle the demands of the job. From structural steel erection and utility work to bridge building, heavy rigging, and recovery operations, the T532D delivers power and control you can rely on.

Key Specifications

• Model / SKU: 033099124
• Type: Griphoist / Tirfor T532D
• Capacity: 8000 lbs (4 tons)
• Wire Rope Diameter: 5/8 in (16.3 mm)
• Wire Rope Length: Not Included
• Unit Weight: Approx. 51 lbs (24 kg)
• Forward Lever Effort: 880 lbs (45 kg)
• Reverse Lever Effort: 51.5 lbs (25 kg)
• Rope Travel per Forward Stroke: 11/16 in (18 mm)
• Rope Travel per Reverse Stroke: 1 3/8 in (36 mm)
• Minimum Wire Rope Breaking Strength: 40,000 lbs (18,000 kg)
• Minimum Distance Between Hooks: 35-1/2 in
• Hook Opening: 2-3/8 in
• Operation: Horizontal, vertical, or angled pulling and lifting
• Safety Features: Dual jaw load-holding system; overload shear pins
• Compliance: Meets ASME B30.21 standards
