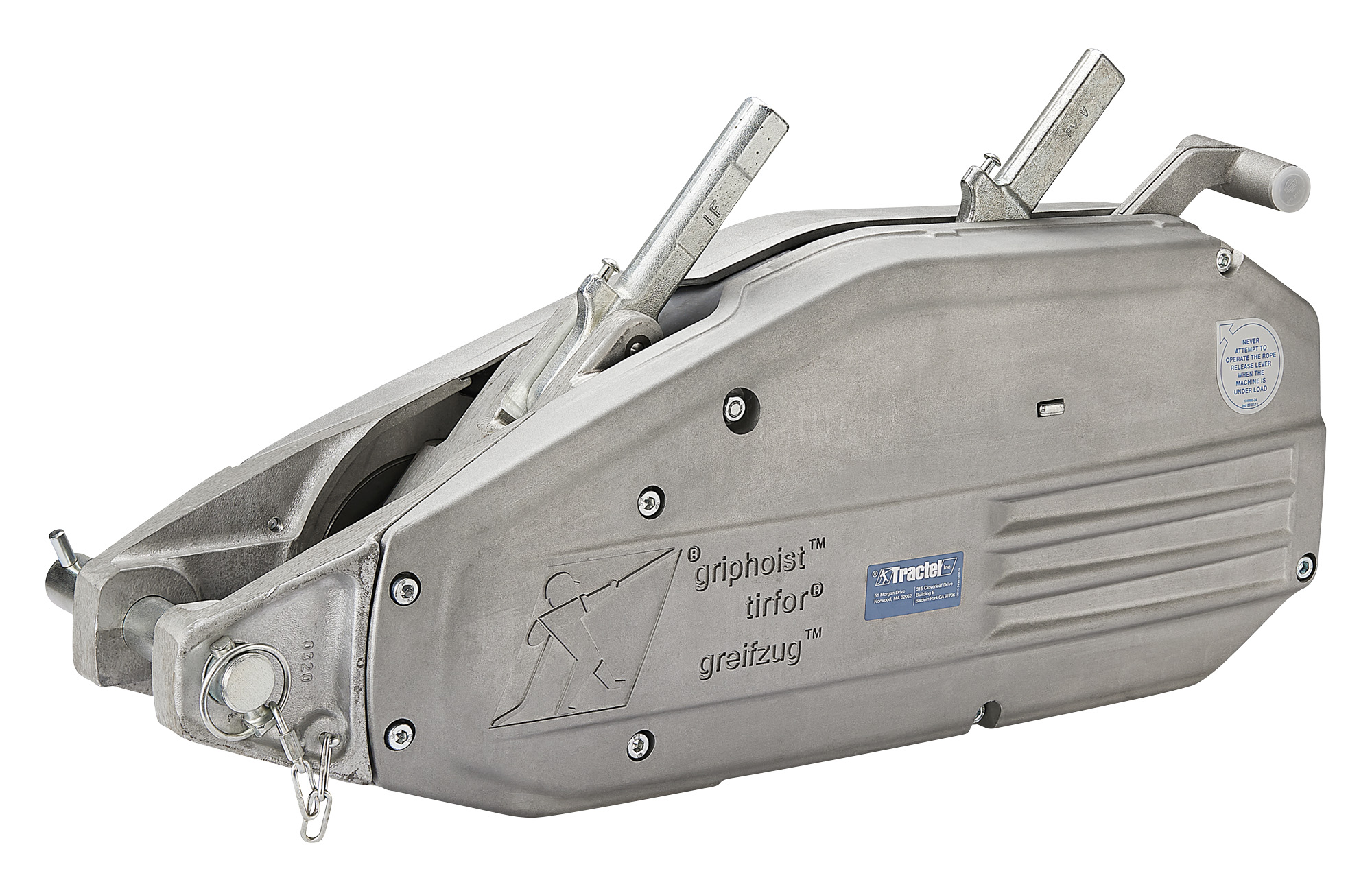

Tractel Griphoist / Tirfor TU32 Manual Wire Rope Hoist – 3.2 Ton Capacity (Hoist Body Only)

Product Description

The Tractel Griphoist / Tirfor TU32 is the heavy-duty model in the TU series, built to handle the most demanding lifting, pulling, and tensioning applications. With a nominal capacity of 7,000 lbs (3.2 tons), this hoist is designed for construction, utilities, industrial rigging, structural steel erection, and emergency response operations.

Like all Griphoist/Tirfor units, the TU32 utilizes a pass-through wire rope design, enabling virtually unlimited working distances. Its dual-jaw gripping mechanism automatically locks the rope at every point, ensuring reliable and secure load control.

Supplied here as the hoist body only, this unit allows operators to select wire rope assemblies according to job requirements. Rugged, portable, and safe, the TU32 Griphoist delivers maximum manual lifting power without the need for electricity or hydraulics.

Key Specifications

  • Model / SKU: TU32 (hoist body only)
  • Type: Griphoist / Tirfor TU32
  • Nominal Capacity: 7,000 lbs (3,200 kg)
  • Wire Rope Diameter (required): 5/8 in (16.3 mm)
  • Unit Weight (hoist body): 64 lbs (23 kg)
  • Effort on Lever (Forward): 119 lbs (54 kg)
  • Effort on Lever (Reverse): 55 lbs (25 kg)
  • Rope Travel per Forward Stroke: 2 13/64 in (56 mm)
  • Rope Travel per Reverse Stroke: 2 3/4 in (70 mm)
  • Minimum Wire Rope Breaking Strength: 40,000 lbs (18,144 kg)
  • Safety Factor: 4:1 (material handling applications)
  • Operation Modes: Horizontal, vertical, or angled pulling and lifting
  • Safety Features: Dual jaw gripping system; overload shear pins
  • Compliance: Meets ASME B30.21 standards
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
