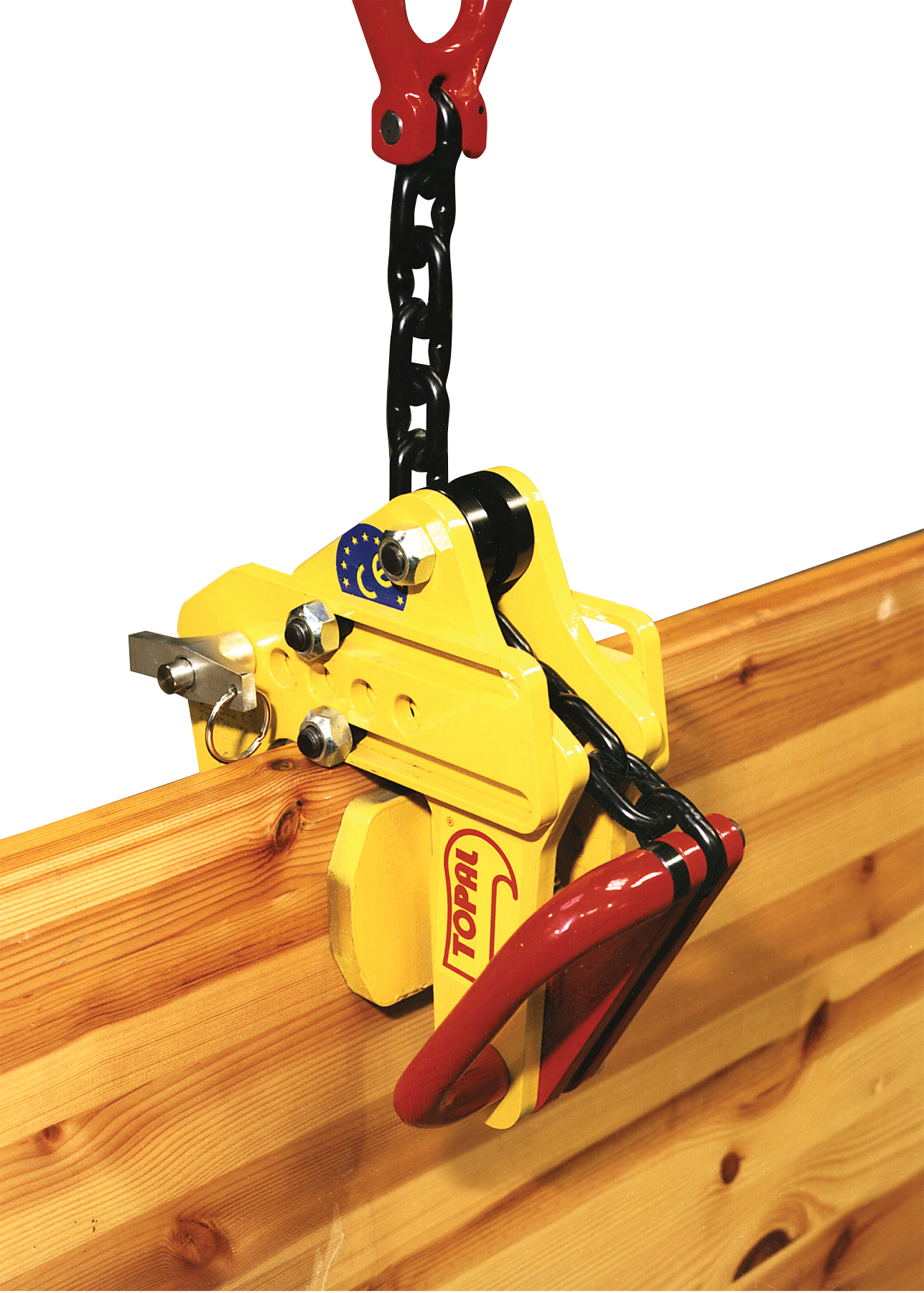

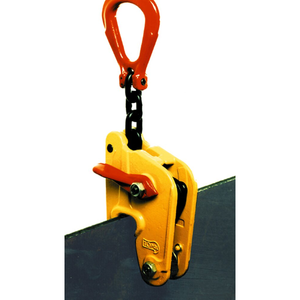

Tractel Topal NK3-80-120 Multiposition Self-Locking Plate Clamp – 9,900 lbs Capacity

The Topal NK3-80-120 Multiposition Self-Locking Plate Clamp is built for heavy-duty lifting where safety, stability, and strength are critical. With a working load limit of 9,900 lbs (4,500 kg) and a wide jaw opening range of 3 3/16 to 4 5/8 inches (80–120 mm), this clamp is designed to securely handle thick steel plates, large beams, and heavy fabricated assemblies with confidence and precision.

The automatic self-locking mechanism engages immediately when the load is applied, maintaining a firm grip throughout the lift. Its multiposition design provides you with both vertical and horizontal lifting, as well as rotation up to 180°. This gives you flexible handling and easy alignment of needed materials. This makes the NK3-80-120 an excellent choice for fabrication shops, construction sites, and manufacturing environments where efficient, safe load positioning is essential.

Clamp is made from high quality steel and finished with a durable hot epoxy coating. This clamp offers outstanding resistance to elements to fight wear and corrosion. The serrated cam provides secure traction while minimizing surface marking, protecting the finish of your materials. Built to meet international safety standards, the NK3-80-120 delivers the reliable performance and longevity that true professionals depend on.

Specifications:

• Model: NK3-80-120
• Working Load Limit (WLL): 9,900 lbs (4,500 kg)
• Jaw Opening: 3 3/16–4 5/8 in. (80–120 mm)
• Weight: 20.6 kg
• Material: High-strength steel with hot epoxy coating
• Locking Mechanism: Automatic self-locking cam
• Safety Factor: 3:1 (EN 13155:2003 compliant)
• Standards Compliance: ANSI B30.20
• Temperature Range: -20°C to +100°C
• Minimum Load: 5% of WLL (approx. 495 lbs)
• Maximum Load Surface Hardness: 300 HB
• Lifting Capability: Vertical and horizontal lifting; rotation up to 180°
• Usage Note: Not suitable for lifting fragile or brittle materials

The Topal NK3-80-120 Multiposition Self-Locking Plate Clamp offers exceptional lifting capacity, durability, and precision—making it a dependable choice for professionals who handle large, heavy steel components on a daily basis.
