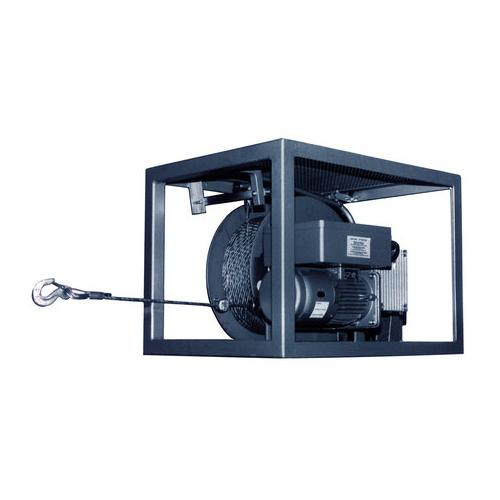

Tractel Mobile GripWinch® MG705-500 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Two-Speed, Three-Phase
Tractel Mobile GripWinch® MG705-500 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Two-Speed, Three-Phase

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Tractel Mobile GripWinch® MG705-500 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Two-Speed, Three-Phase

Write a Review
$39,575.99
SKU: MG705-500
Weight: 160.00 LBS
Width: 29.10 (in)
Height: 22.00 (in)
Depth: 18.90 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Mobile GripWinch® MG705-500 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Two-Speed, Three-Phase

Tractel Mobile GripWinch® MG705-500 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Two-Speed, Three-Phase

$39,575.99
Description

Tractel Mobile GripWinch® MG705-500 Wire Rope Hoist — 700 kg (1,500 lb) Capacity, Two-Speed, Three-Phase, 17/33 fpm (5/10 m/min)

The Mobile GripWinch MG705-500 delivers reliable power and flexibility for demanding lifting and pulling applications. With dual-speed operation, a rugged three-phase motor, and long rope capacity, it’s built to handle extended lifts with precision and efficiency.

Product Description

Equipped with a three-phase motor rated at 5/7 amps, the MG705-500 supports loads up to 700 kg (1,500 lb). Operators can select between two lifting speeds: 17 ft/min (5 m/min) for controlled, precise handling or 33 ft/min (10 m/min) for faster work. The hoist is designed for extended reach, holding up to 1,640 ft (500 m) of 5/16 in. (8.4 mm) wire rope or 1,312 ft (400 m) of 3/8 in. (9.5 mm) wire rope.

The traction-based drive system provides smooth and consistent lifting across both speeds. Compact and portable, the MG705-500 is easy to set up on site, while features like automatic braking and load control ensure safe, efficient operation. Hoist has a durable build and low-maintenance design that makes it a dependable choice for industrial, construction, and maintenance projects.

Key Specifications

  • Rated Capacity: 700 kg (1,500 lb)
  • Motor Type: Two-speed, three-phase electric motor, 5/7 A
  • Lifting Speeds: 17 / 33 ft/min (5 / 10 m/min)
  • Maximum Wire Rope Length: 1,640 ft (500 m) with 5/16 in. (8.4 mm) wire rope
  • Maximum Wire Rope Length: 1,312 ft (400 m) with 3/8 in. (9.5 mm) wire rope
  • Drive System: Traction-based for smooth lifting and pulling
  • Controls: Simple up/down operation
  • Safety Features: Automatic brake, load control
  • Applications: Long-reach lifting, pulling, scaffold or material handling
  • Maintenance: Low-maintenance design for consistent performance

Why Choose the Mobile GripWinch MG705-500?

  • Dual-speed control for precise or faster lifts
  • Extended rope capacity for long-reach applications
  • Smooth, consistent performance with traction drive
  • Portable and rugged design suited for various job sites
  • Built-in safety features ensure secure operation
  • Low-maintenance build keeps projects running efficiently
Warranty Information
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
