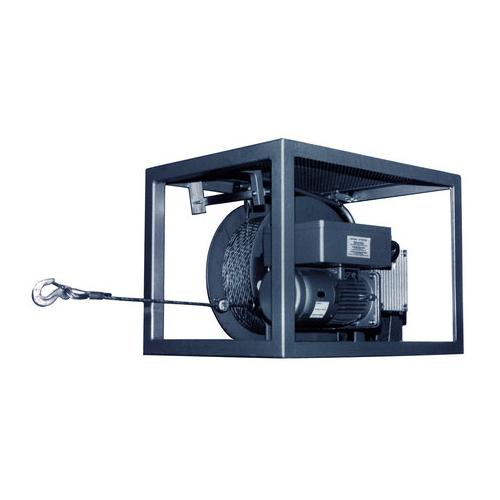

Tractel Mobile GripWinch® MG1026-500 Wire Rope Hoist — 1,000 kg (2,200 lb) Capacity, Two-Speed, Three-Phase Motor

The MG1026-500 Mobile GripWinch is a high-capacity hoist built for demanding applications that require both precision and speed. Having a 1,000 kg (2,200 lb) load rating and extended wire rope capacity, this unit provides reliable lifting and pulling power for industrial, construction, and utility environments.

Product Description

Powered by a two-speed, three-phase electric motor rated at 7.8/20 amps, the MG1026-500 offers dual lifting speeds to adapt to the task at hand. Operators can select a controlled 17 ft/min (5 m/min) for precision handling or a faster 70 ft/min (21 m/min) for high-efficiency load movement.

This model is designed for long-distance operations with a maximum rope capacity of 1,640 ft (500 m) using 5/16 in. (8.4 mm) wire rope or 1,312 ft (400 m) using 3/8 in. (9.5 mm) wire rope. Hoist uses a traction drive system to ensure users a smooth, consistent movement, while built-in safety features such as automatic braking provide secure load control in all conditions.

Key Specifications

• Rated Capacity: 1,000 kg (2,200 lb)
• Motor Type: Two-speed, three-phase electric motor (7.8/20 A)
• Lifting Speeds:
  • 17 ft/min (5 m/min)
  • 70 ft/min (21 m/min)
• Maximum Wire Rope Capacity:
  • 1,640 ft (500 m) with 5/16 in. (8.4 mm) wire rope
  • 1,312 ft (400 m) with 3/8 in. (9.5 mm) wire rope
• Drive System: Traction-based, smooth load engagement
• Safety Features: Automatic braking and secure load control
• Applications: Heavy-duty lifting, pulling, and long-distance material handling
• Design: Rugged, reliable construction for low-maintenance operation
