Tractel Dynasafe™ HF 05/3 Tension Load Limiting Cell – 4,000 lb Capacity (Model A, Dual Trip Points, No Monitor) - 43528

Write a Review
$3,044.99
SKU: 43528
Weight: 1.00 LBS
Width: 4.30 (in)
Height: 5.94 (in)
Depth: 0.80 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Dynasafe™ HF 05/3 Tension Load Limiting Cell – 4,000 lb Capacity (Model A, Dual Trip Points, No Monitor) - 43528

Tractel Dynasafe™ HF 05/3 Tension Load Limiting Cell – 4,000 lb Capacity (Model A, Dual Trip Points, No Monitor) - 43528

$3,044.99
Description

Tractel Dynasafe™ HF 05/3 Tension Load Limiting Cell – 4,000 lb Capacity (Model A, Dual Trip Points, No Monitor) - 43528

Product Description

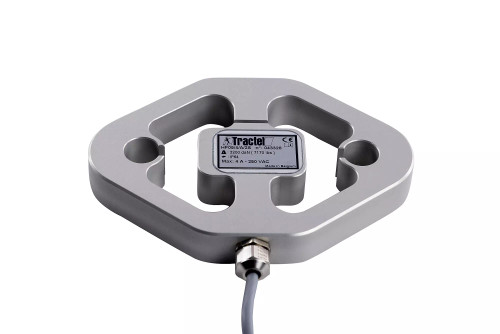

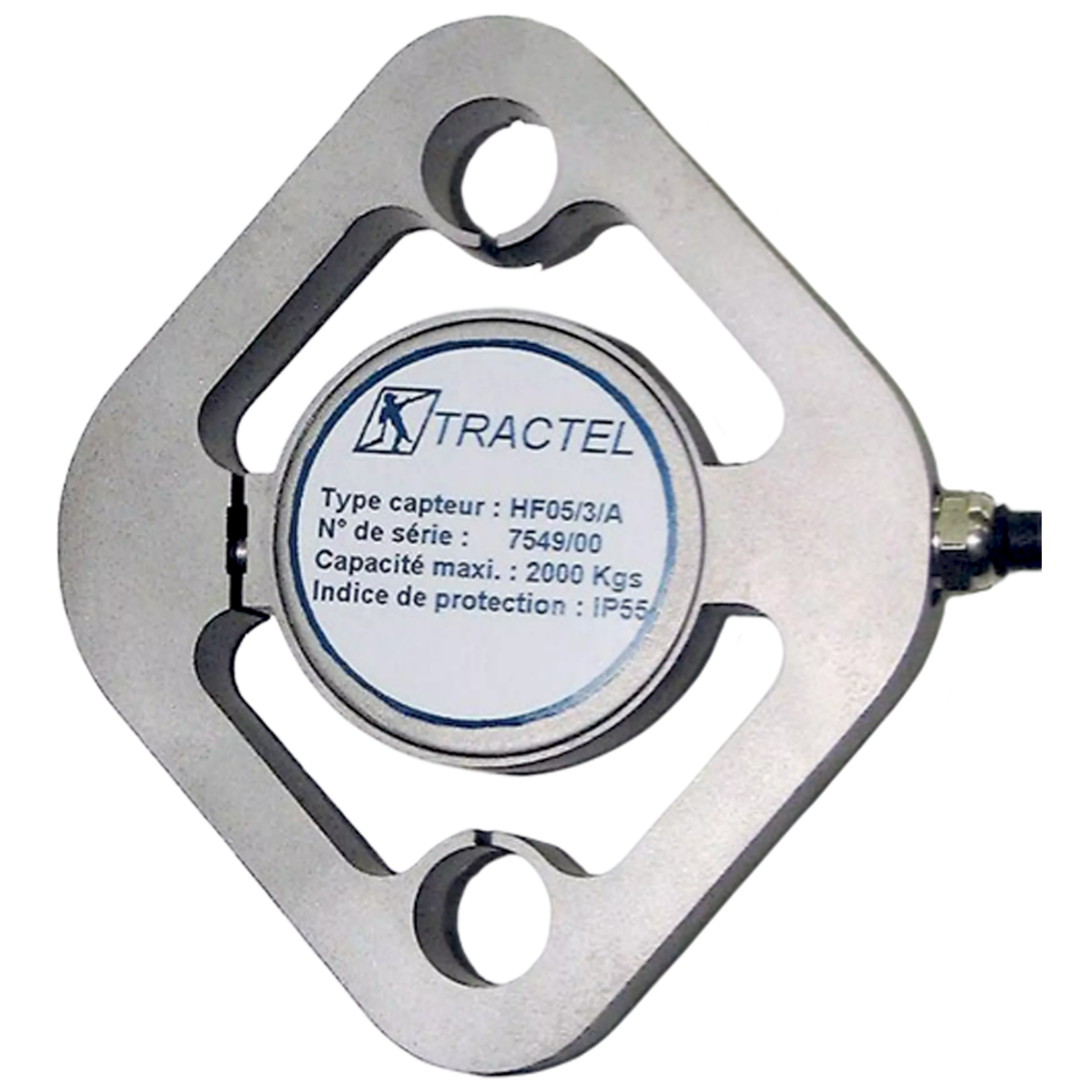

The Tractel Dynasafe™ HF 05/3 Tension Load Limiting Cell is a robust safety device that has been designed to give users staged overload protection for lifting and tensioning systems. This Model A version features two independent trip points. This allows a pre-warning activation at the first threshold and a full stop or alarm at the second. Its integrated micro switches eliminate the need for a separate monitor, making it a self-contained, easy-to-install safety solution.

With a 4,000 lb (1,814 kg) capacity, the HF 05/3 is ideal for medium- to heavy-duty hoists, cranes, winches, and tensioned wire-rope systems. Installed directly in the load path, it delivers immediate mechanical overload detection to help prevent equipment damage, unsafe conditions, and costly downtime.

Engineered for precise and repeatable performance in industrial environments, the HF 05/3 combines compact design, dual-trip functionality, and durable construction for reliable staged load-limiting control.

Specifications

• Capacity: 4,000 lbs (1,814 kg)

• Model: A — 2 trip points

• Switching Device: Two integrated micro switches

• Monitor: Not required (self-contained activation)

• Load Type: Tension

• Activation: Triggers at preset thresholds for staged overload protection

• Installation: In-line load cell for direct load-path integration

• Typical Applications: Hoists, cranes, winches, overhead lifting systems, tensioned wire ropes, staged overload safety circuits

Warranty Information
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
