Product Overview

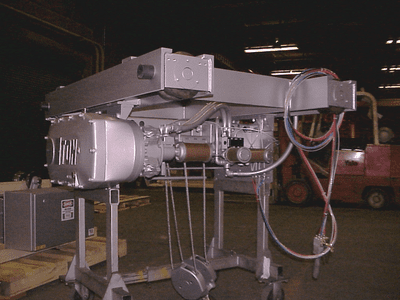

The Top Running Double Girder Low Profile hoist is engineered to deliver exceptional lifting capabilities while maintaining a streamlined profile, making it the ideal choice for operations with limited overhead space. With a robust lifting capacity of 11.00 tons and a swift maximum lift speed of 18.00 feet per minute, this hoist is designed for efficiency, precision, and consistency in heavy-duty lifting tasks.
This innovative hoist features a 3-part line reeving system that enables lifts up to 50'8", accommodating a variety of lifting heights necessary for various industrial applications. Built with a 10.4 KW motor, it ensures reliable performance while handling heavy loads. The closed-loop vector Variable Frequency Drive (VFD) control provides not just power but also precise and responsive operation, allowing for accurate load positioning, thus enhancing safety in the workplace.
- Top-running double girder low-profile suspension for robust support and optimal space efficiency.
- 11.00-ton lifting capacity designed for medium to heavy industrial loads.
- 3-part line reeving for versatile lifting heights up to 50'8".
- Maximum hoist lift speed of 18.00 feet per minute for rapid load handling.
- 10.4 KW hoist motor ensuring high performance and durability under heavy loads.
- Closed-loop vector VFD control for enhanced precision in hoist operations.
- Trolley speed capable of reaching 80.00 FPM for efficient horizontal movement.
- Dual 0.55 KW motors for reliable trolley operation along runway beams.
- Sensorless vector VFD control for smooth and responsive trolley maneuvering.
- Compatible with standardized electric power supplies (230VAC, 3-phase, 60Hz with ±5% tolerance).
- Classified as CMAA Class D, perfect for outdoor use in adverse weather conditions.
- Trolley gauge of 108.0000 inches for steady and unobstructed movement along the runway.
- Weighs approximately 2400.00 lbs for manageable installation and operation.
- Incorporates premium-grade materials like graphite ductile iron for wheels and sheaves, ensuring durability.
- UL508A and c UL us listed industrial control panel provided, equipped with a CSA Type 4, 4X enclosure.
- Dynamic braking features for both hoist and trolley enhance safety and operational efficiency.
- Overweight protection and precise speed control prevent the risk of load-related incidents.

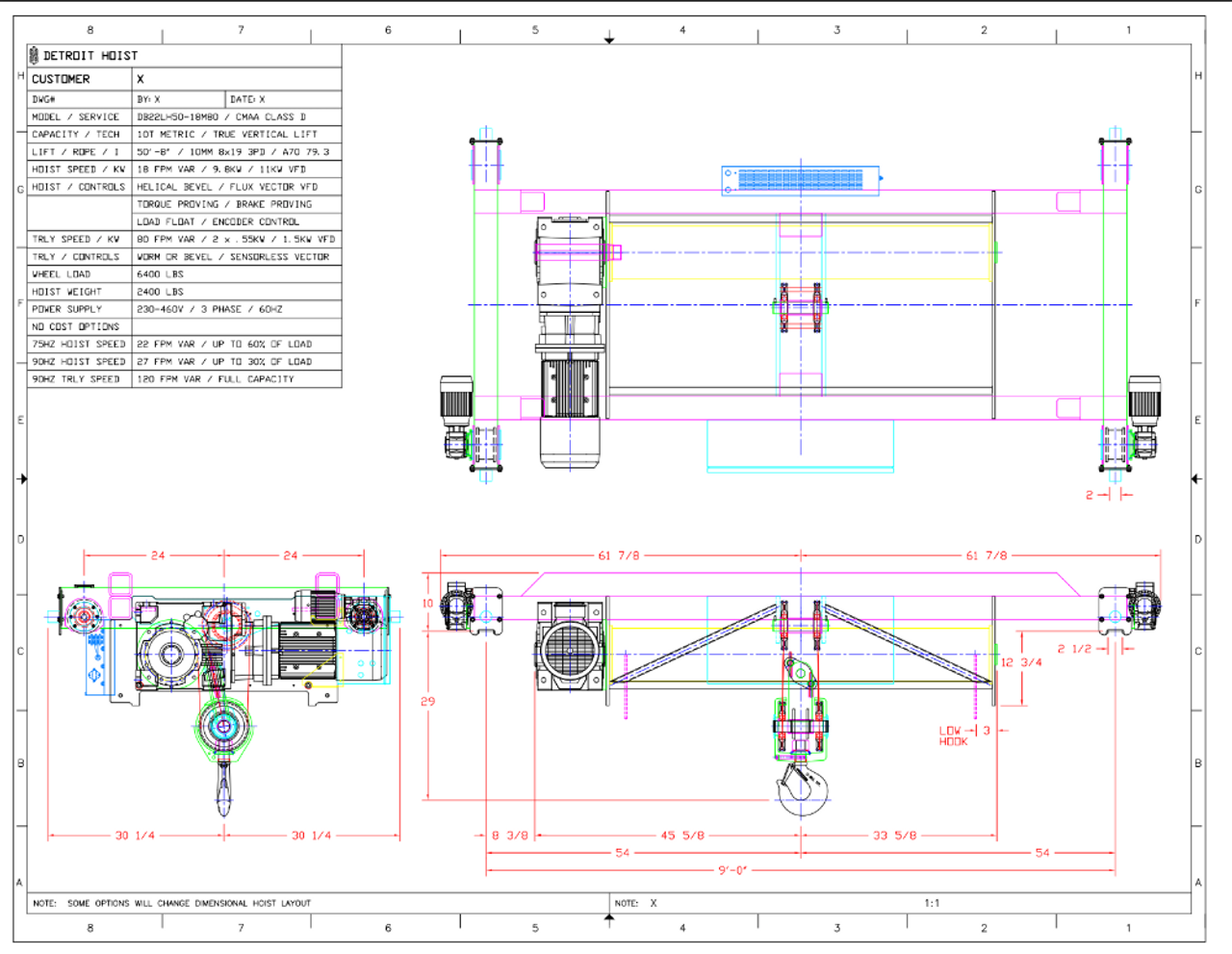

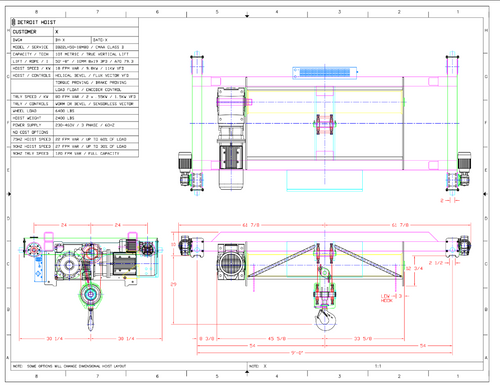

This model, designated DB22LH50-18, represents the pinnacle of lifting technology, combining strength, reliability, and precision. It is an essential tool for any industrial operation aiming to optimize efficiency and safety when handling heavy loads.
