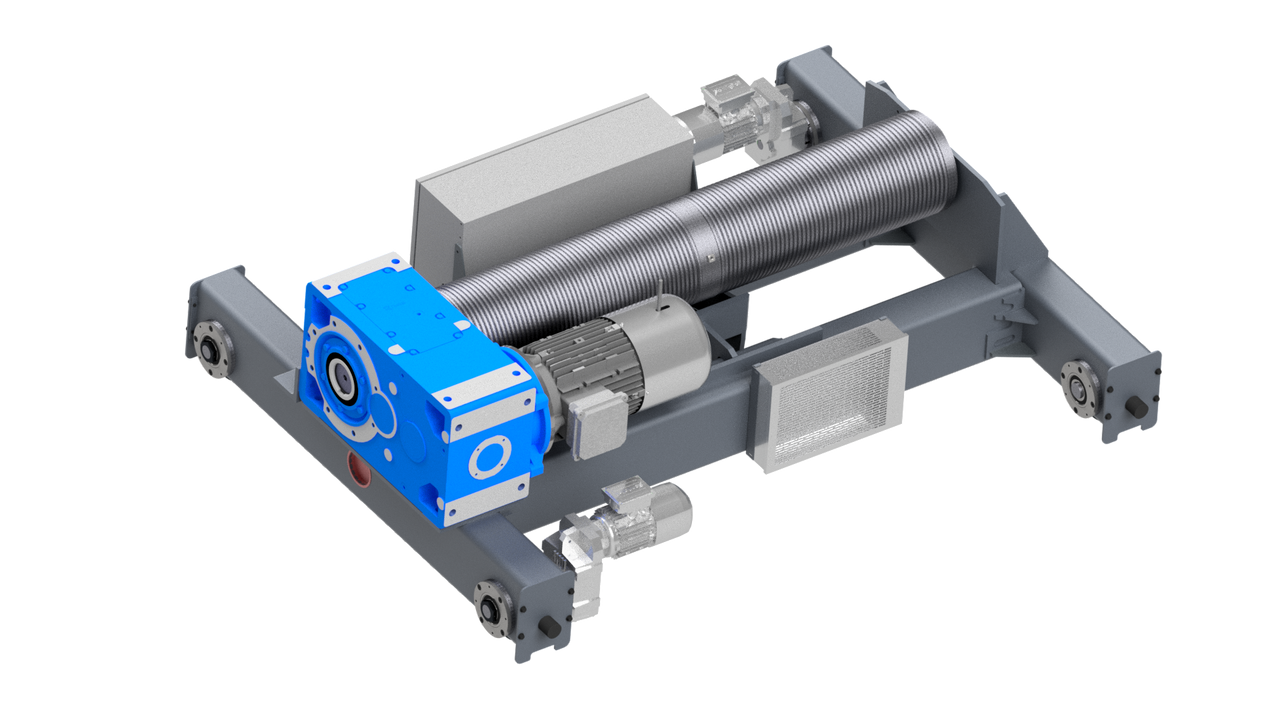

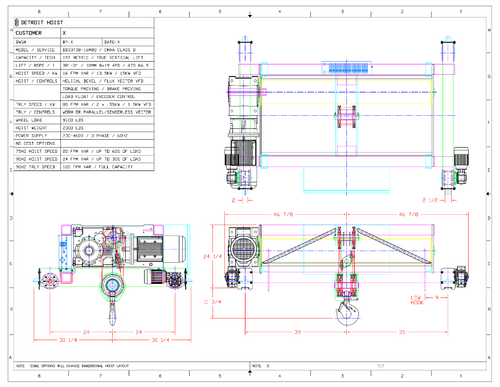

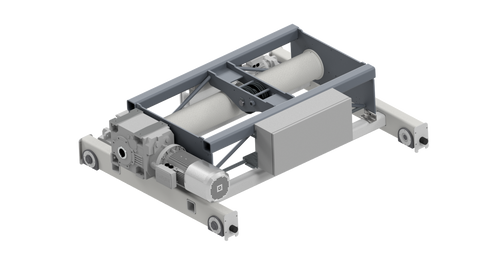

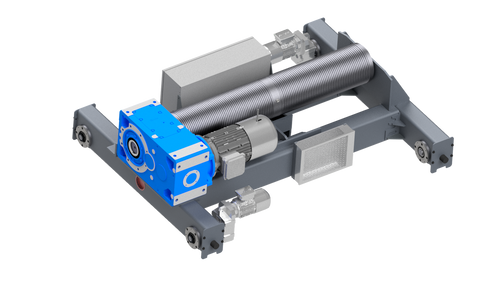

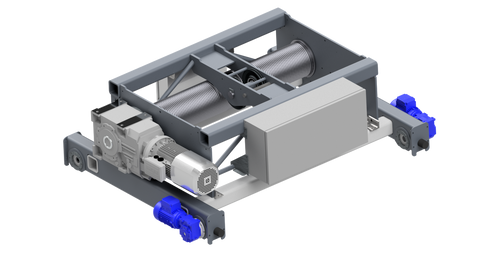

Top Running Double Girder, Capacity: 16.50 Ton, Hoist Lift Speed: 16.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 78.0000", DB33T38-16, Detroit

Type: Suspension / Mount Top Running Double Girder

Capacity: The Model DB33T38-16 is engineered for heavy-duty lifting operations with an impressive capacity of 16.50 tons. Its robust design and high load capacity make it an optimal solution for handling large and heavy loads with precision and reliability.

Reeving | Lift: Featuring a 4-part reeving system, this model offers a lift height of 38 feet, providing substantial vertical reach for lifting tasks requiring significant elevation. This extended reach enhances versatility and adaptability for various lifting operations, ensuring efficient handling of diverse loads.

Hoist Lift Speed: With a maximum hoist lift speed of 16.00 feet per minute (FPM), the Model DB33T38-16 facilitates swift and controlled vertical movement of loads. This optimized speed ensures efficient lifting and lowering operations, contributing to enhanced productivity and reduced cycle times.

Hoist Motor: Powered by a robust 13.4 kW hoist motor, this system delivers exceptional performance and torque for lifting heavy loads with ease. The powerful motor ensures reliable and controlled movement, contributing to operational efficiency and safety during lifting operations.

Hoist Control: Equipped with closed-loop vector Variable Frequency Drive (VFD) control, the Model DB33T38-16 offers precise and responsive hoisting operations. This advanced control system ensures accurate speed regulation, load handling, and positioning, optimizing performance and safety during lifting operations.

Trolley Speed: With a maximum trolley speed of 80.00 FPM, this system enables rapid and precise horizontal movement of loads along the girder tracks. Whether transporting materials within a facility or positioning heavy components, the Model DB33T38-16 ensures efficient handling and maneuverability.

Trolley Motor: Featuring two motors, each rated at 0.55 kW, the trolley system provides sufficient power for smooth and controlled movement across the working area. These motors deliver reliable propulsion, enabling precise positioning and efficient operation of the trolley.

Trolley Control: Utilizing sensorless vector VFD control, the trolley movement is accurately regulated, ensuring precise positioning and smooth operation. This advanced control system allows for responsive and efficient trolley movements, enhancing overall efficiency and safety during material handling tasks.

Power Supply: The Model DB33T38-16 operates on electric power, with a voltage rating of 230VAC, 3-phase, and a frequency of 60Hz (+5% tolerance). This ensures compatibility with standard electrical systems, facilitating seamless integration into existing infrastructure.

CMAA Class | Atmosphere | Location Class: Compliant with CMAA standards and suitable for indoor service in atmosphere class D conditions, the Model DB33T38-16 offers reliability and safety in various operating environments. Additionally, its weather-resistant design enhances durability and performance, allowing for operation in diverse weather conditions.

Trolley Gauge: With a trolley gauge measuring 78.0000 inches, the system ensures stability and proper alignment during horizontal movement along the girder tracks, enhancing safety and efficiency during material handling tasks.

Approximate Weight: Weighing approximately 2300.00 lbs, the Model DB33T38-16 features a robust construction, ensuring durability and stability during lifting operations. Its sturdy build quality and reliable components contribute to its overall performance and longevity in demanding industrial environments.
