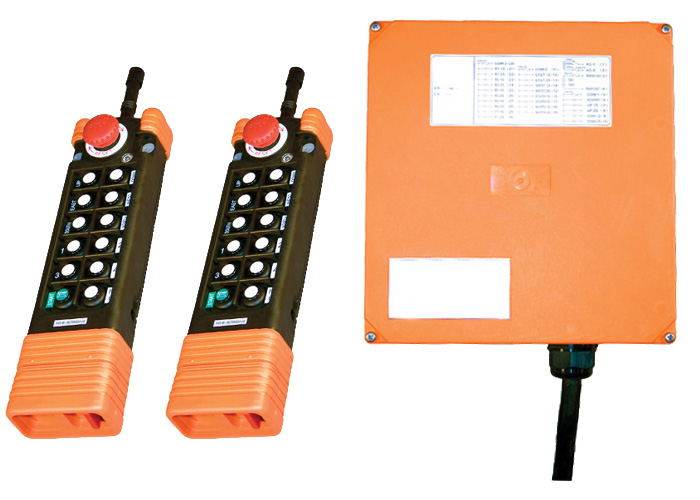

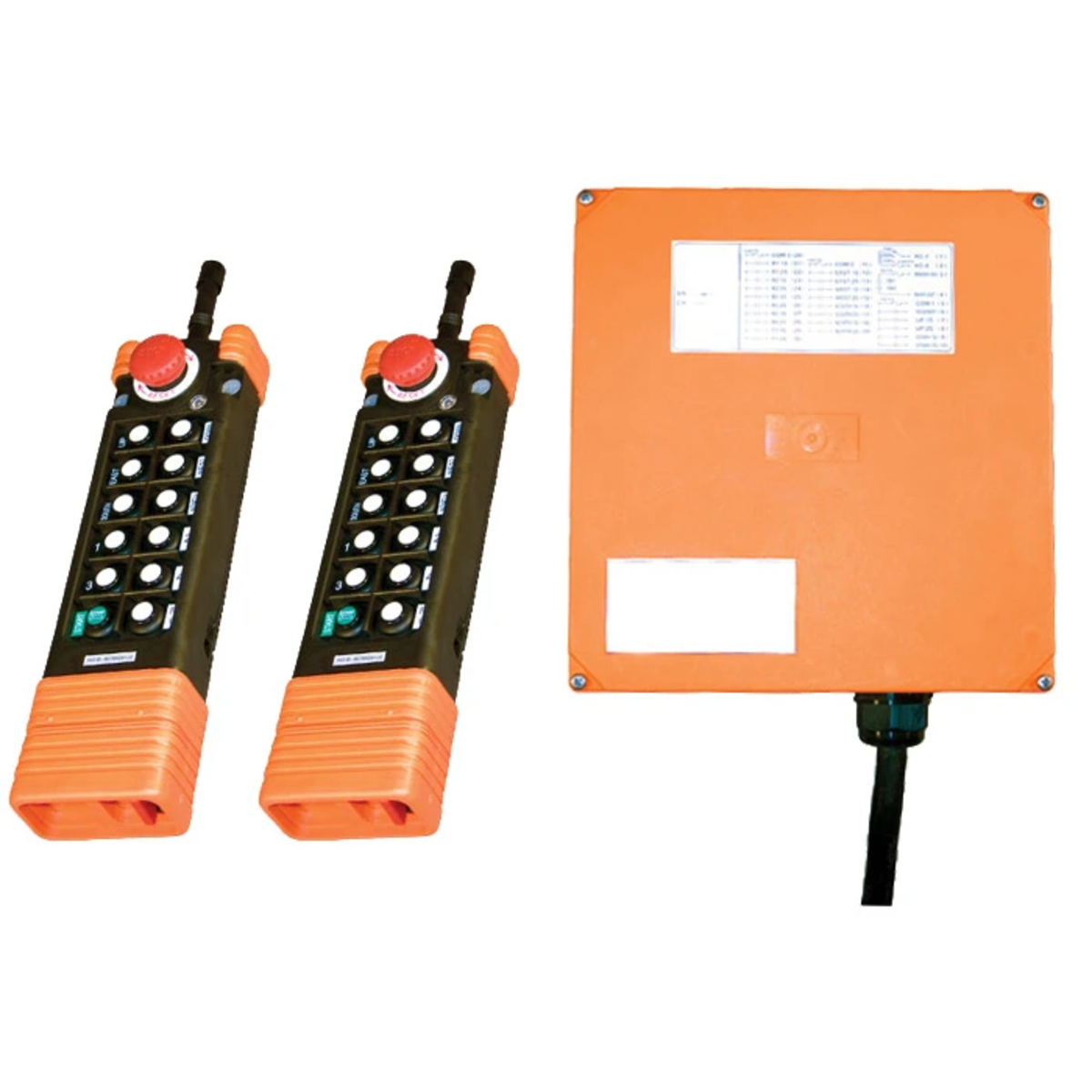

The XA_700DL12 from Conductix_Wampfler’s Saga_L12 Series is a factory-configured radio remote control kit engineered for cranes, hoists, and complex material handling systems requiring enhanced control and safety:
Transmitters (Qty 2)
Each features 12 pushbuttons with two-speed (high/low) operation, enabling control of up to five motion directions with auxiliary support.
Includes a key lock On/Off switch to prevent unauthorized use and an integrated E_STOP for immediate shutdown.
Lightweight design (~1.2_lb with batteries), low-power FM radio with jammed-button detection and shock resistance.
Receiver
Factory-paired to match the two transmitters—simple plug-and-play setup.
Enclosed in a NEMA_4 (IP65) housing with 4-point shock mounting, ideal for rugged industrial environments.
Operates on 433–435_MHz Frequency_Hopping Spread Spectrum (FHSS) for secure, interference-resistant performance with approximately 100_m (330_ft) line-of-sight range.
Safety & Reliability
E_STOP and key-lock configuration align with industry safety standards.
Redundant safety architecture using dual relay and microcontroller setup for fail-safe operation.
Kit Includes
Two transmitters complete with batteries, straps, legend sheets, spare key, fuse kit, and user manual.
Receiver with antenna, pre-wired cable, and mounting hardware—cut sheet and dimension drawings available for download.
Key Specifications
Feature Specification
Model XA_700DL12
Series Saga_L12
Transmitters 2 _ 12-button, 2-speed, Key On/Off, E_STOP
Receiver Power AC (site-dependent; check spec sheet)
Radio Frequency 433–435_MHz FHSS
Wireless Range ~100_m (330_ft) LOS
Housing NEMA_4/IP65 with 4-point shock mount
Weight 5.32_lb
Includes Batteries, strap, legend sheet, spare key/fuse, manual, antenna, hardware, downloadable cut sheet & drawings
