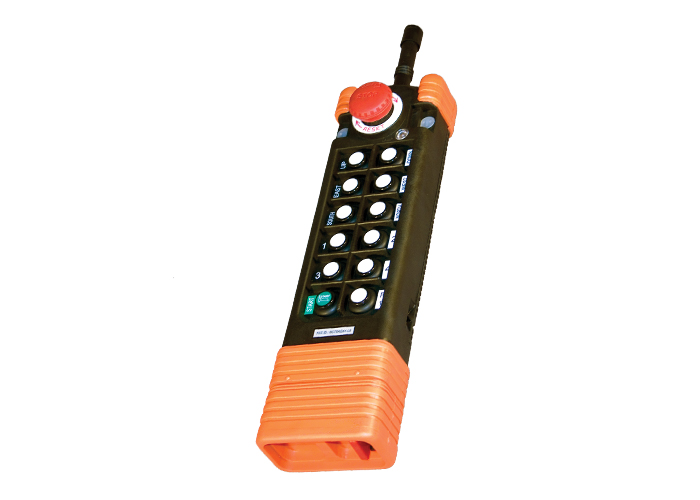

The XA-701L12002 is a spare transmitter designed for use with the Saga L12 Series radio remote control kits from Conductix-Wampfler. It offers robust control in industrial applications requiring multiple functions and reliable safety features.
Button Configuration:
12 buttons with 2-speed control (high/low) for precise motion control in material handling and crane applications.
Fully compatible with existing Saga L12 Series receivers, offering an easy replacement for damaged or lost transmitters.
Durable Design:
Enclosed in a rugged, weather-resistant housing, designed for industrial environments.
Equipped with a key On/Off switch and emergency-stop (E-Stop) functionality to ensure safety in operation.
Lightweight for ease of use and handling.
Range and Performance:
Operates on a secure wireless frequency for long-range control (up to 100 meters).
Frequency-hopping spread spectrum (FHSS) for secure, interference-free operation.
Versatility:
This transmitter is a direct replacement part for the Saga L12 series, making it an ideal choice for quick repairs or upgrades to existing control systems.
Easy pairing with other Saga L12 Series receivers for seamless integration.
Key Specifications
Feature Specification
Model XA-701L12002
Series Saga L12
Button Configuration 12 buttons, 2-speed
Frequency 433–435 MHz FHSS
Housing Industrial-grade, weather-resistant
Safety Features E-Stop, Key On/Off
Range ~100 meters (330 ft) LOS
Weight Approx. 1 lb
Compatibility Compatible with Saga L12 Series receivers
