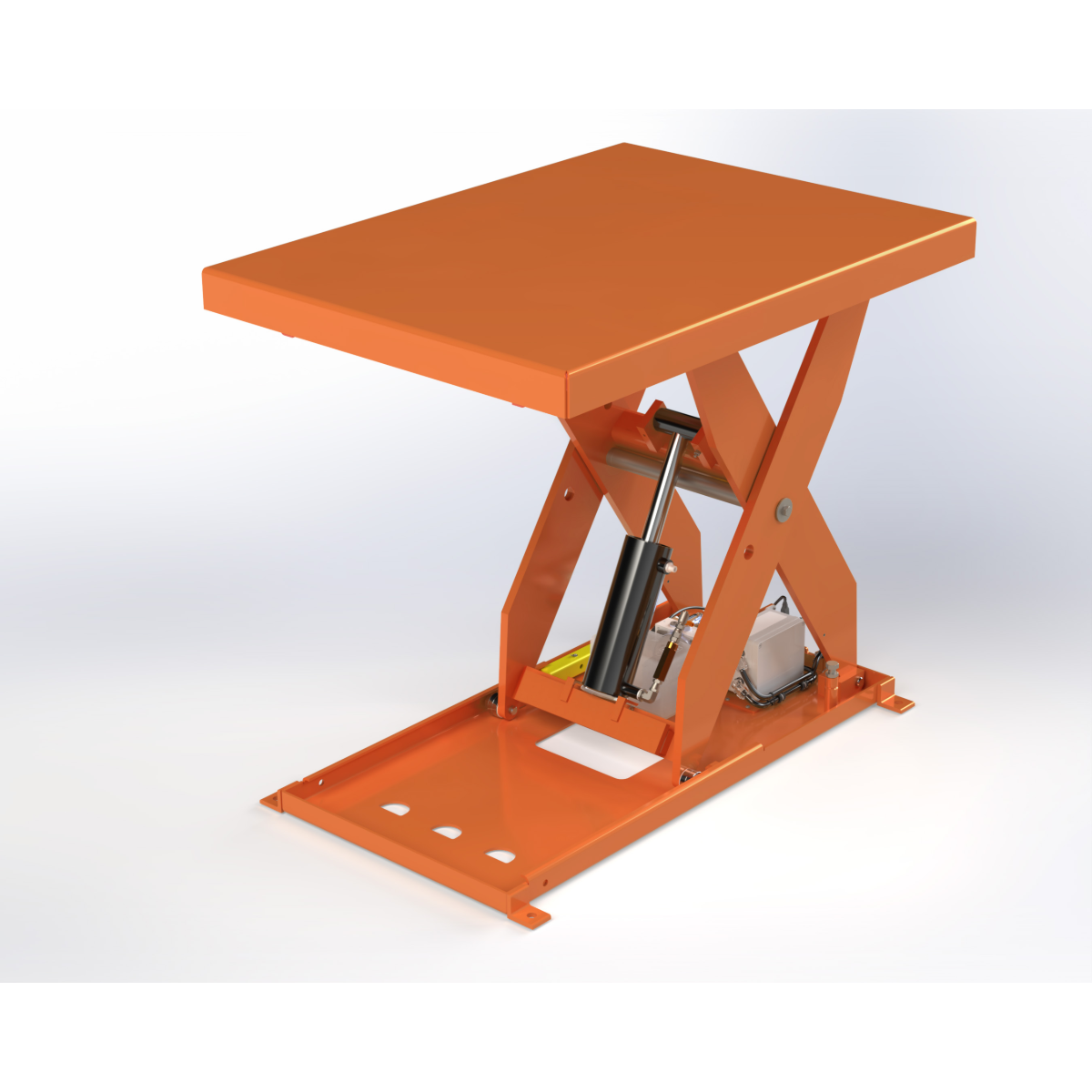

XL36-40 – A hydraulic scissor lift table rated for 4,000 lb capacity, featuring a 24″ × 48″ platform and a lifting range from approximately 7.25″ to 43″. Built for heavy-duty ergonomic material handling in industrial and production settings.

Product Description

Elevate your industrial operations with the XL36-40 Hydraulic Scissor Lift Table, a robust, high-capacity lift solution designed for demanding material handling tasks. Whether you are loading, positioning, or transferring heavy loads, this lift table excels in delivering safe, smooth, and precise vertical movement.

With a 4,000 lb (≈ 1,814 kg) rated load capacity, the XL36-40 is engineered to handle substantial payloads—machinery parts, heavy tool assemblies, pallets, or multiple bins—in a single lift. Its 24″ × 48″ platform provides a generous work surface, giving operators flexibility to position large or irregular loads with confidence.

The hydraulic scissor mechanism raises the platform from a low starting height of about 7.25″ up to 43″, placing loads within ergonomic reach and reducing strain from lifting or bending. The hydraulic system ensures controlled, hands-free lift and descent, optimizing workflow speed and consistency.

Built tough, the XL36-40 features a welded steel scissor frame with reinforced arms, precision linkage geometry, and durable hardware to resist deflection even under heavy loads. The design often includes guide bushings or rods to maintain alignment through full travel and reduce side play, supporting stability and safety.

Mobility features include heavy-duty casters (fixed and swivel) for moving the lift table where needed, and a foot-operated brake or floor lock to firmly hold it in place during use. The low-profile base in the lowered state allows for easier loading with pallet trucks or forklifts, maximizing usability.

Designed for industrial environments, the XL36-40 is ideal for assembly lines, manufacturing floors, maintenance shops, shipping docks, and anywhere that robust, reliable lift capacity is required without sacrificing precision or safety.

Key Specifications

• Model / SKU: XL36-40

• Lift Type: Hydraulic scissor lift table

• Load Capacity: 4,000 lb (≈ 1,814 kg)

• Platform Size: 24″ (W) × 48″ (L)

• Lift Range: ~ 7.25″ (minimum) to ~ 43″ (maximum)

• Lift Mechanism: Hydraulic scissor arms with cylinder drive

• Operation: Hands-free hydraulic control (electric pump)

• Frame Construction: Welded steel with reinforced scissor geometry

• Alignment System: Guide bushings or guide rods for stable travel

• Mobility: Casters (swivel and fixed) for repositioning

• Locking System: Foot brake or floor lock for safe operation

• Base Profile (Lowered): Low clearance (~7.25″) for easy loading

• Ideal Applications: Heavy-duty lift and position work, industrial assembly, tooling movement, material staging
