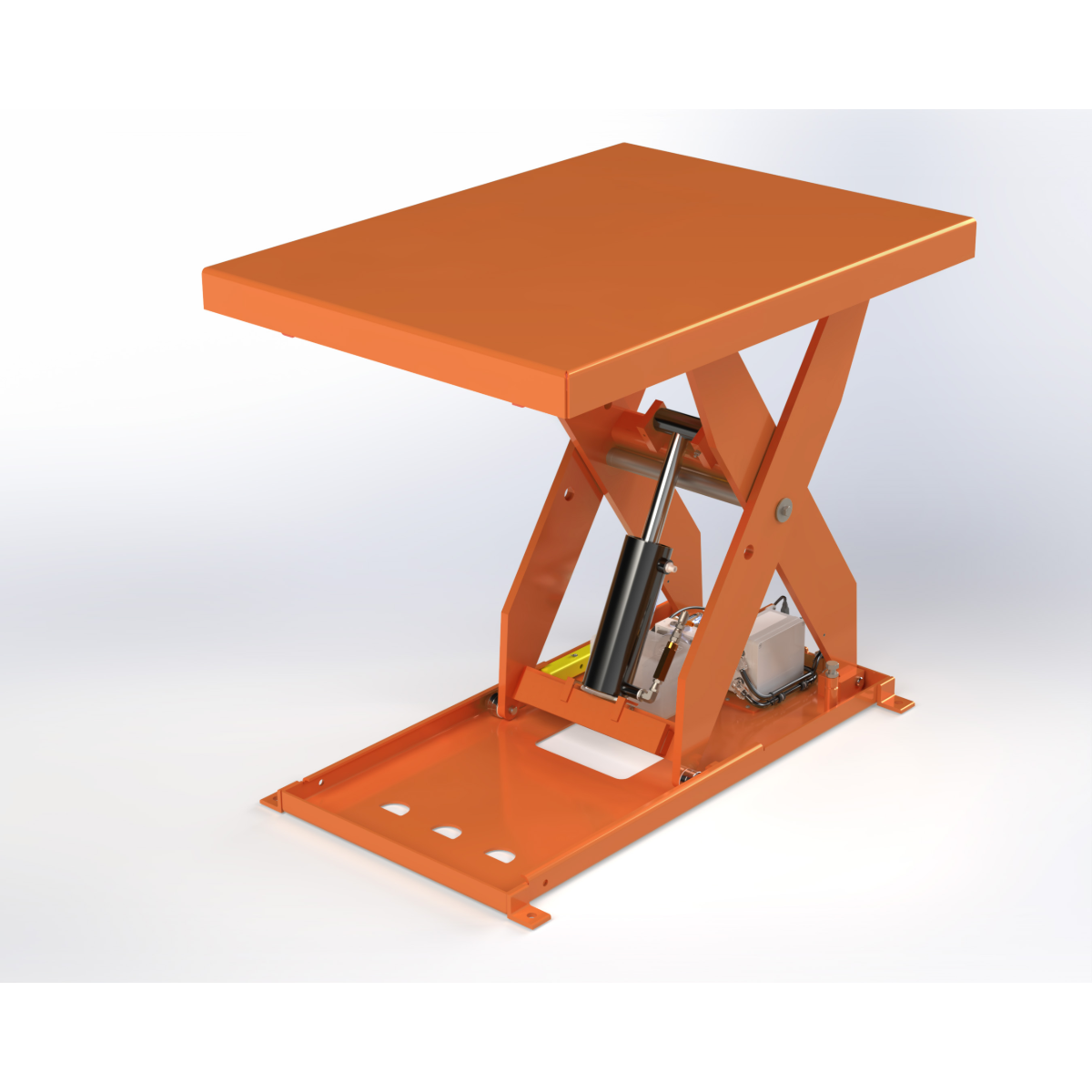

XL36-20 – A manual scissor lift table rated at 2,000 lb capacity, featuring a 24″ × 48″ platform and a lift range of approximately 9″ to 45″. Designed for powerful, hands-free vertical handling in industrial work zones.

Product Description

Meet the XL36-20 Manual Scissor Lift Table, your powerful ally for heavy load positioning, staging, and transport—without relying on electric or hydraulic systems. Built for industrial, workshop, and production environments, this lift table lets operators raise, lower, and position significant payloads safely and efficiently.

With a robust 2,000 lb (≈ 907 kg) rated capacity, the XL36-20 handles heavy parts, machinery components, crates, or assemblies with confidence. The spacious 24″ × 48″ platform provides broad support for larger or multiple items, giving you the flexibility to set up or service heavier loads in one lift. The lift stroke—from approximately 9″ (floor level) up to 45″—puts objects into ergonomic working zones, eliminating the need for excessive bending or awkward reach.

Operation is entirely manual, enabling use even in power-restricted areas. A foot-operated hydraulic pump raises the load, while an integrated release mechanism ensures controlled lowering. Because the mechanism is contained and mechanical, the system is simple, reliable, and low-maintenance. Many manual scissor tables of this capacity use thick scissor leg plates (e.g. ¾″ steel) to handle loads durably. (For reference, 2,000 lb units often incorporate heavier scissor components.) Industrial Products

Mobility is built-in. The XL36-20 can roll into place on heavy-duty casters—ideal for reconfiguring workflows or repositioning workstations. Its base remains low when collapsed, allowing for easier loading from forklifts or pallet jacks. A foot lock or floor brake engages to hold the unit steady while in use. The welded steel frame and reinforced scissor structure maintain rigidity and alignment under load, helping prevent twist or drift even at full extension.

By integrating the XL36-20 Manual Scissor Lift Table into your facility, you reduce physical strain on workers, speed up material transfers, and maintain flexibility in environments where powered lifting is not always practical. It’s a rugged, dependable choice for improving safety and productivity on the shop floor.

Specifications

• Model / SKU: XL36-20

• Type: Manual scissor lift table

• Load Capacity: 2,000 lb (907 kg)

• Platform Dimensions: 24″ (W) × 48″ (L)

• Lift Range: ~ 9″ (lowered) to ~ 45″ (raised)

• Operation: Foot pump to raise, controlled release to lower

• Frame / Structure: Welded steel construction with reinforced scissor arms

• Leg Construction: Heavy-gauge steel scissor legs (typical for high-capacity units)

• Base Profile when Lowered: Low clearance for ease of loading

• Mobility: Casters (swivel and fixed) for repositioning

• Locking / Stability: Foot-actuated lock or brake to stabilize during use

• Recommended Applications: Heavy parts staging, machine positioning, lift & align tasks, assembly support
