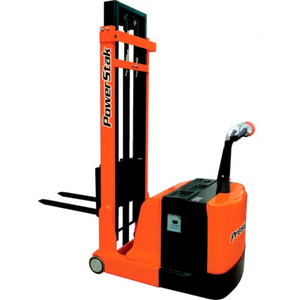

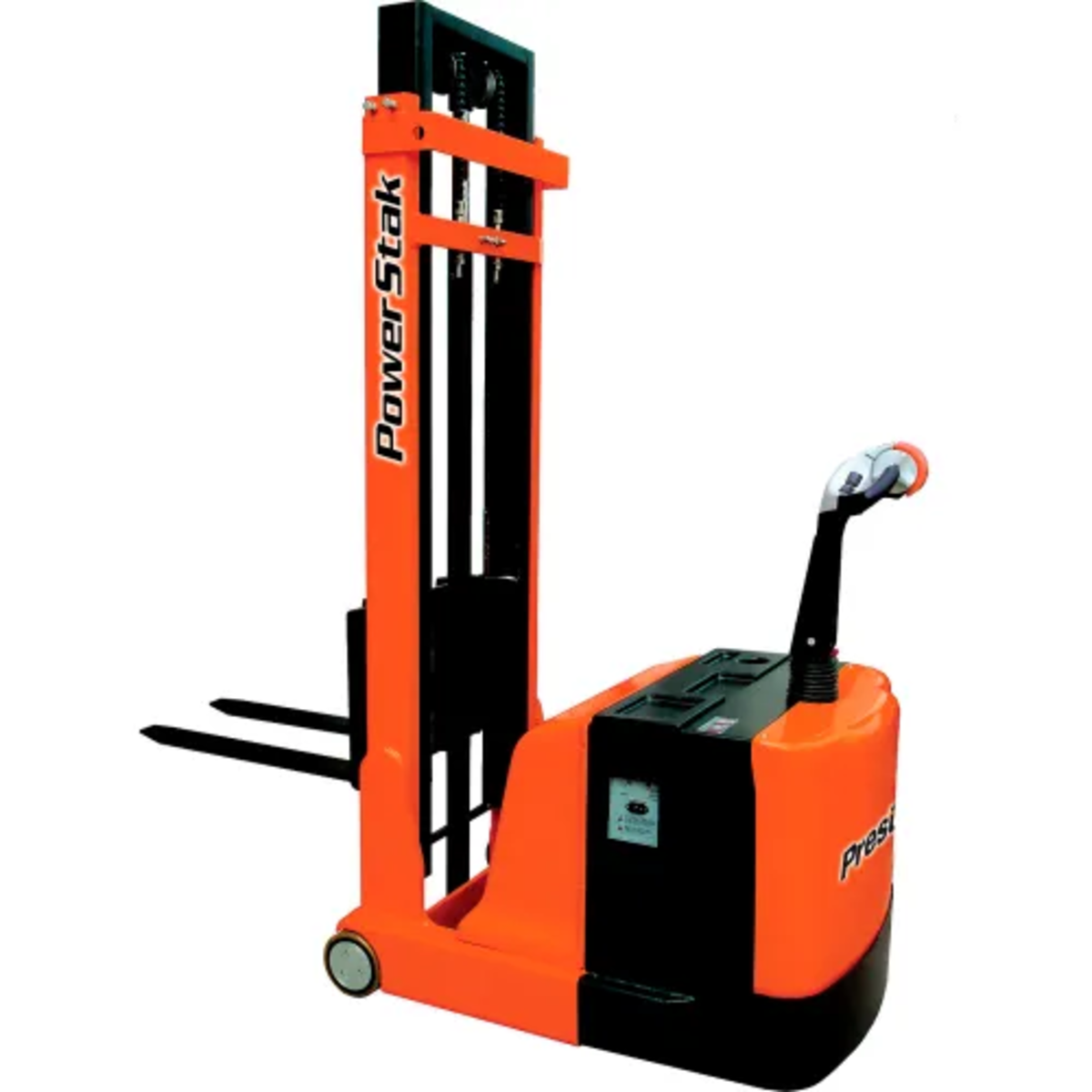

PPS1100-62-CB – A compact, fully powered counterbalance stacker with a 62-inch lift height and 1,100 lb capacity. Ideal for applications requiring open-front access or where straddle legs are not practical.

Product Description

The PPS1100-62-CB from the PPS Counterbalance Series is a versatile, fully powered stacker built for efficiency and precision in tight workspaces. Designed with an open-front counterbalance configuration, it allows for easy access to racks, machinery, and pallets where straddle legs would otherwise interfere—making it perfect for production lines, assembly stations, or warehouse operations requiring unrestricted load placement.

With a lifting capacity of 1,100 lbs (500 kg) and a 62-inch maximum lift height, this model offers reliable performance for light- to medium-duty material handling tasks. The counterbalanced design provides stability without the need for support legs, giving operators freedom to position loads directly against work surfaces or onto closed-bottom pallets. Its compact footprint ensures smooth navigation in narrow aisles or confined areas.

Powered by a 24 V DC electric system, the PPS1100-62-CB delivers consistent lifting and travel power through a durable electric drive and lift motor. The maintenance-free batteries and onboard automatic charger make it convenient for daily use, minimizing downtime and upkeep. With quiet, zero-emission operation, it’s ideal for indoor facilities where cleanliness and low noise are important.

Operators benefit from an ergonomic multi-function handle, providing easy fingertip control for lifting, lowering, and steering. Safety features like a belly reverse switch, emergency stop button, key lockout, and battery discharge indicator ensure secure and reliable operation throughout the shift. The polyurethane drive and load wheels offer smooth, non-marking travel, protecting floors while providing excellent traction and control.

Constructed from heavy-duty steel with a durable powder-coated finish, the PPS1100-62-CB is built to withstand demanding industrial use while maintaining maneuverability and balance. It’s a dependable choice for operations looking to improve workflow, reduce manual lifting, and increase productivity in compact workspaces.

Specifications

• Model / SKU: PPS1100-62-CB
• Capacity: 1,100 lbs (500 kg)
• Load Center: 24 inches
• Lift Height: 62 inches (raised fork height)
• Lowered Fork Height: Approximately 2 ¾ inches
• Fork Length: 42 inches
• Fork Width (overall): 27 inches
• Mast Type: Single-stage wide-view mast for excellent visibility
• Drive & Lift System: Fully electric, DC-powered traction and lift motors
• Power Source: 24 V DC battery system with integrated onboard charger
• Batteries: Dual 12 V maintenance-free batteries
• Overall Width: Compact counterbalance design for open-front access
• Turning Radius: Approximately 50 inches for tight-area maneuvering
• Wheel Type: Polyurethane drive and load wheels for quiet, smooth operation
• Control Handle: Ergonomic tiller with lift/lower buttons and safety reverse
• Safety Features: Emergency stop, belly reverse button, key lockout, low-voltage cutoff, battery discharge indicator
• Construction: Heavy-duty welded steel frame with powder-coated finish
• Noise Level: Low-noise operation for indoor and production environments
