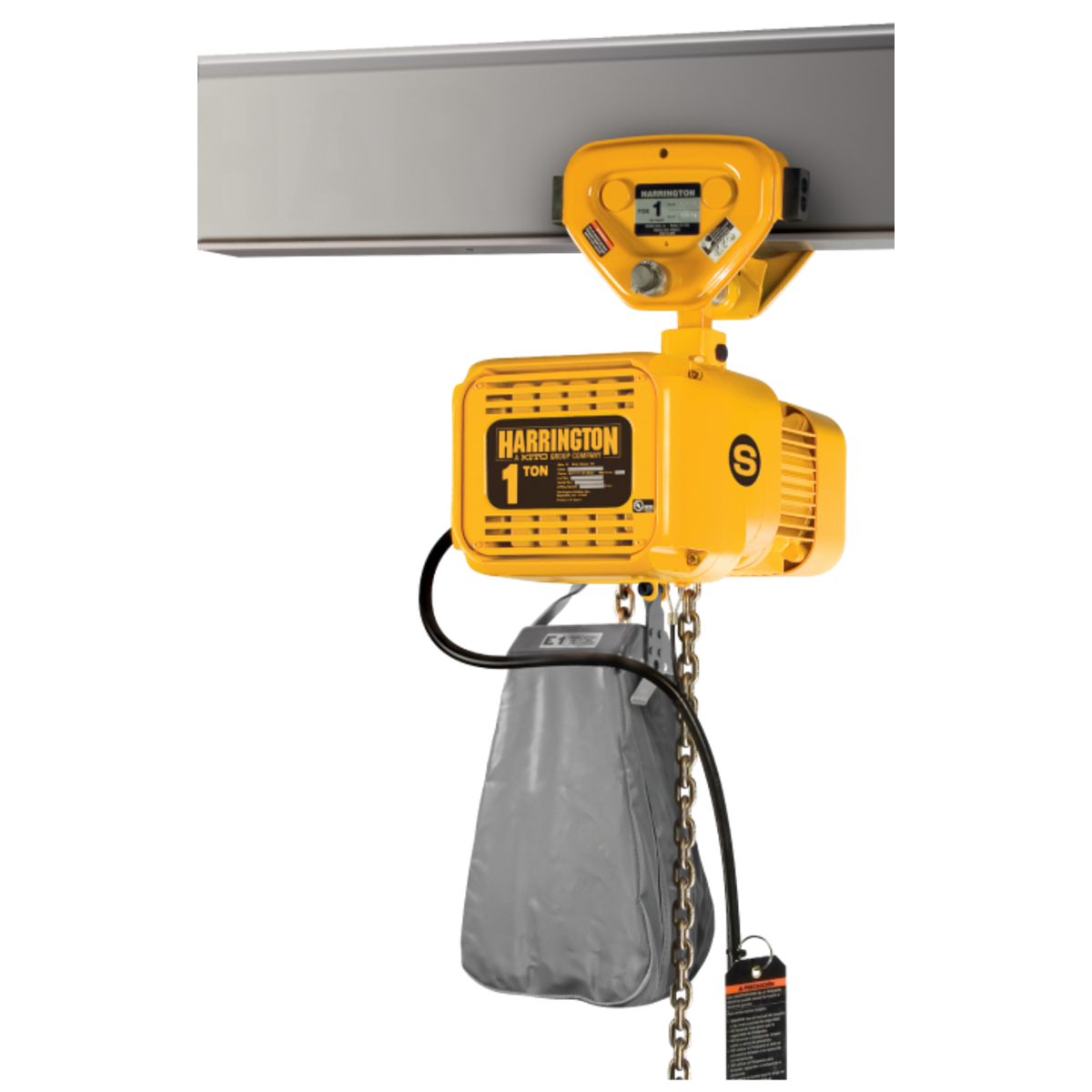

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1 Tons NERP010S Electric Chain Hoist with Push Trolley HARRINGTON

Write a Review
$5,008.64 - $5,302.42
SKU: NERP010S-10
Condition: New
Availability: In stock
Weight: 137.00 LBS
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10, 15, 20
Includes: 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed: 28 fpm
Housing Width: 14 13/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 8 5/16 in
Housing Length: 23 1/2 in
For Minimum Beam Flange Width: 2 9/32 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 14 13/16 in
Body Depth: 8 5/16 in
For Minimum Beam Height: 4 3/16 in
Body Length: 23 1/2 in
Minimum Radius Curve: 51 3/16 in
Maximum Lifting Length: 10 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 4 1/5 in
Lifting Hook Opening Width: 1 3/16 in
Minimum Retracted Length: 18 1/2 in
Load Capacity: 2,000 lb
Minimum Between Hooks: 18 1/2 in
Motor HP: 2.4 hp
Phase: 3
Standards: ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage: 208/230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 8.6 A
Number of Speeds: 1
Trolley Configuration: Push Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Material: Die Cast Aluminum
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 28 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 2 3/8 hp
Headroom: 18 1/2 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Current at Minimum Voltage: 8.6 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 4.2 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1 Tons NERP010S Electric Chain Hoist with Push Trolley HARRINGTON

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1 Tons NERP010S Electric Chain Hoist with Push Trolley HARRINGTON

$5,008.64 - $5,302.42

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1 Tons NERP010S Electric Chain Hoist with Push Trolley HARRINGTON

$5,008.64 - $5,302.42

The NERP Electric Chain Hoist with Push Trolley, model NERP010S, stands out as a vital tool for any workshop or industrial environment where efficiency and reliability are paramount. Designed to simplify the task of lifting and moving heavy loads, this electric chain hoist boasts a substantial lift capacity of 1 ton, making it suitable for a diverse range of applications, from small component handling to heavy machinery lifting.

Durability is at the core of the NERP010S construction. Crafted from robust materials, this hoist is engineered to endure the daily challenges of a work setting, ensuring consistent performance over the years. Its sturdy design means it can operate under the heaviest loads without sacrificing safety, providing peace of mind as you work.

An impressive feature of the NERP010S is its integrated push trolley. This innovation allows for seamless transportation of items, drastically reducing manual effort and minimizing the risk of lifting-related injuries. With a simple push, operators can move heavy loads with ease, enhancing workflow and overall productivity.

Versatility is another key attribute of this electric chain hoist. The NERP010S can effortlessly transition between various lifting tasks, eliminating the necessity for multiple hoists in a single workspace. Its ability to handle a wide variety of weights means it's ideal for varied tasks, allowing businesses and workshops to maximize their efficiency with just one dependable product.

Upgrade your operations with the NERP Electric Chain Hoist with Push Trolley. This exceptional hoist not only enhances productivity and safety but also streamlines heavy lifting tasks, making it an indispensable addition to any industrial or workshop setting. Embrace the efficiency and reliability of the NERP010S, and transform the way you work.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
