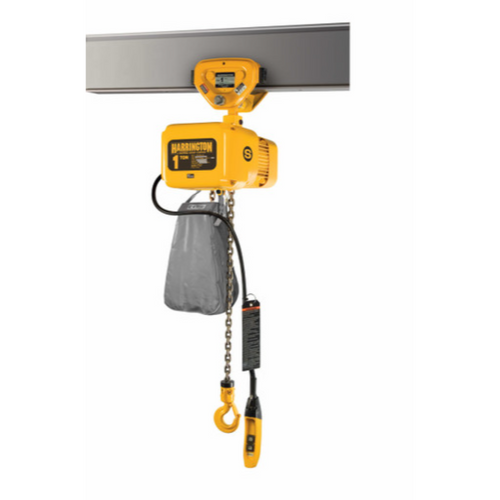

Harrington NERP Series Electric Chain Hoist with Push Trolley - 1 Ton - 10 ft Lift

Write a Review
$3,578.62 - $3,992.54
SKU: NERP010L-10
Condition: New
Availability: Subject to Availability
Weight: 121.00 LBS
Width: 23.00 (in)
Height: 35.00 (in)
Depth: 31.00 (in)
Shipping: Calculated at Checkout
Color: Yellow
Hoist Lift: 10 ft
Includes: 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed: 14 fpm
Housing Width: 14 13/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 8 5/16 in
Housing Length: 23 1/4 in
For Minimum Beam Flange Width: 2 1/4 in
For Maximum Beam Flange Width: 5 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 14 13/16 in
Body Depth: 8 5/16 in
For Minimum Beam Height: 4 3/16 in
Body Length: 23 1/4 in
Minimum Radius Curve: 51 3/16 in
Maximum Lifting Length: 10 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 4 1/5 in
Lifting Hook Opening Width: 1 3/16 in
Minimum Retracted Length: 18 1/2 in
Load Capacity: 1,000 - 2,499 lbs
Minimum Between Hooks: 18 1/2 in
Motor HP: 1.25 hp
Phase: 3
Standards: ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 4.8 A
Number of Speeds: 1
Trolley Configuration: Push Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 14 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Mount Type: Push Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 18 1/2 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Current at Minimum Voltage: 4.8 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 2.5 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Suspension / Mounting: Plain (Push) Trolley
Control: Single Speed
Capacity: 1,000 - 2,499 lbs
Lift: 10 ft
Voltage: 208/230-460-3-60
Adding to cart… The item has been added
Harrington NERP Series Electric Chain Hoist with Push Trolley - 1 Ton - 10 ft Lift

Harrington NERP Series Electric Chain Hoist with Push Trolley - 1 Ton - 10 ft Lift

$3,578.62 - $3,992.54

Harrington NERP Series Electric Chain Hoist with Push Trolley - 1 Ton - 10 ft Lift

$3,578.62 - $3,992.54

The NERP010L HARRINGTON NERP Electric Chain Hoist with Push Trolley is the perfect solution for your material handling needs. With a lifting capacity ranging from 1 Tons this powerful hoist can handle heavy loads with ease. The 10-foot lift allows for easy transportation, saving you time and effort.What sets the NERP010L Electric Chain Hoist with Push Trolley apart is its exceptional quality and seamless operation. Built to withstand even the toughest conditions, this hoist ensures long-lasting performance that you can rely on. Say goodbye to equipment breakdowns and malfunctions that slow you down.The push trolley feature of this hoist is a game-changer. It allows for easy horizontal movement, making transportation a breeze. Navigating through your workshop or job site has never been easier. No need for additional equipment or manpower, the push trolley does it all.Not only is the NERP010L Electric Chain Hoist with Push Trolley reliable, but it is also an affordable choice for your material handling needs. Enjoy efficient and effective operation without breaking the bank. This hoist and trolley combo offers a cost-effective solution that maximizes both efficiency and mobility.Invest in the NERP010L HARRINGTON NERP Electric Chain Hoist with Push Trolley and experience the ultimate convenience in material handling. Whether you're a small workshop or a large industrial facility, this hoist will streamline your operations and make moving heavy loads a breeze. Trust in its exceptional quality and unmatched performance to get the job done right. Don't settle for less when it comes to your material handling needs. Choose the NERP010L Electric Chain Hoist with Push Trolley for superior performance and durability.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
