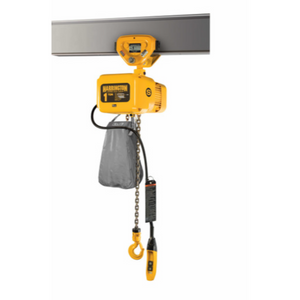

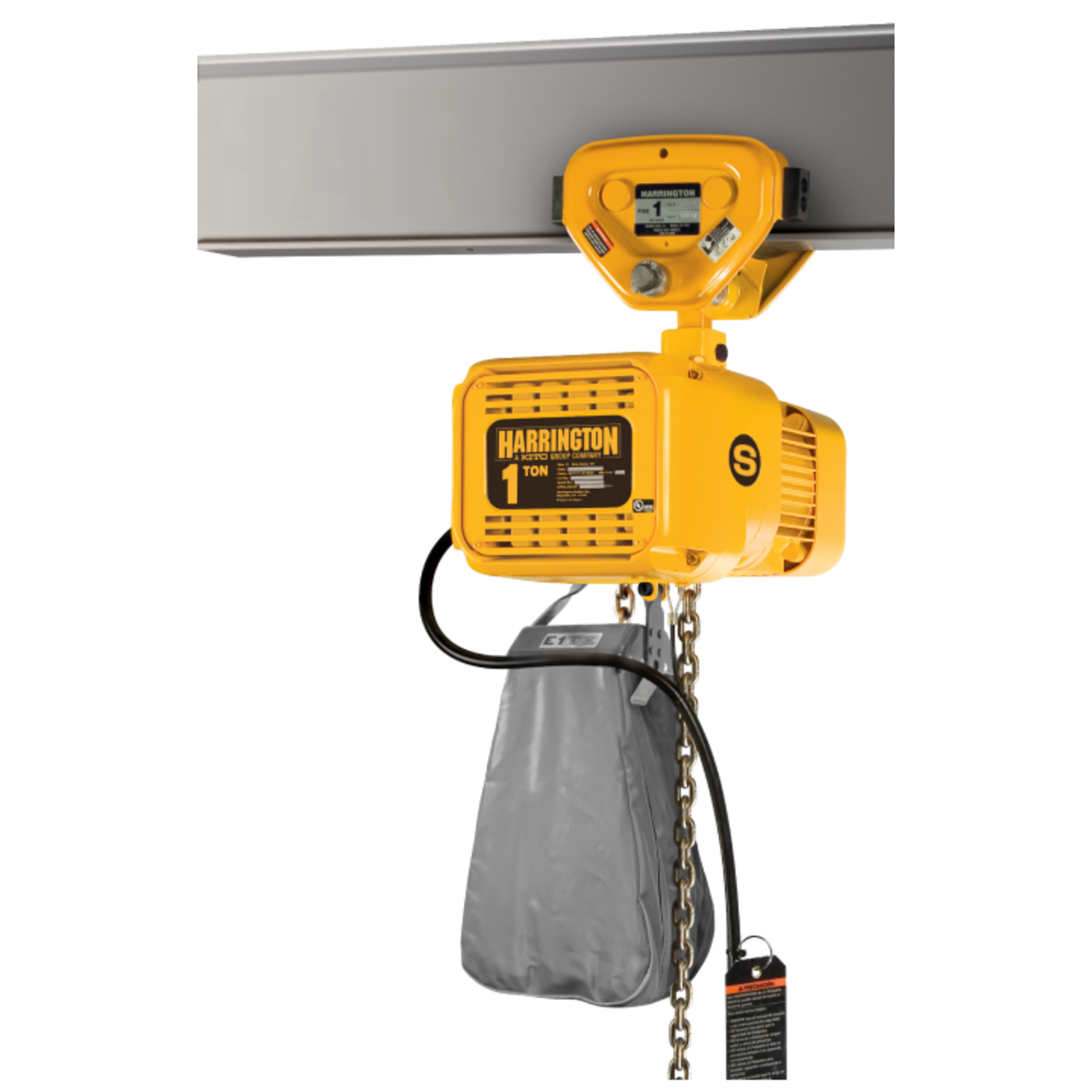

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons NERP003H Electric Chain Hoist with Push Trolley HARRINGTON

Write a Review
$4,106.50 - $4,364.44
SKU: NERP003H-10
Condition: New
Availability: In stock
Weight: 90.00 LBS
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 500 lb, 10 ft, Push Trolley=Hoist Mount=Push Trolley
Includes: 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed: 53 fpm
Housing Width: 13 11/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 7 1/2 in
Housing Length: 20 in
For Minimum Beam Flange Width: 2 1/4 in
For Maximum Beam Flange Width: 4 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 13 11/16 in
Body Depth: 7 1/2 in
For Minimum Beam Height: 3 in
Body Length: 20 in
Minimum Radius Curve: 43 5/16 in
Maximum Lifting Length: 10 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 3 1/5 in
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 16 5/16 in
Load Capacity: 500 lb
Minimum Between Hooks: 16 5/16 in
Motor HP: 1.2 hp
Phase: 3
Standards: ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage: 208/230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 4.8 A
Number of Speeds: 1
Trolley Configuration: Push Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 53 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 16 5/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 4.8 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 2.5 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons NERP003H Electric Chain Hoist with Push Trolley HARRINGTON

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons NERP003H Electric Chain Hoist with Push Trolley HARRINGTON

$4,106.50 - $4,364.44

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/4 Tons NERP003H Electric Chain Hoist with Push Trolley HARRINGTON

$4,106.50 - $4,364.44

Experience unparalleled lifting efficiency with the NERP003H HARRINGTON Electric Chain Hoist with Push Trolley, offering a remarkable 10-foot lift capacity and capable of handling loads up to 1/4 tons. This innovative hoist is tailored to meet the demands of both small workshops and large-scale operations, ensuring heavy items are moved with ease and precision.

Engineered for superior performance, the NERP003H combines robust power with a compact design, making it a versatile solution for various industrial applications. The integrated push trolley allows for seamless maneuvering, enabling operators to transport loads effortlessly throughout the workspace without the risk of strain or injury.

Safety features are paramount in the design of the NERP003H, which boasts advanced mechanisms to deliver a secure lifting experience. Built-in safeguards assure reliable operation, allowing users to focus on their tasks with confidence. When lifting heavy loads, peace of mind is non-negotiable, and this hoist guarantees just that.

Durability is a hallmark of the NERP003H, constructed from high-quality materials that endure the rigors of demanding environments. This hoist is not merely a tool but a long-term investment, engineered to withstand the test of time while enhancing productivity.

Elevate your operational efficiency with this top-tier electric chain hoist and push trolley combination from HARRINGTON. The NERP003H is designed to streamline your workflow, making it a must-have for businesses seeking reliability and excellence. Embrace convenience and affordability without compromising quality; elevate your lifting experience to unprecedented levels with the NERP003H Electric Chain Hoist with Push Trolley.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
