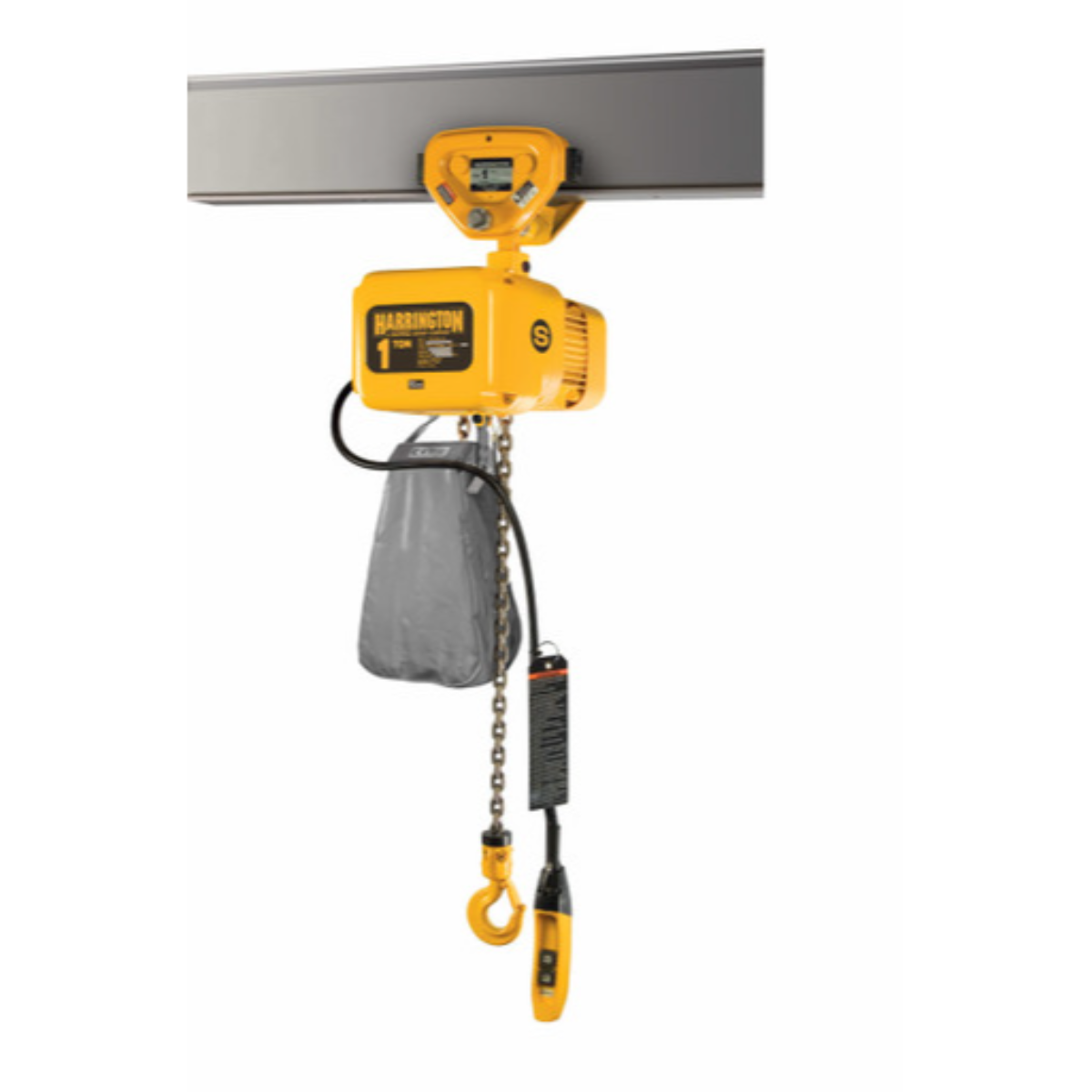

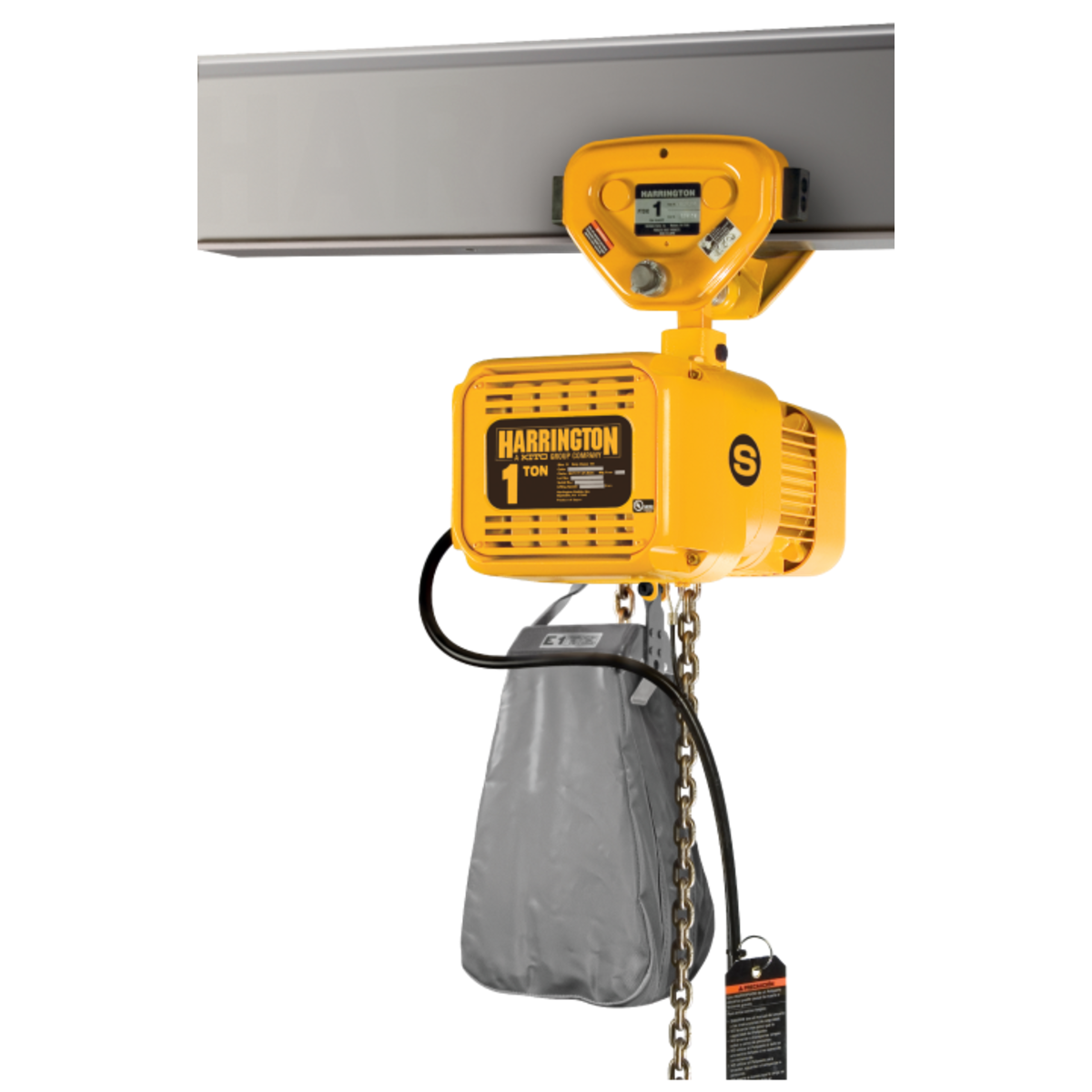

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/2 Tons NERP005L Electric Chain Hoist with Push Trolley HARRINGTON

Write a Review
$3,255.84 - $3,513.77
SKU: NERP005L-10
Condition: New
Availability: In stock
Weight: 82.00 LBS
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10, 15, 20
Includes: 10 Year Brake Warranty, Chain Container, Push Trolley, Quick Disconnect Plugs On Pendant And Power Cords
Lift Speed: 15 fpm
Housing Width: 13 11/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 7 1/2 in
Housing Length: 20 1/4 in
For Minimum Beam Flange Width: 2 1/4 in
For Maximum Beam Flange Width: 4 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 13 11/16 in
Body Depth: 7 1/2 in
For Minimum Beam Height: 4 3/16 in
Body Length: 20 1/4 in
Minimum Radius Curve: 43 5/16 in
Maximum Lifting Length: 10 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 3 1/5 in
Lifting Hook Opening Width: 1 3/32 in
Minimum Retracted Length: 16 5/16 in
Load Capacity: 1,000 lb
Minimum Between Hooks: 17 1/8 in
Motor HP: 0.75 hp
Phase: 3
Standards: ANSI/ASME B30.16, ASME HST-1M, NFPA 70, RoHS Compliant, UL 1340
Voltage: 208/230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 3.4 A
Number of Speeds: 1
Trolley Configuration: Push Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Extreme Duty Motor, Push Trolley, Smart Brake Technology
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 15 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Programmable by External Controls=Mount Type=Push Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 3/4 hp
Headroom: 17 3/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 1,000 lb
Current at Minimum Voltage: 3.4 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 1.7 A
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/2 Tons NERP005L Electric Chain Hoist with Push Trolley HARRINGTON

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/2 Tons NERP005L Electric Chain Hoist with Push Trolley HARRINGTON

$3,255.84 - $3,513.77

NERP Electric Chain Hoist with Push Trolley Lift-Capacity 1/2 Tons NERP005L Electric Chain Hoist with Push Trolley HARRINGTON

$3,255.84 - $3,513.77

The NERP Electric Chain Hoist with Push Trolley stands as the pinnacle of innovation in load transportation, offering an effortless solution for managing heavy weights in both industrial and workshop settings. This robust hoist boasts a capacity of 1/2 Tons and a lift height of 10 feet, tailored to meet a diverse range of lifting requirements, helping to streamline operations and enhance productivity.

Constructed from high-quality materials, the NERP005L ensures long-lasting performance and resilience under heavy-duty use. Its reliable components are designed specifically for optimal efficiency, making it an indispensable asset for professionals seeking dependable lifting solutions. When combined with the PT push trolley, this hoist eliminates the strain of manual lifting, allowing users to move heavy loads with remarkable ease, thereby minimizing the risk of workplace injuries and elevating safety standards.

Ease of operation is a key feature of the NERP Electric Chain Hoist. Its intuitive controls and ergonomic design facilitate straightforward maneuverability, allowing users to manage loads without hassle. The installation process is equally simple, empowering teams to enhance their workflow swiftly and efficiently. With its powerful lifting capabilities and user-friendly construction, this hoist and trolley combination caters perfectly to the fast-paced demands of various work environments.

Embrace the advantages that the NERP005L offers and transform your workspace into a hub of efficiency and safety. By investing in this superior hoisting solution, you not just upgrading equipment enhancing overall workplace dynamics, promoting productivity, and ensuring a safer workspace for everyone involved. Experience reliable performance and exceptional durability with the NERP Electric Chain Hoist and make your operations seamless today.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
