K600-SYS Wireless Crane, Hoist & Trolley Control System

The K600-SYS Wireless Control System is a durable and high-performance 3-motion, 1-step radio remote control solution designed for multi-function lifting equipment, bridge cranes, hoists, and trolley applications. Engineered for industrial material handling environments, the K600-SYS delivers dependable wireless operation, enhanced safety, and simplified control for overhead lifting systems.

Ideal for crane operators, maintenance facilities, warehouses, and manufacturing plants, the K600-SYS allows efficient remote operation of multiple crane motions including bridge travel, hoist lifting, and trolley movement. The system operates on advanced 433MHz multi-frequency technology with automatic frequency selection, helping minimize signal interference while maintaining reliable communication in busy industrial settings.

Its integrated bi-directional communication system continuously exchanges operational data between the transmitter and receiver, giving operators improved awareness of system status and helping reduce unexpected downtime. The rugged PA6 glass-filled housing with protective shock bumpers is built to withstand demanding industrial environments where durability and reliability are essential.

The K600-SYS features an IP65-rated enclosure that helps protect internal components from dust, dirt, and moisture, making it suitable for both indoor and outdoor applications. Installation is simplified with auto power sensing capability from 24–240 VAC and 24–160 VDC, allowing compatibility with a wide range of crane and hoist systems without complicated electrical adjustments.

Safety remains a priority with double safety stop MLC relays and bright interactive system status LEDs that provide operators and technicians with quick visual system feedback. With a typical operating range of up to 300 feet (100 meters), operators can maintain safer positioning and better visibility while managing lifting operations remotely.

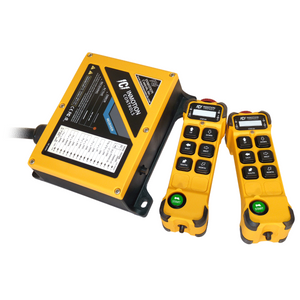

Each K600-SYS package includes one receiver unit, two transmitters with legend sets, batteries, mounting hardware, and installation instructions, providing a complete wireless crane control solution ready for installation.

Whether upgrading outdated pendant controls or improving operational efficiency on new equipment, the K600-SYS delivers reliable wireless control, industrial-grade durability, and smooth multi-motion performance for demanding material handling applications.

Specifications

System Features

• SKU: K600-SYS
• Control Type: 3 Motion, 1 Step
• Applications: Bridge cranes, hoists, trolley systems, and multi-function lifting equipment
• Frequency: 433MHz multi-frequency with auto selection
• Communication: Bi-directional communication
• Safety Features: Double safety stop MLC relays
• Status Indicators: Interactive system status LEDs

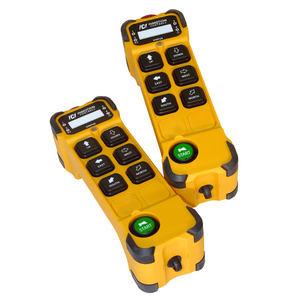

Transmitter (K200–K600)

• Frequency: 433MHz
• Modulation Method: 4 FSK
• Typical Operating Range: 300 ft. (100M)
• Power Supply: 2 × 1.5V AA batteries
• Average Power Consumption: 16mA @ 3VDC
• Operating Temperature: -40°F to +149°F
• Protection Degree: IP65
• Housing Material: PA6 (30% glass filled)
• Dimensions: 193mm × 57mm × 51mm

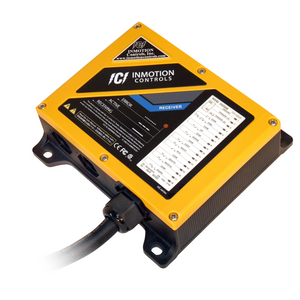

Receiving Unit (K200–K600)

• Control System: PLL
• Power Supply: 24–240 VAC / 24–160 VDC auto-sensing
• Operating Temperature: -40°F to +149°F
• Protection Degree: IP65
• Housing Material: PA6 (30% glass filled)
• Dimensions: 190mm × 184mm × 64mm
• Mounting: Single bolt installation

System Includes

• 1 receiving unit
• 2 transmitters
• Legend sets
• Batteries
• Mounting hardware
• Installation instructions
