K606-SYS Wireless Crane, Hoist & Trolley Control System

The K606-SYS Wireless Control System is a powerful and dependable 3-motion, 2-step radio remote control solution engineered for bridge cranes, hoists, trolley systems, and multi-function material handling equipment. Designed for industrial operators who require precise multi-speed control and reliable wireless performance, the K606-SYS improves operational efficiency while enhancing workplace safety in demanding lifting environments.

With advanced 433MHz multi-frequency technology and automatic frequency selection, the K606-SYS helps minimize signal interference and maintain stable communication even in facilities operating multiple wireless systems. The integrated bi-directional communication system continuously exchanges information between the transmitter and receiver, providing operators with improved system awareness and reliable operational feedback during crane and hoist movement.

The K606-SYS is ideal for applications requiring precise bridge travel, trolley positioning, and hoist lifting control. Its 2-step motion capability allows operators to achieve smoother starts, improved load positioning, and more accurate material handling performance compared to standard single-speed controls.

Built for industrial durability, the system features a rugged PA6 glass-filled housing with protective shock bumpers designed to withstand harsh manufacturing, warehouse, fabrication, and maintenance environments. The IP65-rated enclosure protects internal components from dust, moisture, and debris, making the K606-SYS suitable for both indoor and outdoor use.

Installation is simplified with auto power sensing from 24–240 VAC and 24–160 VDC, allowing compatibility with a wide range of crane and hoist systems without complex electrical configuration. For enhanced operator safety, the K606-SYS includes double safety stop MLC relays and bright interactive system status LEDs that provide clear visual indication of system operation and diagnostics.

Each complete K606-SYS package includes one receiving unit, two transmitters with legend sets, batteries, mounting hardware, and installation instructions, providing a complete wireless crane control solution ready for installation.

Whether upgrading from traditional pendant controls or modernizing an existing overhead crane system, the K606-SYS delivers rugged construction, dependable wireless communication, and precise multi-motion control for demanding industrial lifting applications.

Specifications

System Features

• SKU: K606-SYS
• Control Type: 3 Motion, 2 Step
• Applications: Bridge cranes, hoists, trolley systems, and multi-function equipment
• Frequency: 433MHz multi-frequency with auto selection
• Communication: Bi-directional communication
• Safety Features: Double safety stop MLC relays
• Status Indicators: Interactive system status LEDs

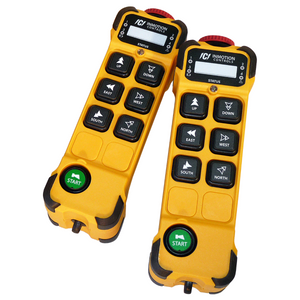

Transmitter (K200–K600)

• Frequency: 433MHz
• Modulation Method: 4 FSK
• Typical Operating Range: 300 ft. (100M)
• Power Supply: 2 × 1.5V AA batteries
• Average Power Consumption: 16mA @ 3VDC
• Operating Temperature: -40°F to +149°F
• Protection Degree: IP65
• Housing Material: PA6 (30% glass filled)
• Dimensions: 193mm × 57mm × 51mm

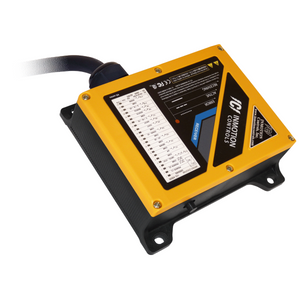

Receiving Unit (K200–K600)

• Control System: PLL
• Power Supply: 24–240 VAC / 24–160 VDC auto-sensing
• Operating Temperature: -40°F to +149°F
• Protection Degree: IP65
• Housing Material: PA6 (30% glass filled)
• Dimensions: 190mm × 184mm × 64mm
• Mounting: Single bolt installation

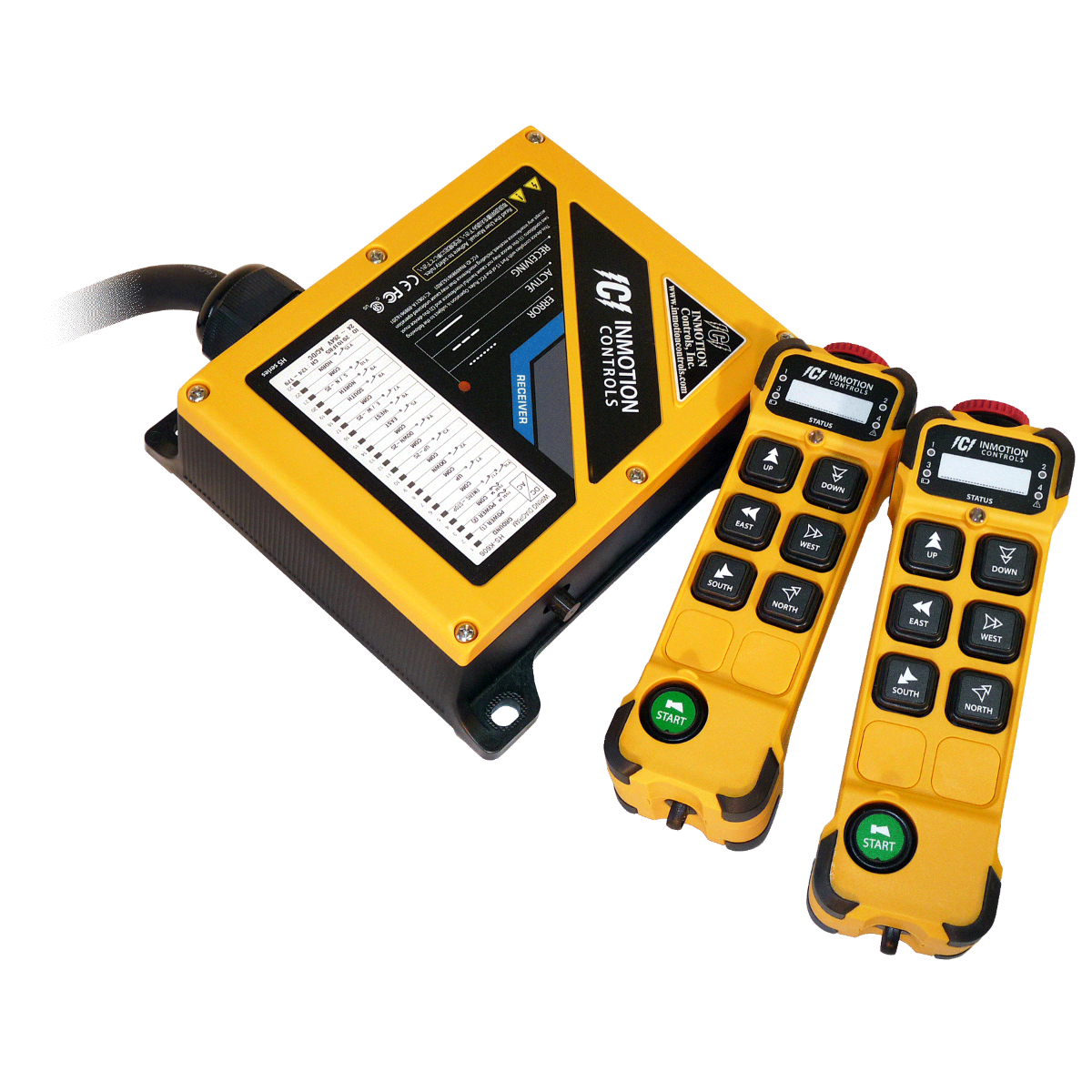

System Includes

• 1 receiving unit
• 2 transmitters
• Legend sets
• Batteries
• Mounting hardware
• Installation instructions
