Harrington 5-Ton 50' Span/33' Lift Top Running Single Girder Crane Assembly – C-1367758
The C-1367758 is a 5-ton, top-running single-girder crane designed for industrial applications that require reliability, safety, and smooth operation. Rated for 5 US tons with a 50-foot span, this system includes a W24x131 bridge beam, Series 3 motorized end trucks, and a VFD-driven wire rope hoist offering dual-speed functionality.
Designed and constructed to meet CMAA Class C duty requirements, this crane provides efficient lifting and traversing for moderate service applications such as production, maintenance, or general material handling environments.
Technical Specifications:
Crane Type Top Running, Single Girder
Service Class CMAA Class C
Rated Capacity 5 US Tons
Span 50 ft – 0 in
Paint Finish Standard Harrington Yellow
Assembly Fully Assembled at Factory
Rail Type 30# ASCE (1.68" Head Width)
Electrical Specifications:
Main Power460V / 3-Phase / 60Hz
Control Voltage 110VAC
System Amperage 20.1 A
Control Panel P1V4340B30R11H1 (VFD, Plug & Play)
Disconnect Fuse Size 30 Amps
Enclosure Rating NEMA 4
Speeds & Motion:
FunctionSpeed (fpm)
Bridge Traversing 8–80 (adjustable via VFD)
Trolley Traversing 66 / 11 (dual speed)
Lifting Speed 26 / 4.3 (dual speed; adjustable with VFD)
No Load Lift Speed 39 (fpm)
Hoist & Trolley:
ModelRYU050B33HDD4
Capacity 5 Ton
Lift Height 33 ft
Power Supply 460V / 3Ph / 50/60Hz
Max Amperage 19.7 A
Flange Range 4.93 – 13.78 in (12.9 in Nominal)
Net Weight 1,092 lbs (Hoist + Trolley)
Certifications UL1340 / CSA 22.2 No. 33
Includes Crane Connection Kit
Bridge Beam Assembly:
ModelW24x131
Material Grade ASTM A572 G50
Beam Weight 6,864.79 lbs
Notched Beam Standard
End Trucks:
ModelTMS3-0560 (Series 3 Motorized)
Rated Capacity 5 Ton
Wheel Diameter 8.27 in
Wheel Hardness 160–220 BHN
Motor Output 0.5 HP each / 1.1 A each
Weight per Truck 371.5 lbs
Control & Festooning System:
PendantNEMA 4, 8-Button L-Series
Pendant Drop 33 ft (beam bottom to pendant bottom)
Motion Control Dual Speed (Bridge / Trolley / Hoist)
Festoon Type Flat Cable; Plug & Play
System Voltage 460V / 3Ph / 60Hz
System Amperage 19 A
Included Components:
- Bridge Beam Assembly (W24x131)
- Series 3 Top Running End Trucks (TMS3-0560)
- RYU050B33HDD4 Electric Wire Rope Hoist (33 ft lift)
- Crane Control Panel (VFD, Plug & Play)
- Crane Wiring with NEMA 4 Liquidtight Conduit
- Roving Pendant Station with 8-Button Control
- Flat Cable Festoon System
- Runway Collector Bracket

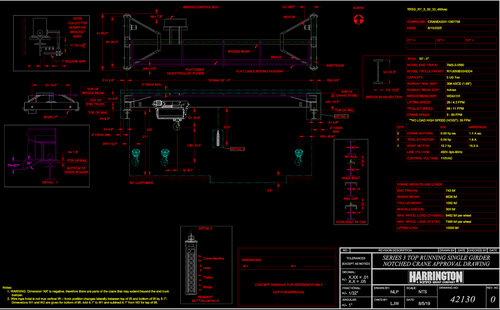

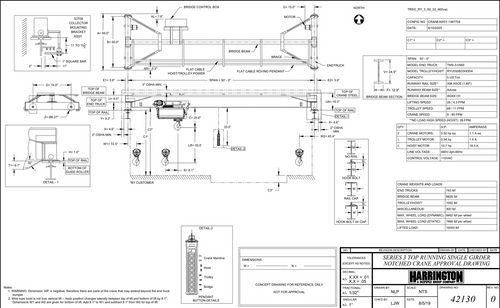

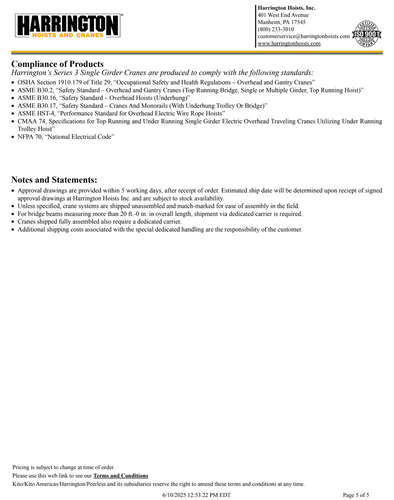

Compliance & Standards:
This crane system is built in accordance with the following standards:
- OSHA 29 CFR 1910.179
- ASME B30.2, B30.16, B30.17
- ASME HST-4
- CMAA 74
- NFPA 70
Additional Notes:
- Approval drawings are provided within 5 working days after receipt of the order. The estimated ship date will be determined upon receipt of signed approval drawings at Harrington Hoists Inc. and is subject to stock availability.
- Unless specified, crane systems are shipped unassembled and match-marked for ease of assembly in the field.
- For bridge beams measuring more than 20 ft.-0 in. in overall length, shipment via a dedicated carrier is required.
- Cranes shipped fully assembled also require a dedicated carrier.
- Additional shipping costs associated with special dedicated handling are the customer's responsibility.
