3' Guard Rail“ Heavy Duty
Write a Review
HANDLE IT
3' Guard Rail“ Heavy Duty
3' Guard Rail“ Heavy Duty
GR-3 Warehouse Guard Rail System
The GR-3 Warehouse Guard Rail System is a rugged industrial safety solution engineered to protect personnel, equipment, storage systems, and facility infrastructure in high-traffic warehouse and manufacturing environments. Designed to create a strong physical and visual barrier between pedestrian areas and powered industrial vehicle traffic, the GR-3 helps reduce workplace accidents, minimize equipment damage, and improve operational safety throughout your facility.
Constructed from premium structural steel, the GR-3 guard rail system is built for long-lasting durability and dependable impact resistance. Rated to withstand impacts up to 10,000 lbs at 4 mph, this heavy-duty warehouse barrier system is ideal for protecting walkways, workstations, machinery, storage racks, and loading areas from accidental collisions involving forklifts, pallet jacks, carts, and other material handling equipment. Its highly visible design also helps direct traffic flow and reinforces safer workplace practices.
The GR-3 is stocked in rail lengths ranging from 2 feet to 10 feet, making it easy to configure protection for virtually any industrial layout. Customers can choose from single-high 18-inch columns for lower-level impact protection or double-high 43-inch columns for enhanced coverage in high-risk areas. Flexible mounting configurations€”including center-mounted, offset-mounted, and corner-mounted options€”allow the system to adapt to unique facility requirements and installation conditions.
Designed with versatility in mind, the GR-3 features a universal 4-way mounting system that simplifies installation, modifications, and future expansions. Rails are available in both standard bolted configurations for permanent protection and lift-out rail options for areas requiring quick access or changing operational workflows. Every GR-3 system includes all required installation hardware, including anchors, connecting bolts, and end caps, helping streamline setup and reduce installation time.

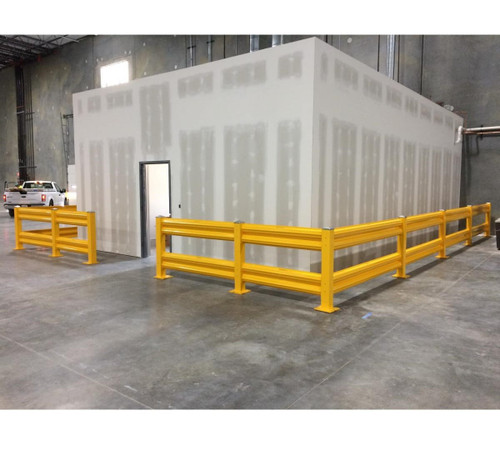

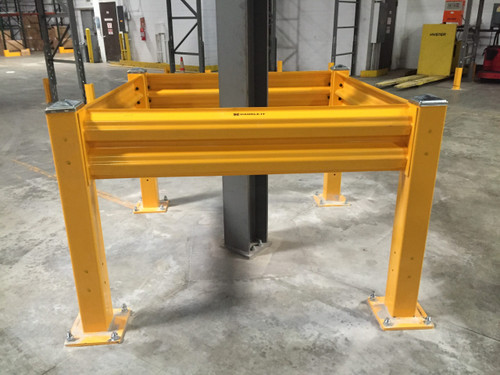

The GR-3 Warehouse Guard Rail System is commonly installed in pedestrian walkways, around sensitive machinery, in-plant offices, rack protection zones, and shipping and receiving areas. Whether you are focused on improving OSHA-conscious workplace safety or protecting valuable assets from costly impact damage, the GR-3 delivers reliable industrial-grade performance built for demanding applications.
Specifications
- SKU: GR-3
- Product Type: Industrial warehouse guard rail system
- Material: Heavy-duty structural steel
- Impact Rating: 10,000 lbs at 4 mph
- Available Rail Lengths: 2€² to 10€²
- Column Height Options:
- Single-high: 18€³
- Double-high: 43€³
- Mounting Configurations: Center-mounted, Offset-mounted, or Corner-mounted
- Mounting Style: Universal 4-way mounting system
- Rail Options: Standard bolted rails or removable lift-out rails
- Included Hardware: Anchors, connecting bolts, caps, and installation hardware
- Common Applications: Pedestrian safety barriers, rack protection, machinery protection, warehouse traffic control, loading docks, and shipping & receiving areas
Handle It Inc. provides a robust warranty from the delivery date, covering defects in materials and workmanship, provided that maintenance guidelines in the owner"s manual are followed and usage limits are not exceeded. See chart for list of products and length of warranty. Throughout the warranty period, Handle It Inc. will, at its discretion, repair or replace any defective components.
Length of Warranty
- Impact Protection Products: 3 Years
- Semi-Automatic Pallet Wrappers (SWM-SA): 3 Years
- Mobile Robot Series (SWM-MR): 2 Years
- Rotating Arm Series (SWM-RA): 3 Years
- Semi-Automatic Orbital Wrappers (OWM-SA): 3 Years
- Fully Automatic Pallet Wrappers (SWM-FA): 2 Years
- Fully Automatic Orbital Wrappers (OWM-FA): 2 Years
- Pallet Strapping Systems Horizontal/Vertical (PSM-FA): 2 Years
- Pallet Strapping Head & Track: 1 Year
- Stretch Hooder (SH-CORE, SH-MAX): 2 Years
*Parts and Components Only, Does Not Include Labor Expenses
Exclusions: Wear parts such as e.g., belts, fuses, light bulbs, circuit breakers, brakes, motor brushes, bearings, slip rings, wheels, rollers etc. are excluded from this warranty. Proof of purchase is required for the warranty and is non-transferrable. The shipping cost for returning defective components is the responsibility of the buyer and the shipment must be accompanied by an RMA number. The shipping cost to ship the replacement component to the buyer is the responsibility of Handle It Inc. This limited warranty does not cover labor expenses for removal or reinstallation of components.
This limited warranty does not cover damage caused by foreign objects, or damage resulting from adverse environmental conditions such as: water, lightning strikes, temperatures outside of listed range, or power surges. It also excludes coverage for damage due to negligence, accidents, improper use, abuse, misuse, exceeding rated capacities, failure to adhere to operating instructions, or unauthorized alterations to the product. For alterations to be covered, written authorization from Handle It Inc. is required.
Dealers and/or end-users are responsible for ensuring that assembly and start-up procedures adhere strictly to the manufacturer"s guidelines. Unauthorized alterations or modifications to the equipment, without explicit approval from an HII representative, can adversely affect performance, pose safety risks, and potentially void the warranty. Additionally, failure to follow these guidelines during assembly or start-up may also void the warranty. Proper training for personnel and strict adherence to protocols are essential to minimize the risk of improper installation, which can lead to operational issues and damage to the equipment.
