5' Guard Rail“ Heavy Duty
Write a Review
HANDLE IT
5' Guard Rail“ Heavy Duty
5' Guard Rail“ Heavy Duty

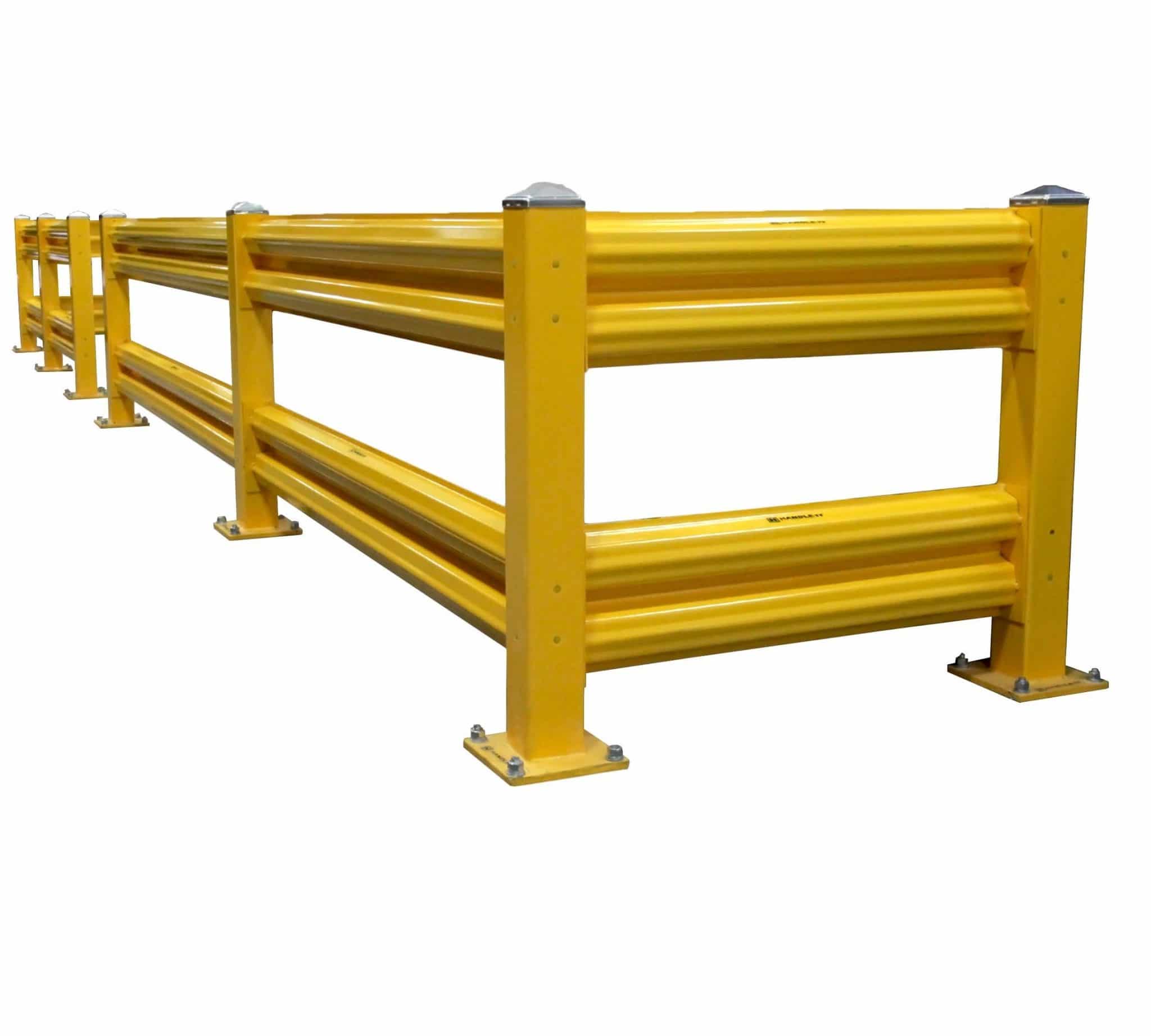

GR-5 Warehouse Guard Rail System
The GR-5 Warehouse Guard Rail System is a durable industrial safety barrier engineered to provide maximum protection for employees, equipment, and facility infrastructure in busy warehouse and manufacturing environments. Designed to create a clear physical and visual separation between pedestrian walkways and powered industrial vehicle traffic, the GR-5 helps reduce workplace accidents, minimize equipment damage, and improve overall operational efficiency.
Manufactured from high-quality structural steel, the GR-5 guard rail system is built to perform in demanding industrial settings where durability and impact resistance are essential. Rated to withstand impacts up to 10,000 lbs at 4 mph, this heavy-duty warehouse barrier system helps protect against collisions involving forklifts, pallet jacks, carts, and other material handling equipment. Its rugged construction and high-visibility design support safer traffic flow while helping facilities maintain OSHA-conscious workplace safety standards.
The GR-5 is stocked in multiple rail lengths from 2 feet to 10 feet, allowing customers to customize protection for virtually any application or facility layout. Available with both single-high 18-inch columns and double-high 43-inch columns, the system can be configured to provide varying levels of impact protection based on operational requirements. Flexible mounting configurations€”including center-mounted, offset-mounted, and corner-mounted options€”make the GR-5 adaptable to warehouses, distribution centers, loading docks, and production facilities.
For added convenience and flexibility, the GR-5 features a universal 4-way mounting system that simplifies installation and future facility modifications. Customers can choose between standard bolted rails for permanent safety barriers or lift-out rails for quick access to restricted areas and evolving workflow requirements. Every system includes all required installation hardware, including anchors, connecting bolts, and end caps for a secure and complete installation.

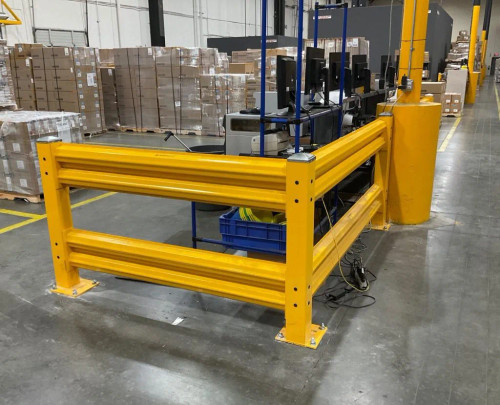

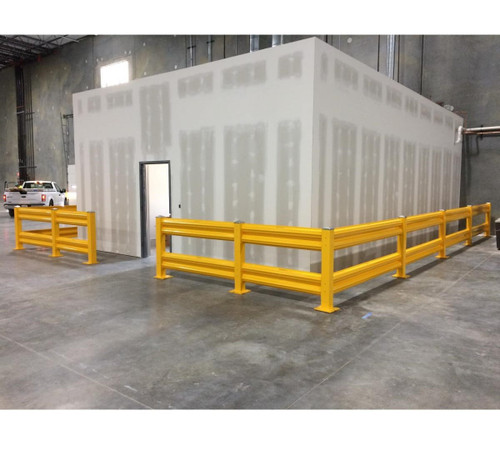

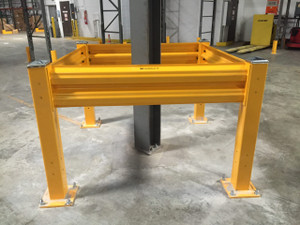

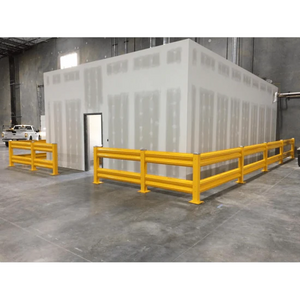

The GR-5 Warehouse Guard Rail System is commonly installed in pedestrian walkways, around sensitive machinery, in-plant offices, rack protection zones, and shipping and receiving areas. Whether you are protecting employees, organizing warehouse traffic, or safeguarding valuable equipment and infrastructure, the GR-5 delivers reliable industrial-grade protection designed for long-term performance.
Specifications
- SKU: GR-5
- Product Type: Heavy-duty warehouse guard rail system
- Material: Structural steel construction
- Impact Rating: 10,000 lbs at 4 mph
- Available Rail Lengths: 2€² to 10€²
- Column Height Options:
- Single-high: 18€³
- Double-high: 43€³
- Mounting Configurations: Center-mounted, Offset-mounted, or Corner-mounted
- Mounting Style: Universal 4-way mounting system
- Rail Options: Standard bolted rails or removable lift-out rails
- Included Hardware: Anchors, connecting bolts, caps, and installation hardware
- Common Applications: Pedestrian walkways, machinery protection, rack protection, warehouse traffic control, loading docks, and shipping & receiving areas
Handle It Inc. provides a robust warranty from the delivery date, covering defects in materials and workmanship, provided that maintenance guidelines in the owner"s manual are followed and usage limits are not exceeded. See chart for list of products and length of warranty. Throughout the warranty period, Handle It Inc. will, at its discretion, repair or replace any defective components.
Length of Warranty
- Impact Protection Products: 3 Years
- Semi-Automatic Pallet Wrappers (SWM-SA): 3 Years
- Mobile Robot Series (SWM-MR): 2 Years
- Rotating Arm Series (SWM-RA): 3 Years
- Semi-Automatic Orbital Wrappers (OWM-SA): 3 Years
- Fully Automatic Pallet Wrappers (SWM-FA): 2 Years
- Fully Automatic Orbital Wrappers (OWM-FA): 2 Years
- Pallet Strapping Systems Horizontal/Vertical (PSM-FA): 2 Years
- Pallet Strapping Head & Track: 1 Year
- Stretch Hooder (SH-CORE, SH-MAX): 2 Years
*Parts and Components Only, Does Not Include Labor Expenses
Exclusions: Wear parts such as e.g., belts, fuses, light bulbs, circuit breakers, brakes, motor brushes, bearings, slip rings, wheels, rollers etc. are excluded from this warranty. Proof of purchase is required for the warranty and is non-transferrable. The shipping cost for returning defective components is the responsibility of the buyer and the shipment must be accompanied by an RMA number. The shipping cost to ship the replacement component to the buyer is the responsibility of Handle It Inc. This limited warranty does not cover labor expenses for removal or reinstallation of components.
This limited warranty does not cover damage caused by foreign objects, or damage resulting from adverse environmental conditions such as: water, lightning strikes, temperatures outside of listed range, or power surges. It also excludes coverage for damage due to negligence, accidents, improper use, abuse, misuse, exceeding rated capacities, failure to adhere to operating instructions, or unauthorized alterations to the product. For alterations to be covered, written authorization from Handle It Inc. is required.
Dealers and/or end-users are responsible for ensuring that assembly and start-up procedures adhere strictly to the manufacturer"s guidelines. Unauthorized alterations or modifications to the equipment, without explicit approval from an HII representative, can adversely affect performance, pose safety risks, and potentially void the warranty. Additionally, failure to follow these guidelines during assembly or start-up may also void the warranty. Proper training for personnel and strict adherence to protocols are essential to minimize the risk of improper installation, which can lead to operational issues and damage to the equipment.
