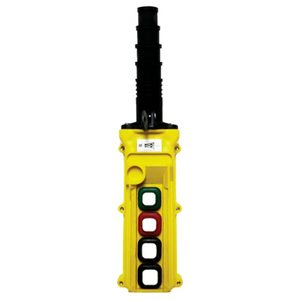

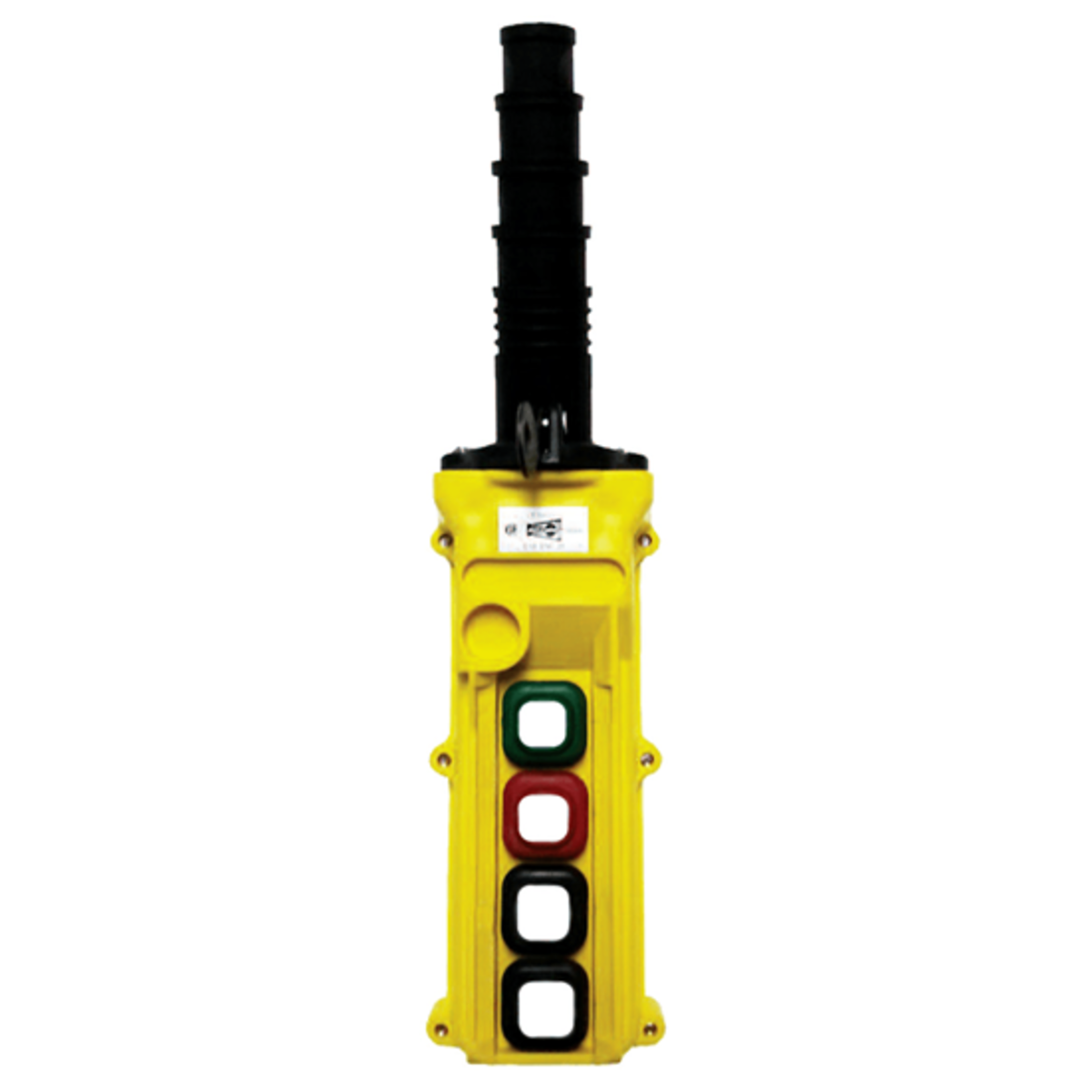

Duct-O-Wire L Series Pendant Push Button Station, 4-Button, Slim Profile, Two Speed
Duct-O-Wire L Series Pendant Push Button Station, 4-Button, Slim Profile, Two Speed

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Duct-O-Wire L Series Pendant Push Button Station, 4-Button, Slim Profile, Two Speed

Write a Review
$171.00
$106.88
(You save $64.12 )
SKU: L4-S-2
Availability: Subject to Availability
Weight: 0.64 LBS
Width: 3.13 (in)
Height: 13.25 (in)
Depth: 2.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Duct-O-Wire L Series Pendant Push Button Station, 4-Button, Slim Profile, Two Speed

Duct-O-Wire L Series Pendant Push Button Station, 4-Button, Slim Profile, Two Speed

$171.00
$106.88
(You save $64.12 )
Description

The Duct-O-Wire L Series L4-S-2 Pendant Push Button Station is the ideal control solution for those seeking reliability and precision in industrial operations. Perfectly designed for demanding environments, this pendant station ensures seamless operation of overhead cranes, hoists, monorails, and various material handling equipment.

Crafted for dual-speed control, the L4-S-2 model is equipped with a compact 4-button shallow enclosure that enables controlled motion across two axes—commonly Up/Down and Forward/Reverse or Left/Right. This refined control system empowers operators with fine-tuned speed regulation, enhancing productivity and operational efficiency in all applications.

  • Enclosure Type: 4-Button Shallow for easy access
  • Compact Dimensions: Length - 8.25 in. (209.6 mm), Width - 3.13 in. (79.5 mm), Depth - 2.00 in. (50.8 mm)
  • Versatile Cable Entry: Accommodates cable ranges from 0.640 to 0.890 in. (16.3 to 22.6 mm)
  • Lightweight Design: Shipping weight of approximately 0.64 lbs (290 g) for easy handling
  • Multi-step Cord Grip: Designed for 4 to 24 conductor cables
  • Resilient Material: Constructed from high-impact polypropylene for durability
  • Ingress Protection: Complies with NEMA Types 1, 3, 4, 4X, and 12 for versatile applications
  • Replaceable Neoprene Boots: Ensures longevity and adaptability in a variety of working conditions
  • Clear Legend Plates: Features easy-to-read directional labels, engraved or printed
  • Strain Relief Included: Comes with a hook and clamp set for secure cable management
  • Certifications: UL Listed and CSA Approved for peace of mind

Key benefits include precise dual-speed control with independent button pairs for each axis, ensuring smooth transitions between slow and fast operations. Built for durability, the L4-S-2 can withstand harsh conditions, including exposure to moisture and chemicals, thanks to its robust construction.

Moreover, the operator-friendly design boasts a slim profile that reduces fatigue, promoting comfort during prolonged use. Installation is simple and efficient; the lightweight, compact structure, combined with an innovative cable management system, simplifies setup in any environment. Adhering to industry safety and environmental standards, the Duct-O-Wire L4-S-2 Pendant Push Button Station exemplifies excellence in control solution technology.

Warranty Information
The Duct-O-Wire Company (the Company) warrants items it sells against defects in material and/or workmanship for one year from the date of shipment, with its sole liability being to repair at its factory or replace any material returned within that year, excluding defects resulting from improper installation or use; statements, descriptions, or specifications in the Company's literature are solely for identifying items and impart no warranty of any kind, and the Company shall not be liable for economic loss, property damage, or physical injury sustained by the purchaser or any third party, with no other express or implied warranties of merchantability, performance, or fitness for intended use, and this warranty applying only to material manufactured by the Company that comprises a complete system. Based on the customer's clearly written purchase order, the Company will process and ship orders per the customer's instructions and is not responsible for the customer's mistakes or omissions in ordering; list prices and discounts are subject to change without notice, and quoted prices are honored for 30 days from the date of the written quotation unless otherwise stated. Orders may not be altered or cancelled without the Company's prior written approval, and the customer may be responsible for cancellation charges; material may not be returned for credit without the Company's prior written consent, returned material is subject to a 20% minimum restocking charge and must be in resalable condition, all returns must be shipped prepaid, and custom parts are non-refundable. Any claims for material shortages or damages must be received by the Company in writing within 10 days of shipment and accompanied by copies of the bill of lading and packing slip, and payment terms are Net 30 Days, with a service charge of 1-1/2% of the net balance applied to any amount extending beyond 30 days past due.
