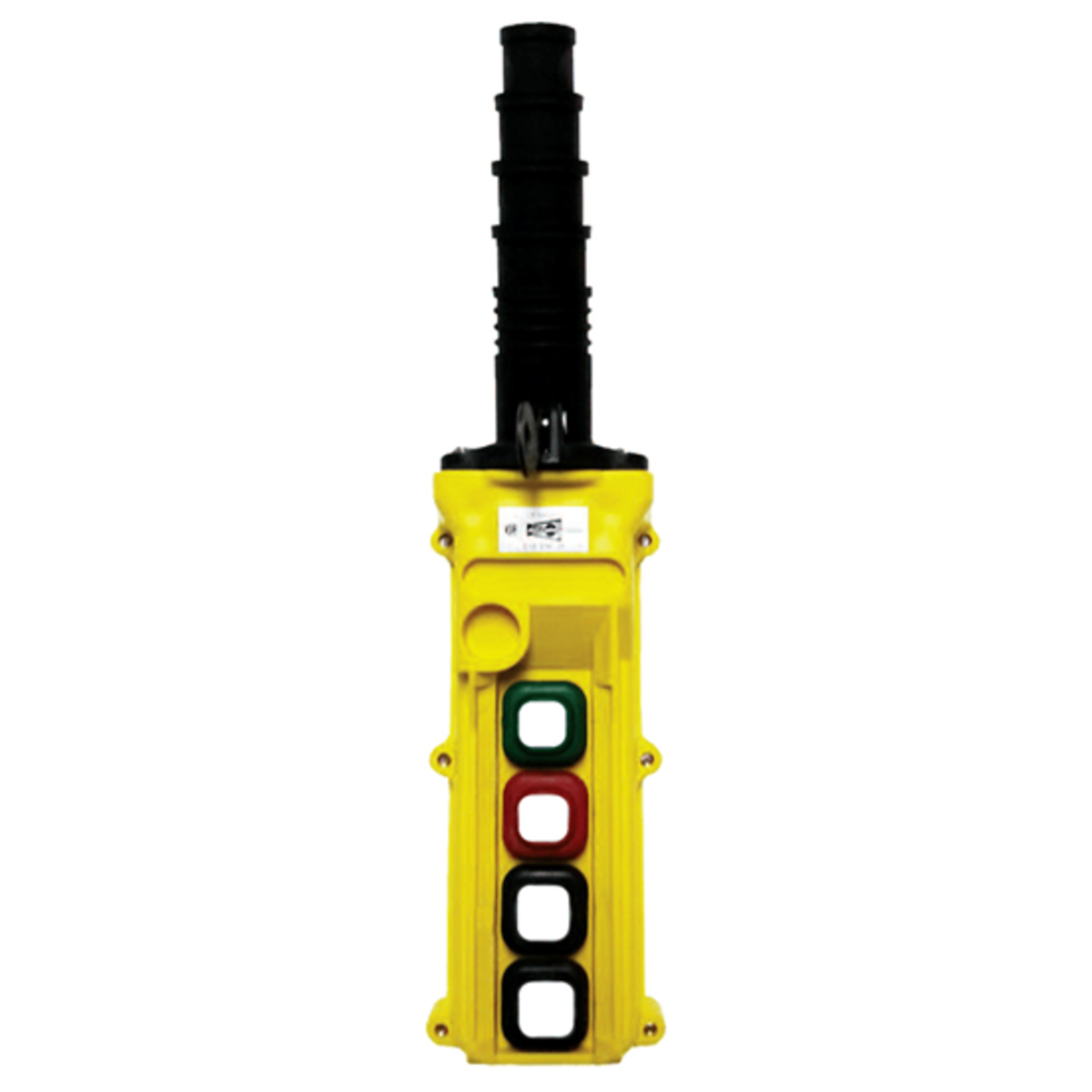

The Duct-O-Wire L4-S-2A Pendant Push Button Station seamlessly combines functionality and toughness for industrial settings. Specially engineered for overhead cranes, hoists, and various types of machinery, this control station provides a user-friendly interface with its two-speed motion control capabilities. Its durable construction ensures it can withstand the rigors of daily use while remaining lightweight and easy to operate.

This model, part of the L Series, features a compact 4-button design that allows for simple two-motion control—either Up/Down or Left/Right depending on your operational needs. The shallow enclosure not only gives it a sleek silhouette but also makes it manageable for operators. With dimensions of 8.75 inches in length, 3.13 inches in width, and a depth of just 2 inches, it's perfectly sized for ease of handling, while its high-impact polypropylene enclosure material guarantees durability.

• Model: L4-S-2A
• Button Configuration: 4-button (Dual control options: Up/Down + Left/Right or Forward/Reverse)
• Enclosure Style: Shallow, designed for compact space utilization
• Material: High-impact Polypropylene for strength against impacts and chemicals
• Ingress Protection: NEMA 1, 3, 4, 4X, and 12, ensuring suitability for both indoor and outdoor applications
• Weight: Approximately 0.64 lbs (290 g), providing ease of handling
• Cable Entry Range: 0.640 to 0.890 inches (16.3 to 22.6 mm)
• Strain Relief: Includes a strain relief hook and cable clamp set for added stability
• Switch Type: Momentary contact switches with customization available
• Boots: Replaceable neoprene boots for enhanced environmental protection and tactile interaction
• Legend Plates: Clear, engraved plates for effective operator guidance
• Certifications: UL Listed and CSA Approved, ensuring compliance with safety standards
• Mounting Orientation: Designed for vertical hanging with a standard top hook

The applications for the Duct-O-Wire L4-S-2A are extensive, ranging from overhead cranes and monorail hoists to conveyor controls and general material handling equipment. Designed to enhance operational efficiency, this pendant control station's ergonomic slim profile significantly reduces operator fatigue, allowing for prolonged use without discomfort.

Constructed to be resilient in tough environments, its rugged polymer housing not only withstands impact but is also resistant to chemicals and corrosion, making it the perfect choice for demanding industrial applications. With a broad compatibility range for different control cable types and easy modular construction for repairs or reconfiguration, the Duct-O-Wire L4-S-2A is a reliable solution for your ergonomic control needs.
