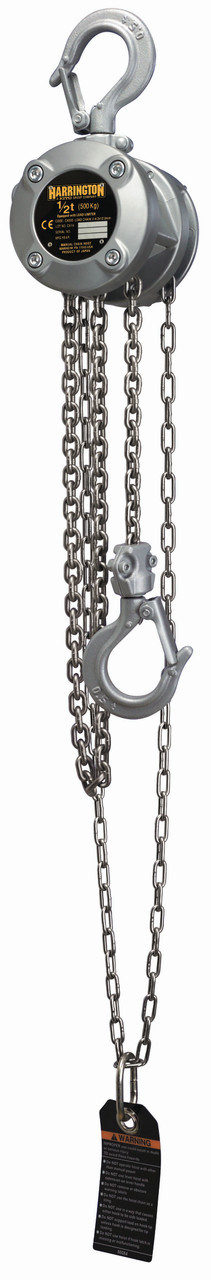

HARRINGTON CX Hand Chain Hoist 10' Lift-Capacity 1/2 Ton CX005 Hand Chain Hoist

Product Overview

The HARRINGTON CX Hand Chain Hoist is engineered to deliver high performance and reliability, making it the choice of professionals in various industries. With a 10-foot lift and a robust capacity of 1/2 ton, this hoist is aptly designed to handle your heavy lifting needs no matter how challenging the environment. Elevating efficiency and safety, the CX005-10 is a compact and lightweight option ideal for construction, manufacturing, or any setting where heavy loads need to be moved seamlessly.

Constructed with exceptional attention to detail, the CX005 Hand Chain Hoist stands out with its enhanced durability. The metal chain guide ensures a smooth and unhindered operation, letting you effortlessly lift and lower loads as needed. The grade 100 nickel-plated load chain not only improves the hoist's impressive strength but also adds longevity, making it a reliable tool for those in demanding conditions. Solid hook latches equipped with a safety tip prevent accidental disengagement during operation, ensuring that your load remains secure throughout the lifting process.

• 10-foot lift height ideal for various installations
• 1/2 ton lift capacity for heavy machinery and equipment
• Durable grade 100 nickel-plated load chain for enhanced strength
• Metal chain guide for smooth and reliable operation
• Safety tip on hook latches to secure loads firmly
• Compact and lightweight design for easy transportation and storage
• Perfect for diverse applications from construction to manufacturing
• Designed for ease of use in challenging work conditions

The CX005-10 HARRINGTON CX Hand Chain Hoist not only enhances your lifting capabilities but also significantly reduces the strain associated with manual lifting tasks. When you utilize this hoist, you’re investing in a tool that provides unmatched convenience and effectiveness, allowing you to optimize your workflow. Its compact design ensures it won’t take up much space when not in use, providing maximum versatility for your job site.

Don't let heavy loads limit your productivity any longer. Invest in the HARRINGTON CX Hand Chain Hoist today and discover the reliability and performance that countless professionals trust globally. Elevate your work capabilities and make lifting tasks easier and more efficient than ever. Order now to experience the superior difference this hoist will make in your daily operations.

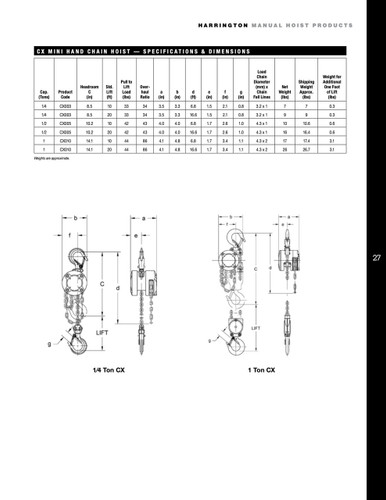

Product Specifications

.

Part Number:

CX005-10

Color:

Silver

Hoist Lift:

10 ft

Product:

Mini Chain Hoist, 1000 lb., 10 ft. Lift=Hoist Mount=Hook Mounted-No Trolley

Housing Width:

4 in

Manufacturers Warranty Length:

2 yr

Housing Depth:

4 in

Housing Length:

10 1/4 in

For Minimum Beam Flange Width:

Not Applicable

For Minimum Beam Flange Height:

Not Applicable

For Maximum Beam Flange Width:

Not Applicable

For Maximum Beam Flange Height:

Not Applicable

Body Width:

4 in

Body Depth:

4 in

Body Material:

Aluminum

Maximum Lifting Length:

10 ft

Lifting Hook Opening Width:

1 in

Minimum Retracted Length:

10 3/16 in

Load Capacity:

1,000 lb

Minimum Between Hooks:

10 1/4 in

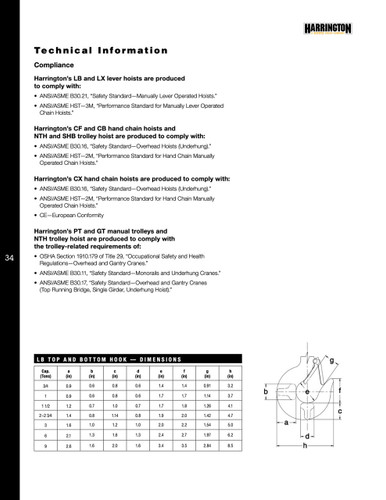

Standards:

ANSI/ASME B30.16, ANSI/ASME HST-2M

Item:

Manual Chain Hoist

Brake:

Weston Style

Trolley Configuration:

Hook Mounted-No Trolley

Features:

Advanced Design Overload Limiter, Completely Sealed Gears and Brake, Aluminum Housing, Wide Top and Bottom Hook Openings

Lifting Hook Material:

Carbon Steel

Includes Clutch:

Clutch Included

Overload Protection Included:

Yes

Chain Grade:

Grade 100

Included Components:

Safety Latch Hooks

Chain Finish:

Nickel Plated

Controls:

=Mount Type=Hook Mounted-No Trolley

Maximum Pulling Capacity:

Not Applicable

Number of Reeves:

1

Headroom:

10 3/16 in

Includes Brake:

Brake Included

Lifting Hook Type:

Hook with Safety Latch

Maximum Lifting Capacity:

1,000 lb

Number of Load Chains:

1
