Product Overview

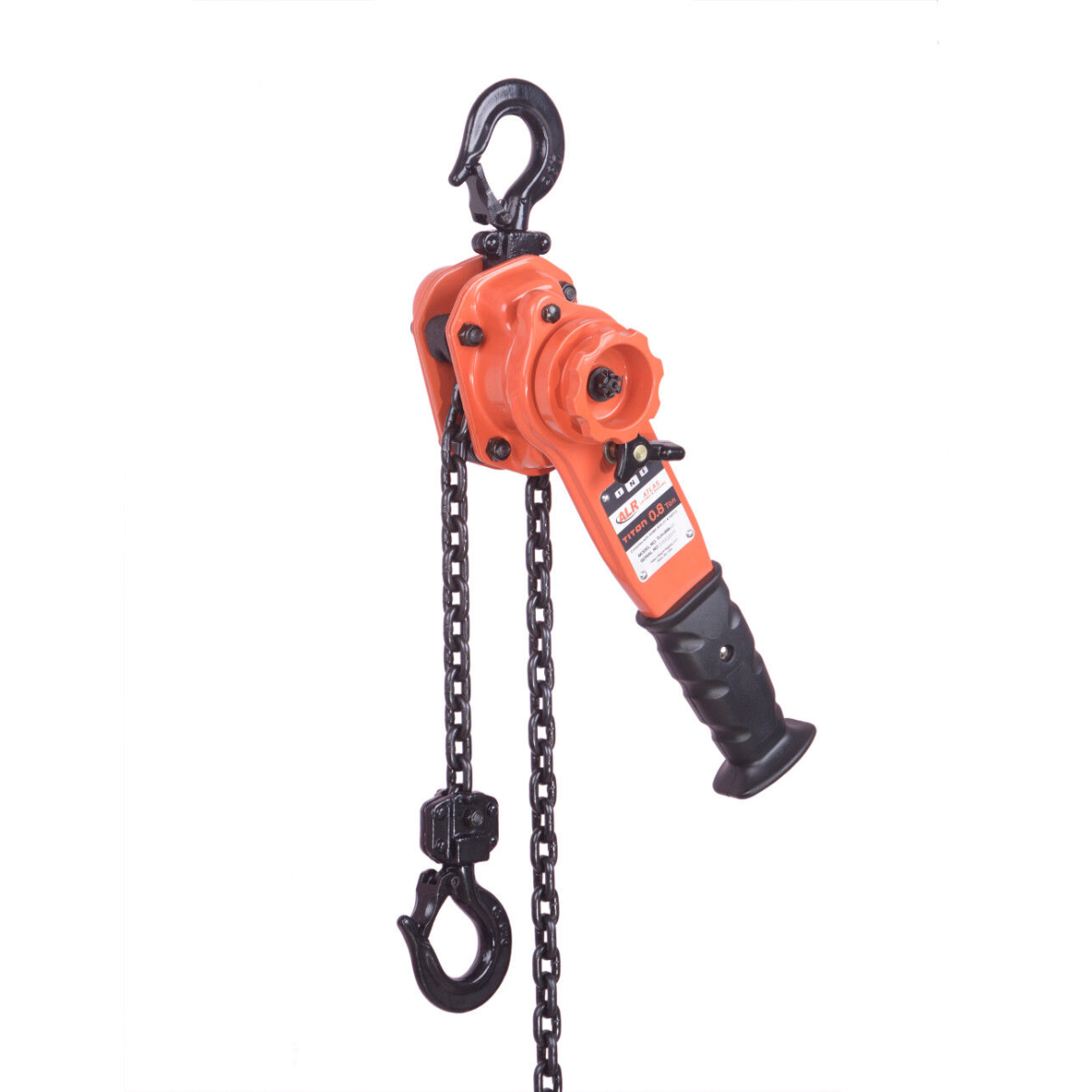

Atlas Lifting and Rigging TLH-008-15 Titan Lever Hoist – 3/4 Ton (1,763 lbs) Capacity, 15 ft Lift
The TLH-008-15 Titan Lever Hoist from Atlas Lifting and Rigging is engineered for dependable performance in lifting, pulling, and tensioning applications. With a 3/4 ton (1,763 lbs) lifting capacity and a 15-foot lift height, this hoist is ideal for tasks requiring extended reach and precise load control.
Constructed with a rugged steel frame, the hoist features a heat-treated alloy steel load chain and a Weston-style brake system for reliable performance and safety. The sleek lever handle ensures comfortable operation, and the forged swivel hooks with safety latches provide secure attachment points.
Key Features:
- 3/4 Ton (1,763 lbs) Capacity: Suitable for light to medium-duty lifting tasks.
- 15 ft Lift Height: Extended range ideal for elevated workspaces.
- All-Steel Construction: Durable frame designed for harsh environments.
- Heat-Treated Alloy Steel Load Chain: Ensures strength and longevity.
- Weston-Style Brake System: Provides reliable load control.
- Ergonomic Lever Handle: Offers comfortable and controlled operation.
- Forged Swivel Hooks with Safety Latches: Secure and flexible rigging options.
- Zinc-Coated Components: Resist corrosion in harsh conditions.
Specifications:
- Model: TLH-008-15
- Capacity: 3/4 Ton (1,763 lbs / 800 kg)
- Lift Height: 15 feet (4.57 meters)
- Load Chain: Heat-treated alloy steel
- Chain Diameter: Approx. 6 mm
- Hand Chain Pull at Full Load: Approx. 80–90 lbs
- Hooks: Forged steel, swivel-type with safety latches
- Finish: Industrial-grade corrosion-resistant coating
- Net Weight: Approx. 27 lbs (12.2 kg)
The Atlas TLH-008-15 lever hoist combines strength, safety, and precision, making it the best choice for professionals in construction, manufacturing, and maintenance operations
