Product Overview

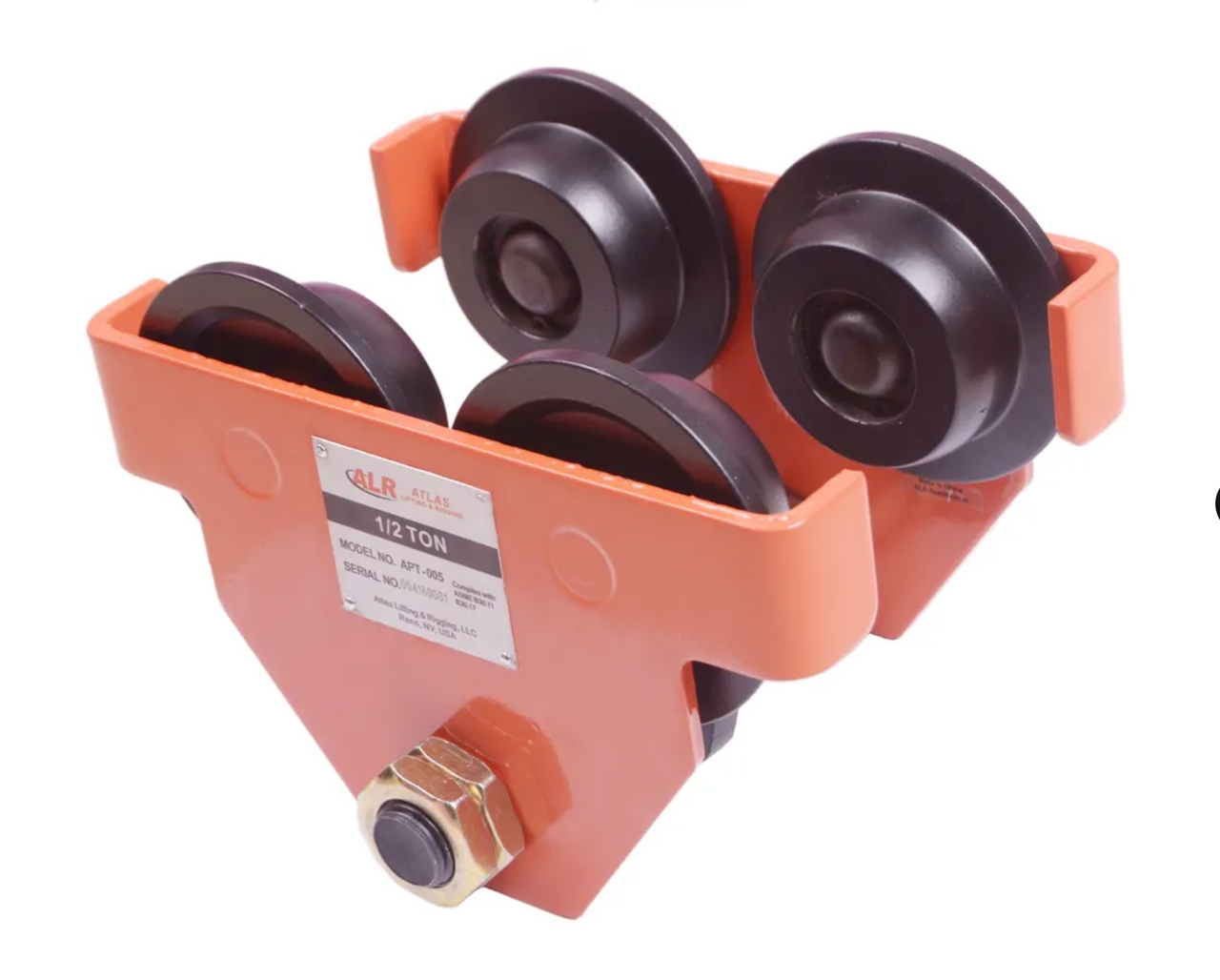

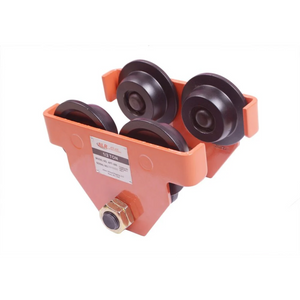

Atlas Lifting and Rigging APT-005 Push Beam Trolley – 0.5 Ton Capacity
The APT-005 Push Trolley from Atlas Lifting and Rigging is a compact, easy-to-install beam trolley designed to support and mobilize hoists or lifting devices along a beam. With a 0.5-ton (1,000 lbs) load capacity, it is ideal for light-duty to medium-duty material handling applications.
This manual trolley features adjustable flange spacing to fit a range of beam sizes and a precision-machined wheel design for smooth, reliable movement. Built with rugged steel construction and sealed ball bearings, it ensures long-lasting performance with minimal maintenance.
Key Features:
- 0.5-Ton Load Capacity: Designed for dependable performance in lighter lifting tasks.
- Manual Push Operation: Enables smooth and controlled travel along the beam.
- Adjustable Flange Width: Fits a variety of I-beam and H-beam sizes.
- Sealed Ball Bearings: Provide smooth, maintenance-free operation.
- Heavy-Duty Steel Side Plates: Reinforced for strength and durability.
- Anti-Drop Plates: Enhance operator safety by preventing trolley dislodgment.
- Compact & Low Headroom Design: Ideal for environments with limited vertical clearance.
Specifications:
- Model: APT-005
- Capacity: 0.5 Ton (1,000 lbs / 454 kg)
- Beam Width Range: Approx. 2.5" to 5.5" (adjustable)
- Wheel Type: Steel, with sealed ball bearings
- Body Construction: All-steel side plates with powder-coated finish
- Connection Type: Central suspension eye suitable for hook-mounted hoists
- Net Weight: Approx. 15 lbs (6.8 kg)
The Atlas APT-005 push beam trolley offers a reliable, cost-effective way to add horizontal travel to your lifting system. Designed for smooth operation, safety, and quick installation—perfect for workshops, warehouses, and industrial settings.
