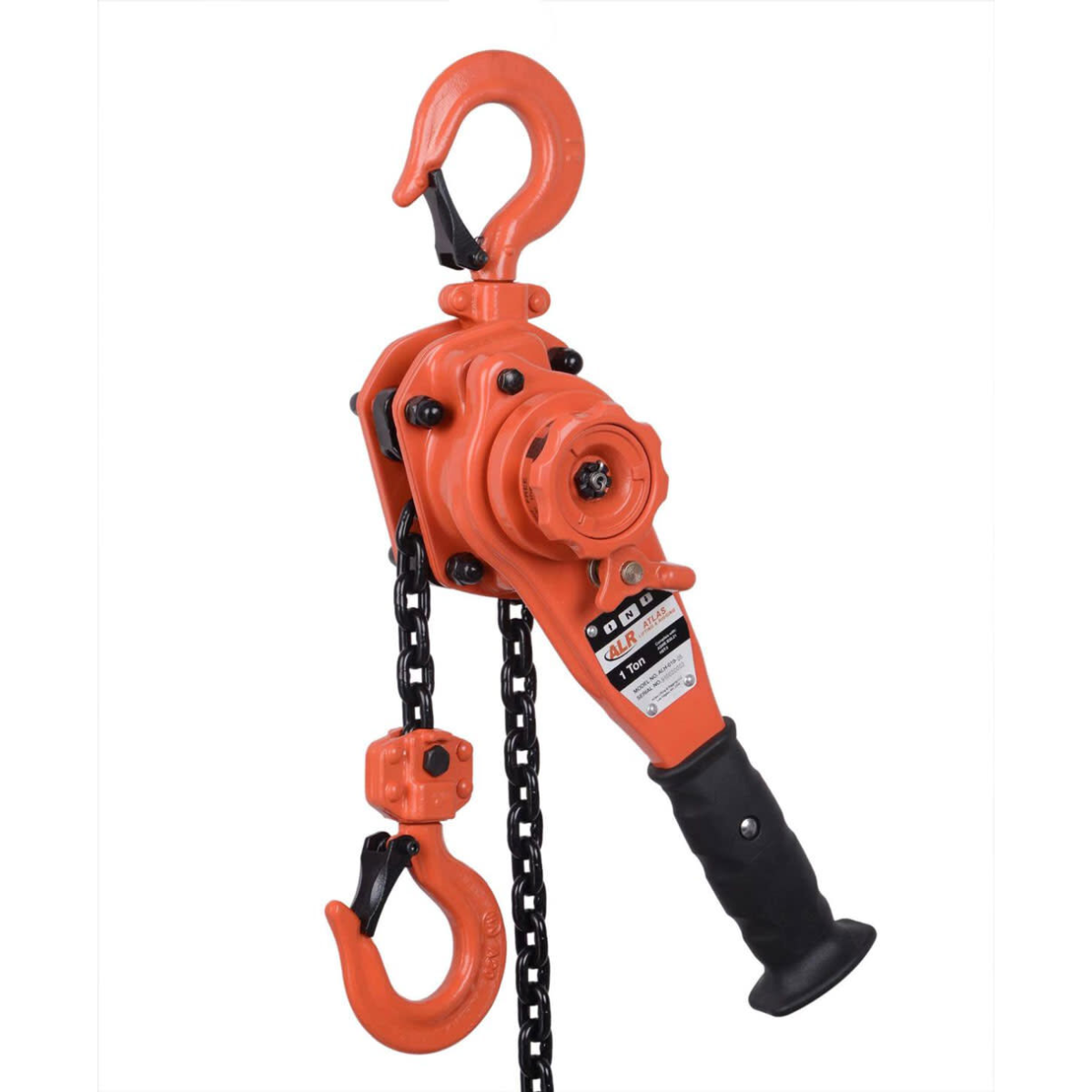

Atlas Lifting and Rigging ALH-010-30 Manual Lever Hoist
The ALH-010-30 is designed for high-reach and long-span lifting applications where durability and control are critical. With a 1-ton (2,200 lbs) lifting capacity and an impressive 30-foot lift height, this hoist delivers the reach and strength required for complex rigging setups, tall structures, or extended horizontal pulls.
Constructed with a heavy-duty steel frame and a heat-treated alloy steel load chain, the ALH-010-30 stands up to demanding job site conditions. Its ergonomic lever handle ensures easy operation and precise control, while forged swivel hooks with safety latches allow for secure rigging from virtually any position.
Key Features:
- 1-Ton Load Capacity: Reliable lifting and pulling performance across a wide range of job types.
- 30-Foot Lift Height: Ideal for extended vertical lifts and long-distance horizontal applications.
- Durable Steel Construction: Built to withstand tough industrial and construction environments.
- Alloy Steel Load Chain: Heat-treated for superior strength and resistance to wear.
- Comfort-Grip Lever Handle: Provides smooth, controlled operation with less operator fatigue.
- Three-Mode Selector: Easily switch between lifting, lowering, and free-chain adjustment.

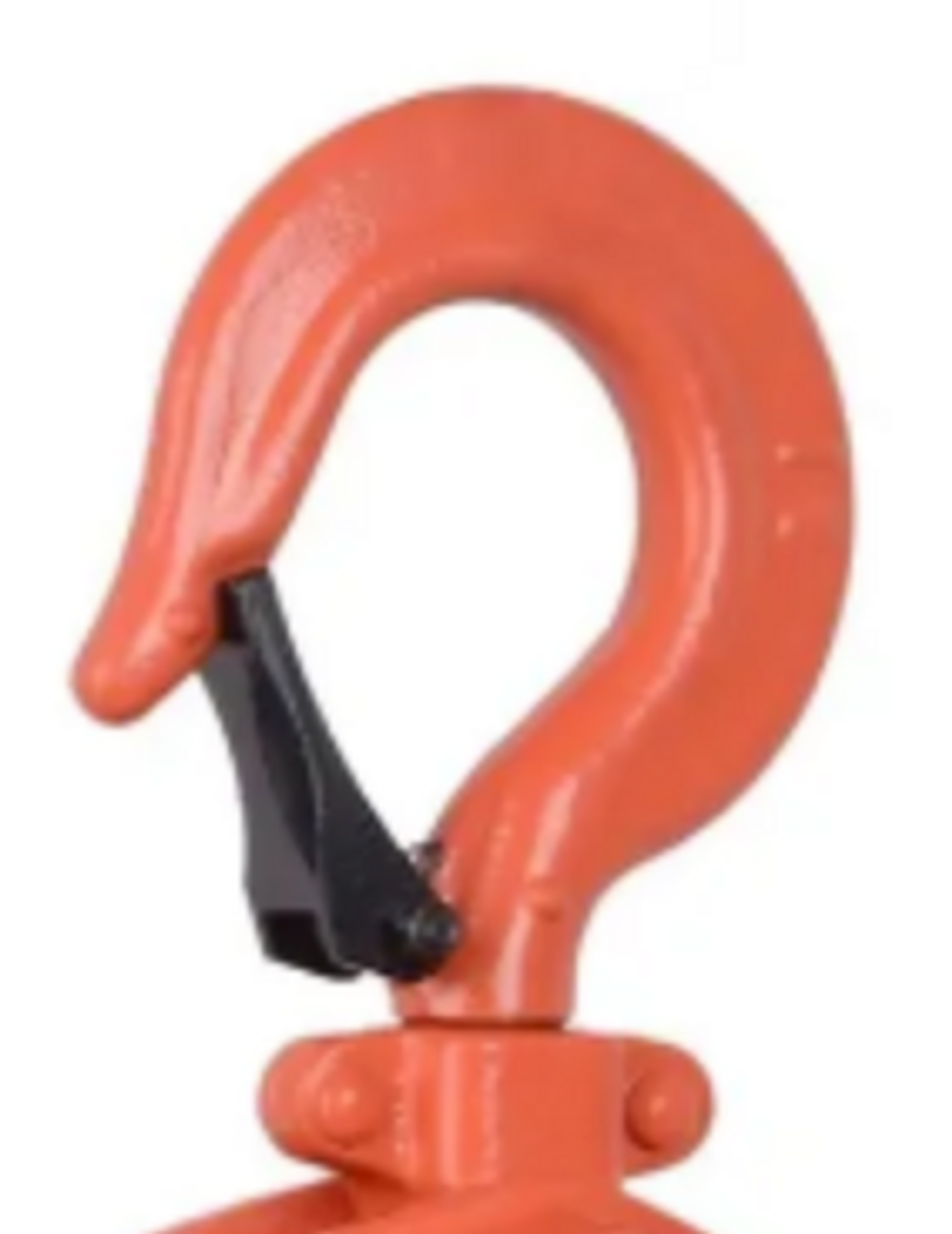

- Swivel Hooks with Safety Latches: Offer flexibility and secure attachment at any angle.
Specifications:
- Model: ALH-010-30
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 30 ft (9.1 m)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 32 lbs (14.5 kg)
The Atlas ALH-010-30 provides long-distance lifting power in a compact, manually operated package—ideal for pros who need high reach without compromising strength or control.
