Product Overview

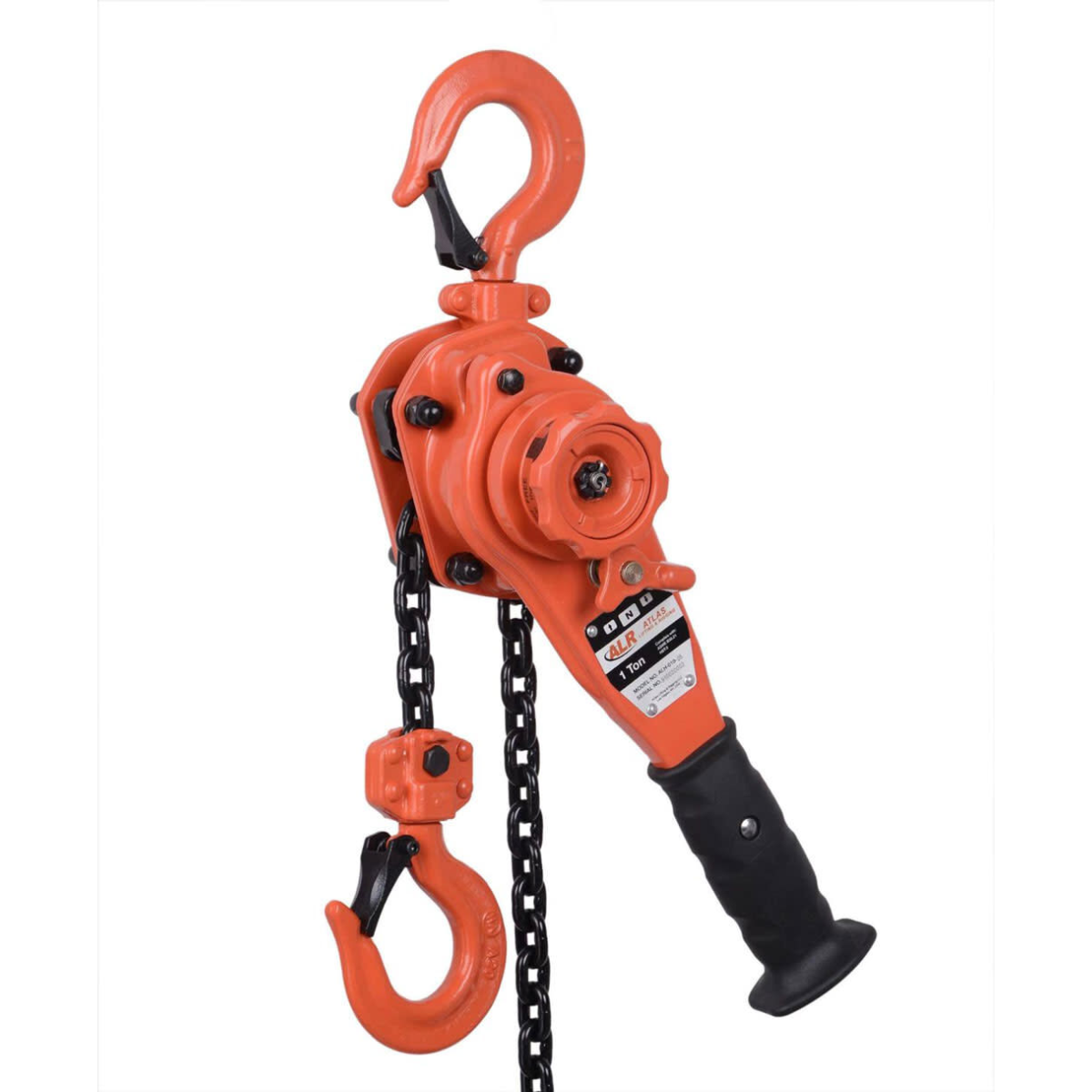

Atlas Lifting and Rigging ALH-010-20 Manual Lever Hoist
The ALH-010-20 is built for extended reach and heavy-duty reliability in lifting and pulling applications. With a 1-ton (2,200 lbs) capacity and a 20-foot lift height, this hoist is ideal for projects requiring longer lifting distances, such as elevated construction, large-scale rigging, and utility maintenance work.
Built for industry with a steel frame and a heat-treated alloy steel load chain, this hoist provides superior strength and long-lasting durability in demanding environments. The ergonomic lever handle enables controlled and efficient operation, while the forged swivel hooks with safety latches ensure secure load engagement from any angle.
Key Features:
- 1-Ton Load Capacity: Handles a wide range of lifting and tensioning tasks.
- Extended 20-Foot Lift Height: Suitable for higher elevation lifts and longer spans.
- Heavy-Duty Steel Housing: Engineered for strength and durability in industrial settings.
- Alloy Steel Load Chain: Heat-treated for wear resistance and dependable performance.
- User-Friendly Lever Handle: Designed for comfort and low-effort operation.

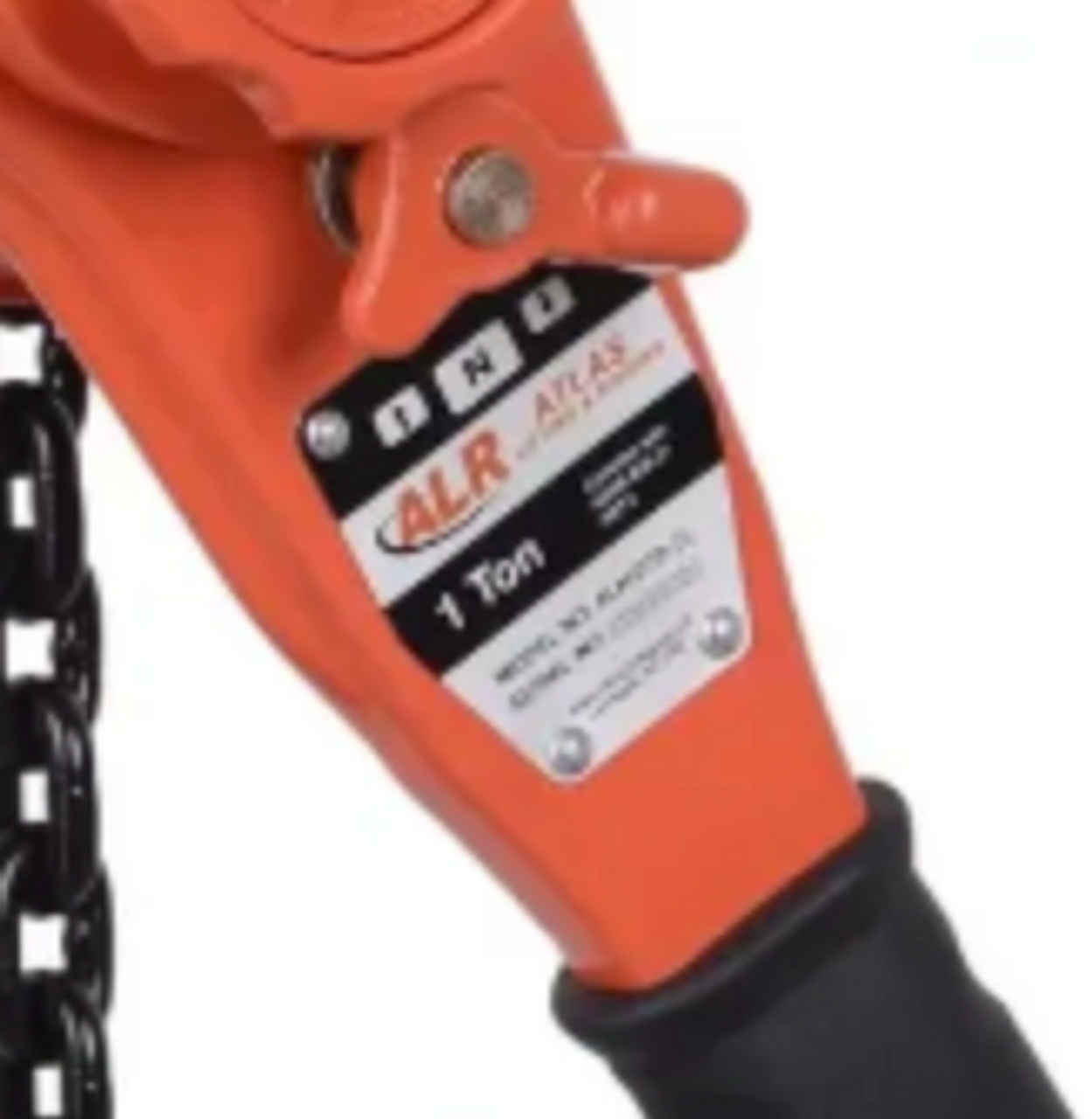

- Three-Position Selector Switch: Allows for lifting, lowering, and free-chain adjustment.
- 360° Swivel Hooks with Safety Latches: Ensure flexible and secure rigging.
Specifications:
- Model: ALH-010-20
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 20 ft (6.1 m)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 25 lbs (11.3 kg)
The Atlas ALH-010-20 lever hoist is a strong and reliable tool for professionals who need extended lifting reach without compromising on durability or control.
