Product Overview

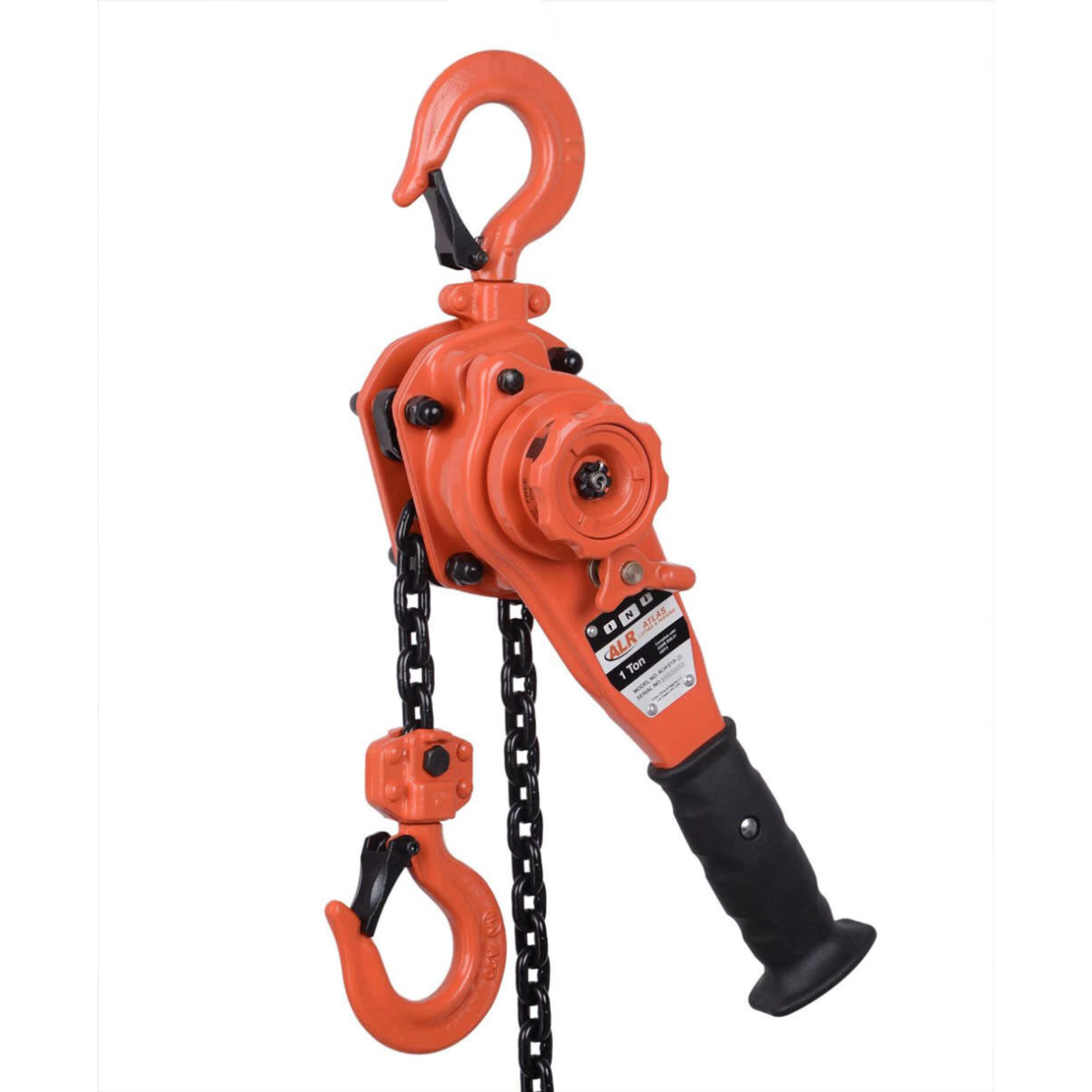

Atlas Lifting and Rigging ALH-010-15 Manual Lever Hoist
The ALH-010-15 delivers reliable performance and extended reach for lifting, pulling, and tensioning tasks. With a 1-ton (2,200 lbs) load capacity and an extended 15-foot lift height, it’s well-suited for elevated rigging, tall structures, and long-span pulling applications.
Designed for demanding environments, this lever hoist features a rugged steel housing and a heat-treated alloy steel load chain for strength and durability. The ergonomic lever handle ensures comfortable, controlled operation, while the forged swivel hooks with safety latches allow for secure and versatile rigging from any angle.
Key Features:
- 1-Ton Load Capacity: Ideal for general lifting, pulling, and positioning in industrial and construction settings.
- Extended 15-Foot Lift Height: Accommodates higher lift requirements and long pulling spans.
- Rugged Steel Frame: Built to endure heavy use in challenging environments.
- Alloy Steel Load Chain: Heat-treated for superior strength and resistance to wear.

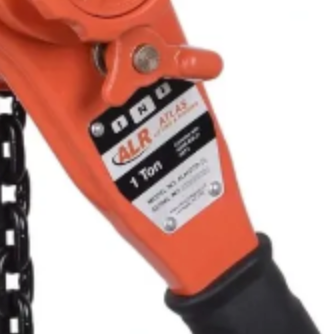

- Ergonomic Lever Handle: Provides precise control with minimal hand fatigue.
- Multi-Mode Selector: Switch easily between lifting, lowering, and free-chain modes.

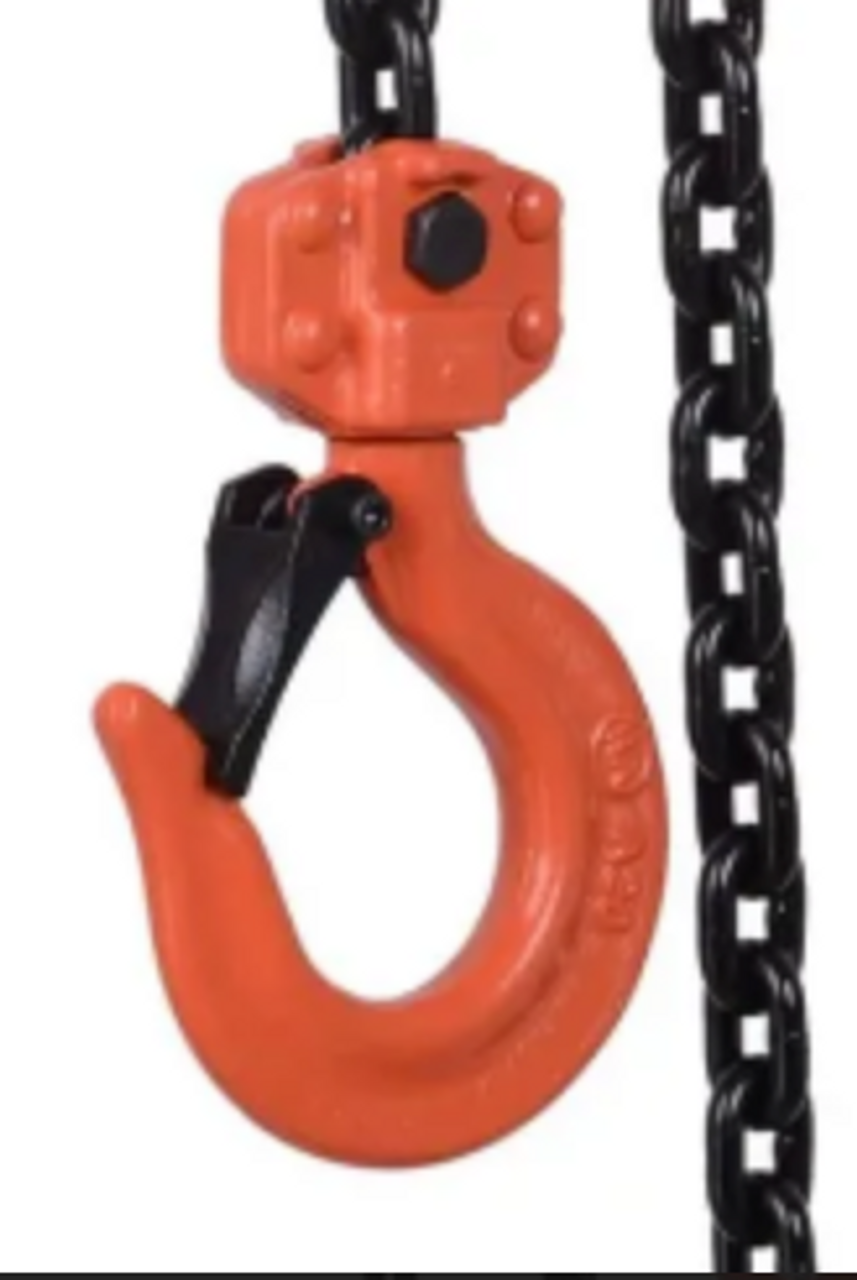

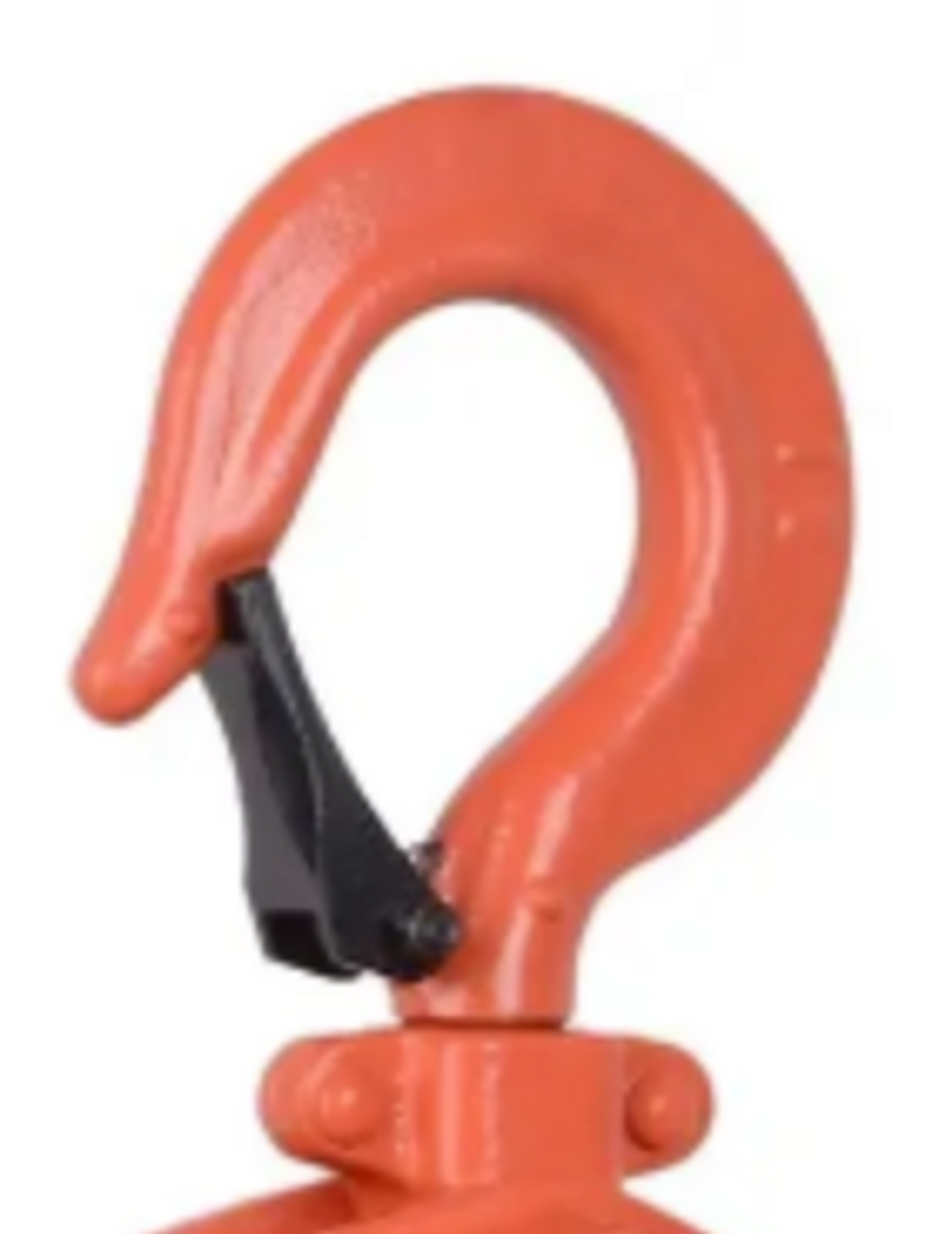

- 360° Swivel Hooks with Safety Latches: Enhance rigging flexibility and load security.
Specifications:
- Model: ALH-010-15
- Capacity: 1 Ton (2,200 lbs / 1,000 kg)
- Lift Height: 15 ft (4.6 m)
- Load Chain Material: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Hook Type: Forged steel swivel hooks with safety latches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 22 lbs (10 kg)
The Atlas ALH-010-15 lever hoist is built to handle longer lifts with strength, control, and reliability — making it an excellent choice for elevated rigging tasks or extended pulls in the field.
