Atlas Lifting and Rigging Titon 1 Ton Lever Hoist 2200 lbs 15 Ft. Chain

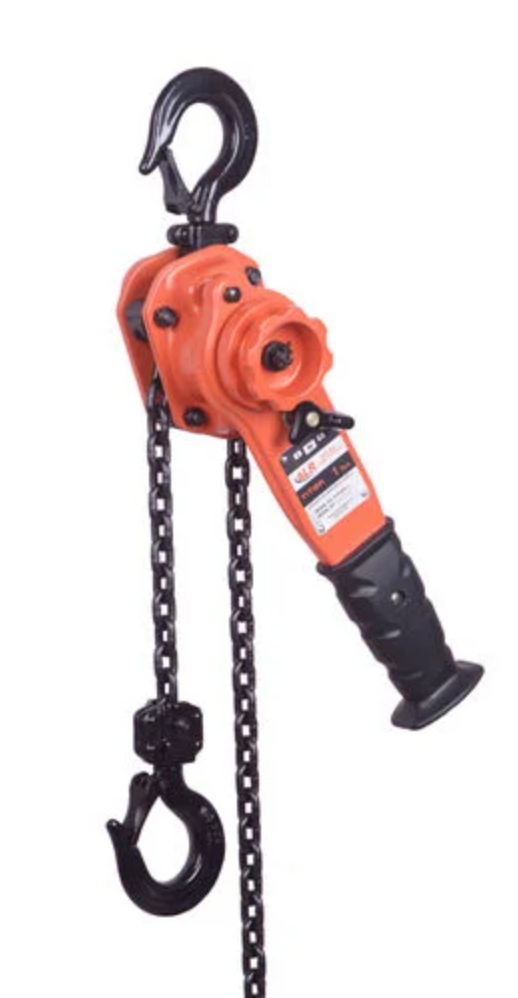

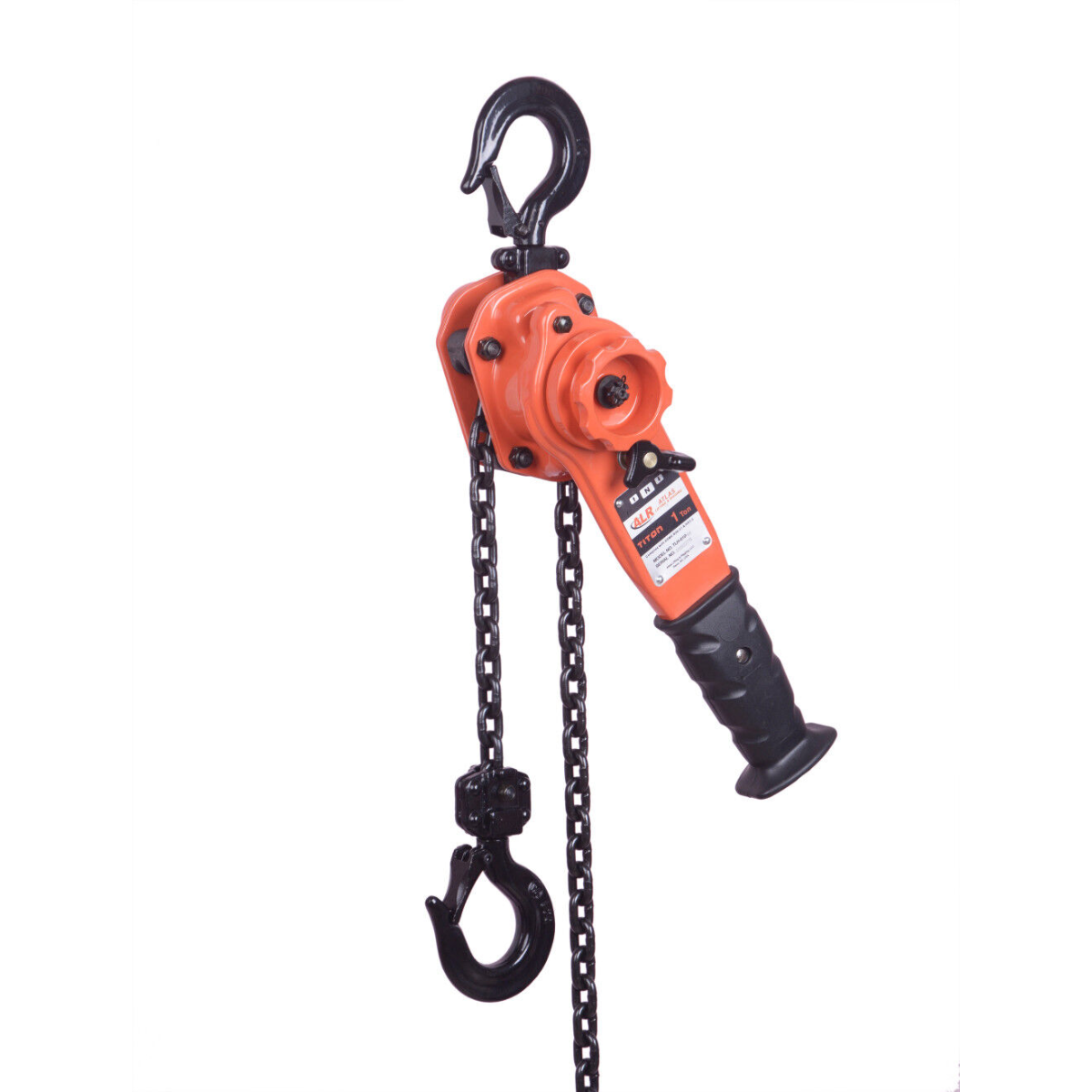

Atlas Lifting and Rigging TLH-010-15 Titan Lever Hoist – 1 Ton (2,200 lbs) Capacity, 15 ft Lift

The TLH-010-15 Titan Lever Hoist from Atlas Lifting and Rigging is engineered for reliable performance in lifting, pulling, and tensioning applications. With a 1-ton (2,200 lbs) lifting capacity and a 15-foot lift height, this hoist is ideal for tasks requiring precise load control.

Constructed with a rugged steel frame, the hoist features a heat-treated alloy steel load chain and a Weston-style brake system for reliable performance and safety. The ergonomic lever handle ensures comfortable operation, while the forged swivel hooks with safety latches provide secure attachment points.

Key Features:

• 1 Ton (2,200 lbs) Capacity: Suitable for medium-duty lifting tasks.
• 15 ft Lift Height: Ideal for a variety of lifting applications.
• All-Steel Construction: Durable frame designed for harsh environments.
• Heat-Treated Alloy Steel Load Chain: Ensures strength and longevity.
• Weston-Style Brake System: Provides reliable load control.
• Ergonomic Lever Handle: Offers comfortable and controlled operation.
• Forged Swivel Hooks with Safety Latches: Secure and flexible rigging options.
• Zinc-Coated Components: Resist corrosion in harsh conditions.

Specifications:

• Model: TLH-010-15
• Capacity: 1 Ton (2,200 lbs / 1,000 kg)
• Lift Height: 15 feet (4.6 meters)
• Load Chain: Heat-treated alloy steel
• Chain Diameter: Approx. 6 mm
• Hand Chain Pull at Full Load: Approx. 80–90 lbs
• Hooks: Forged steel, swivel-type with safety latches
• Finish: Industrial-grade corrosion-resistant coating
• Net Weight: Approx. 23 lbs (10.4 kg)

The Atlas TLH-010-15 lever hoist combines strength, safety, and precision, making it the best choice for professionals in construction, manufacturing, and maintenance operations.
