Product Overview

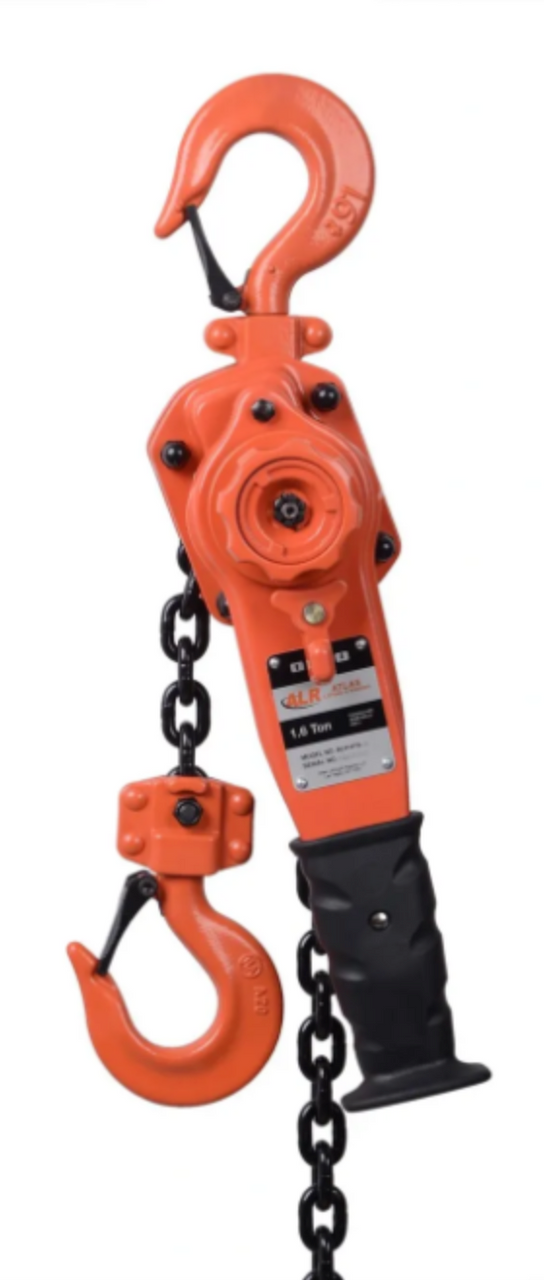

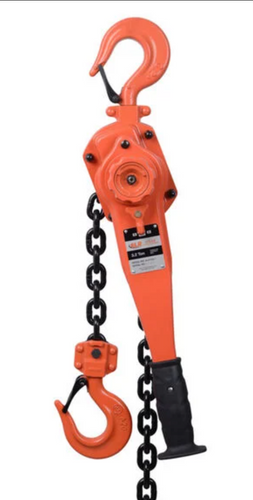

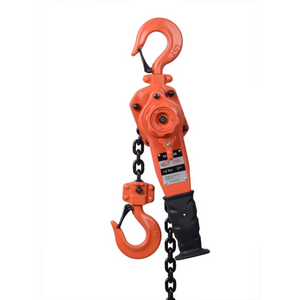

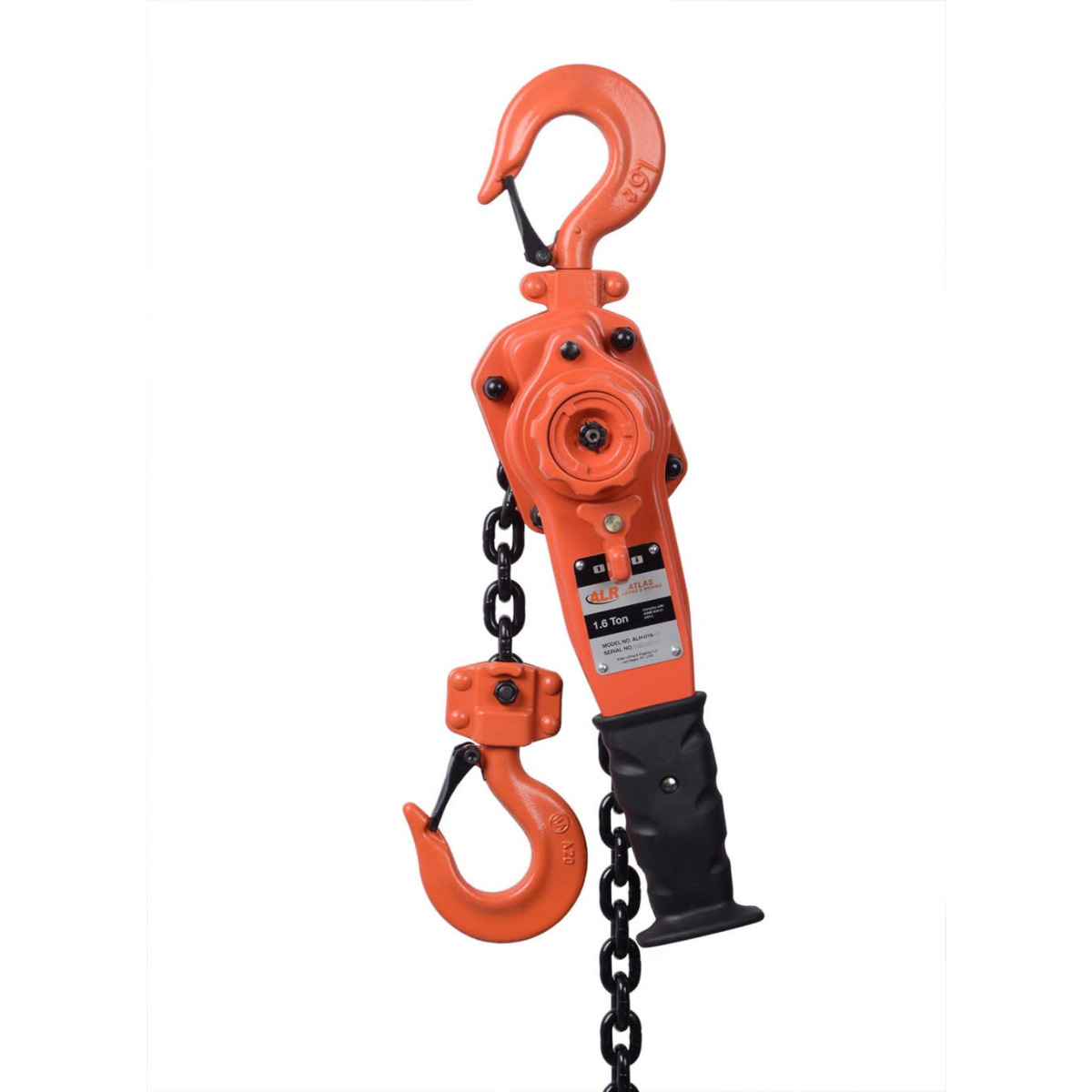

Atlas Lifting and Rigging ALH-016-30-OP Lever Hoist with Overload Protection
The ALH-016-30-OP is purpose-built for long-lift operations where safety, strength, and control are critical. Designed to handle up to 1.5 tons (3,000 lbs) and offering an extended 30-foot lift height, this hoist features an integrated mechanical overload protection system to guard against overloading and equipment strain.
Ideal for tall rigging setups or overhead lifting in construction, industrial, and structural environments, the hoist delivers performance through a rugged steel body, heat-treated alloy load chain, and forged swivel hooks. The overload protection clutch automatically disengages the lifting mechanism when the rated capacity is exceeded, promoting both operator and equipment safety.
Key Features:
- 1.5-Ton Load Capacity: Handles moderate lifting tasks with ease.
- 30-Foot Lift Height: Extended chain reach for elevated or high-clearance applications.
- Mechanical Overload Protection: Prevents lifting above rated capacity, protecting the hoist and the user.

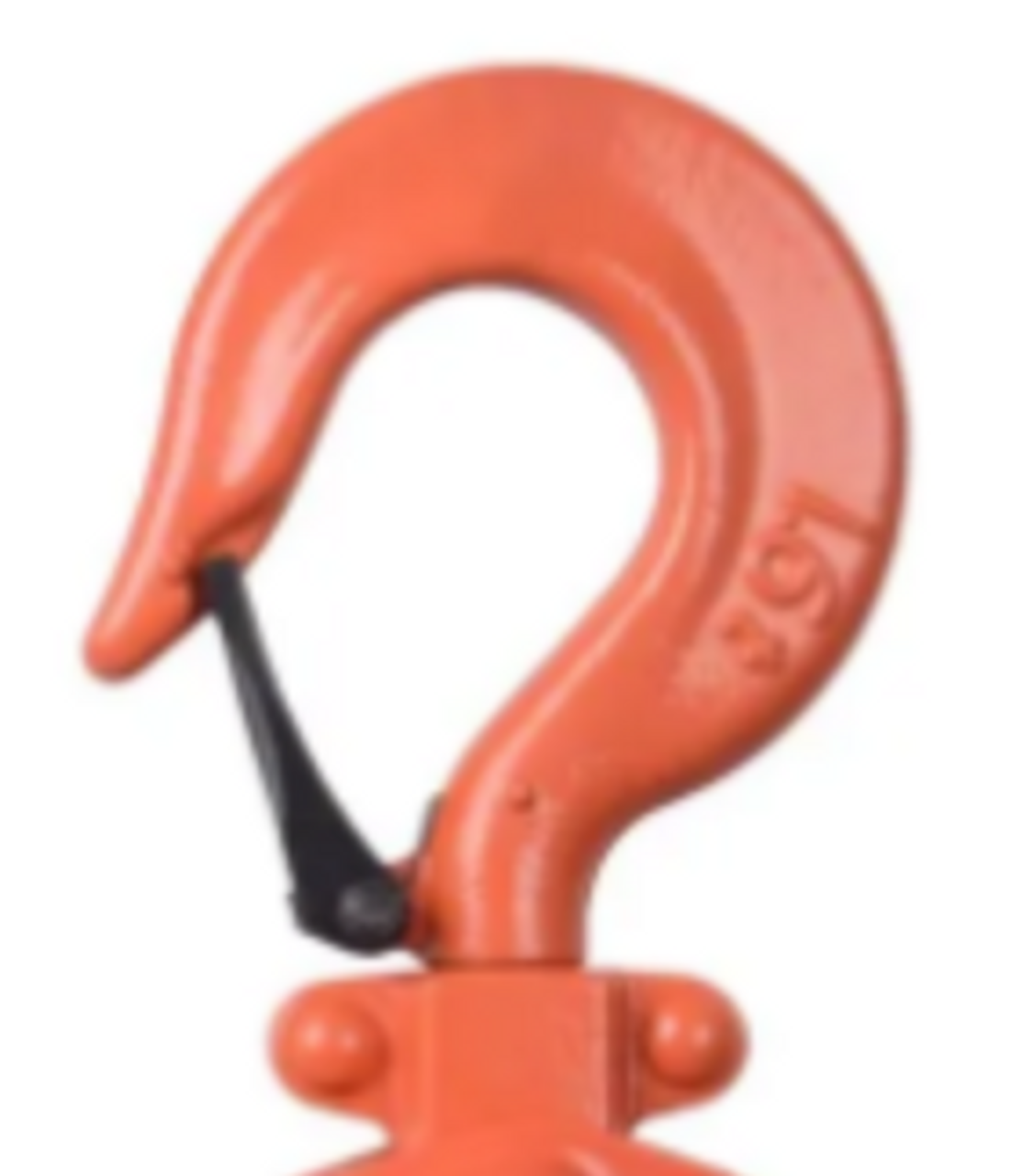

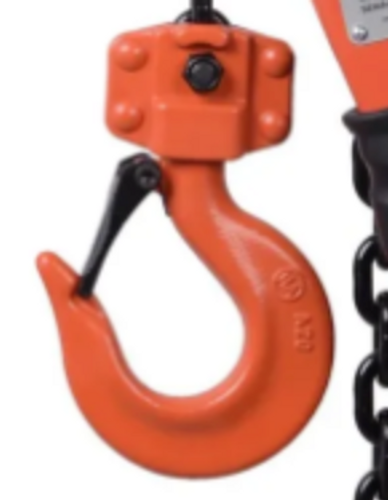

- Forged Swivel Hooks with Latches: Ensure secure, flexible rigging connections.
- Alloy Steel Load Chain: Heat-treated for superior strength and durability.
- Free-Chain Mode: Allows quick chain positioning without tension.
- Three-Position Selector: Easy operation between lift, lower, and neutral settings.
- Ergonomic Handle: Designed for comfortable, controlled manual operation.
Specifications:
- Model: ALH-016-30-OP
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 30 ft (9.1 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 55 lbs (24.9 kg)
The Atlas ALH-016-30-OP is a reliable and safety-conscious solution for high-reach lifting in industrial and construction settings where safety and performance go hand in hand.
