Product Overview

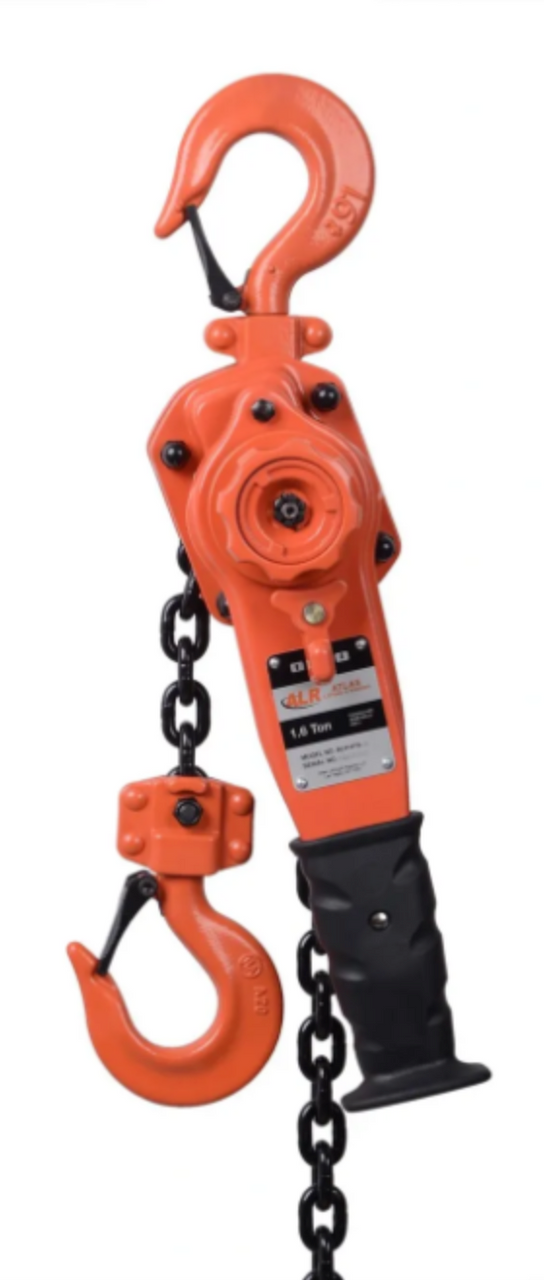

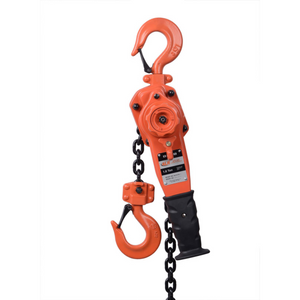

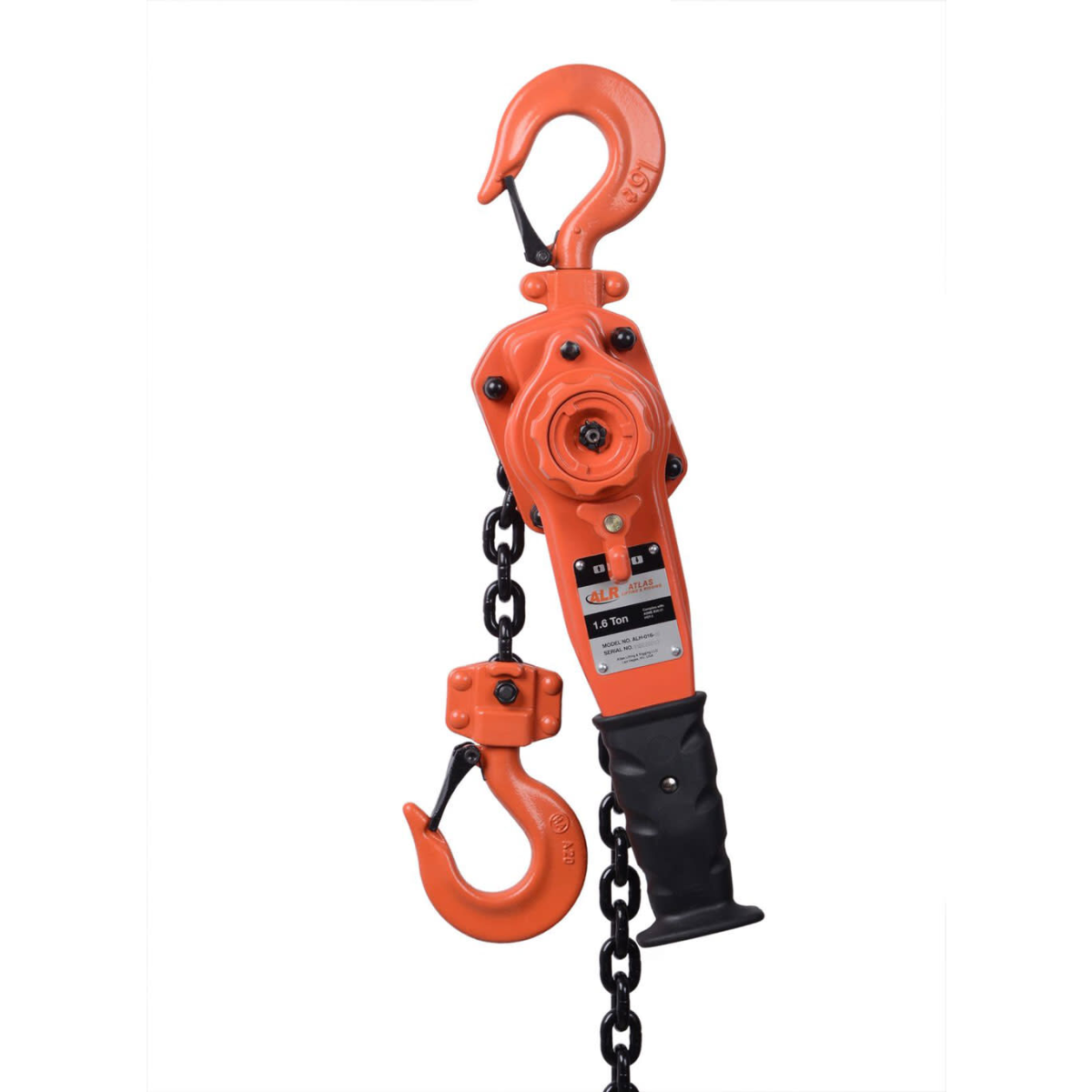

Atlas Lifting and Rigging ALH-016-20-OP Manual Lever Hoist with Overload Protection

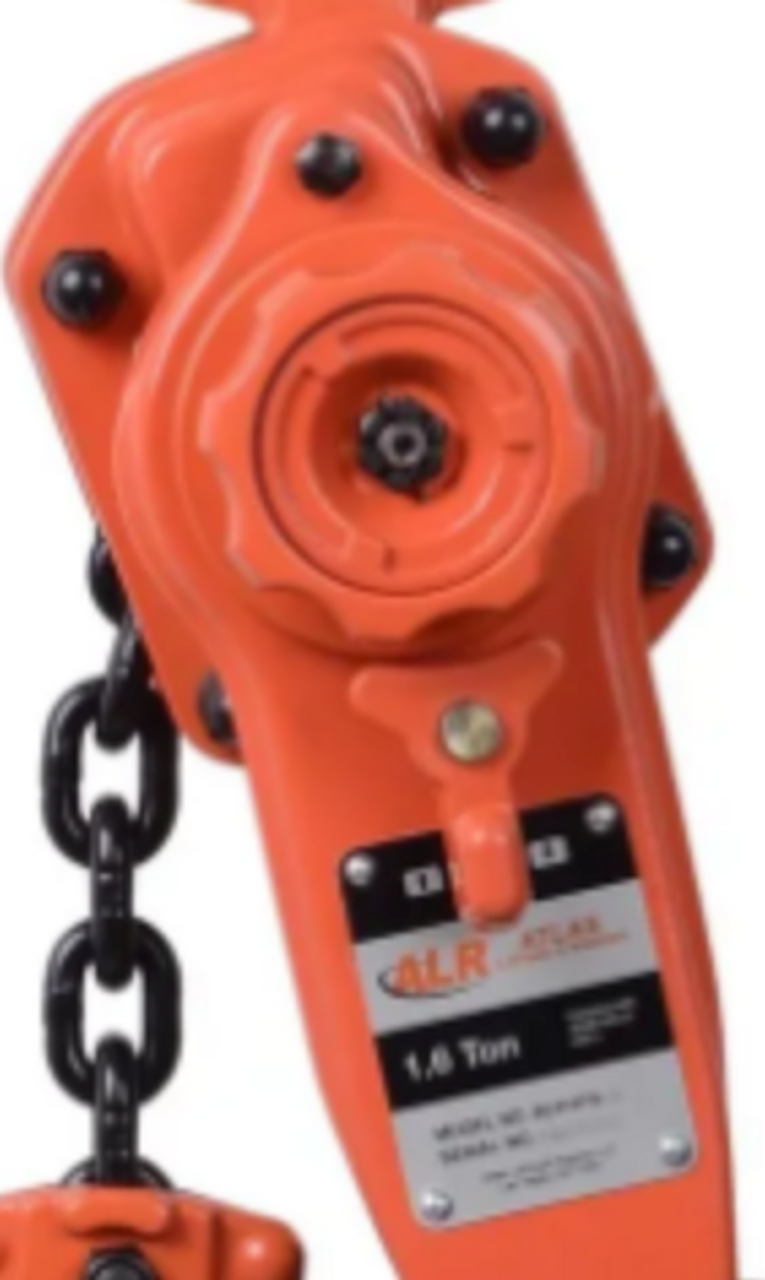

The ALH-016-20-OP is a high-performance lever hoist designed for extended-reach applications that demand both lifting power and safety. With a 1.5-ton (3,000 lbs) capacity and a 20-foot lift height, this model is built for elevated and complex rigging tasks in industrial, construction, and utility environments.
Equipped with a mechanical overload protection system, the hoist prevents overloading by engaging a slip clutch mechanism, thereby reducing the risk of damage to equipment and injury to personnel. Durable steel construction, heat-treated alloy chain, and forged swivel hooks deliver lasting reliability on the job.
Key Features:
- 1.5-Ton Load Capacity: Ideal for mid-duty lifting, pulling, and securing loads.
- 20-Foot Lift Height: Extended chain reach for elevated or high-clearance setups.
- Integrated Overload Protection: Mechanical slip clutch halts operation when capacity is exceeded.
- Rugged Steel Body: Built to endure harsh industrial conditions.
- Alloy Steel Load Chain: Heat-treated for strength, wear resistance, and longevity.

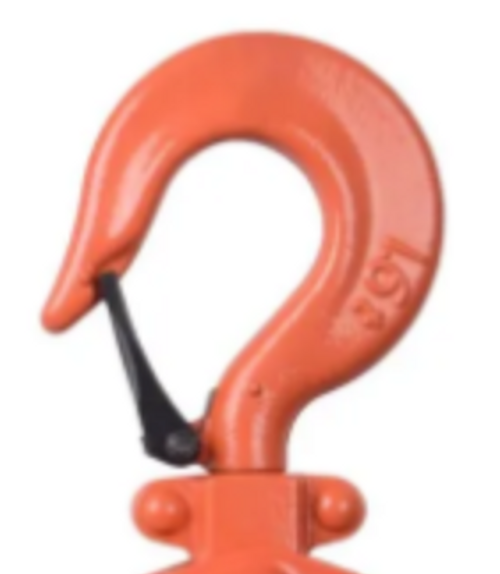

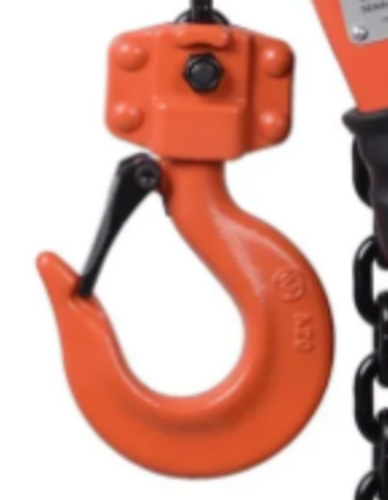

- Swivel Hooks with Safety Latches: Secure and adaptable connection points for various rigging needs.
- Three-Position Selector Switch: Easily toggle between lifting, lowering, and free-chain modes.
- Ergonomic Lever Design: Comfortable and efficient for manual operation.
Specifications:
- Model: ALH-016-20-OP
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 20 ft (6.1 m)
- Overload Protection: Integrated mechanical slip clutch
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 44 lbs (20 kg)
The Atlas ALH-016-20-OP is the go-to hoist for professionals requiring long lift distance, safety assurance, and dependable performance in high-demand environments.
