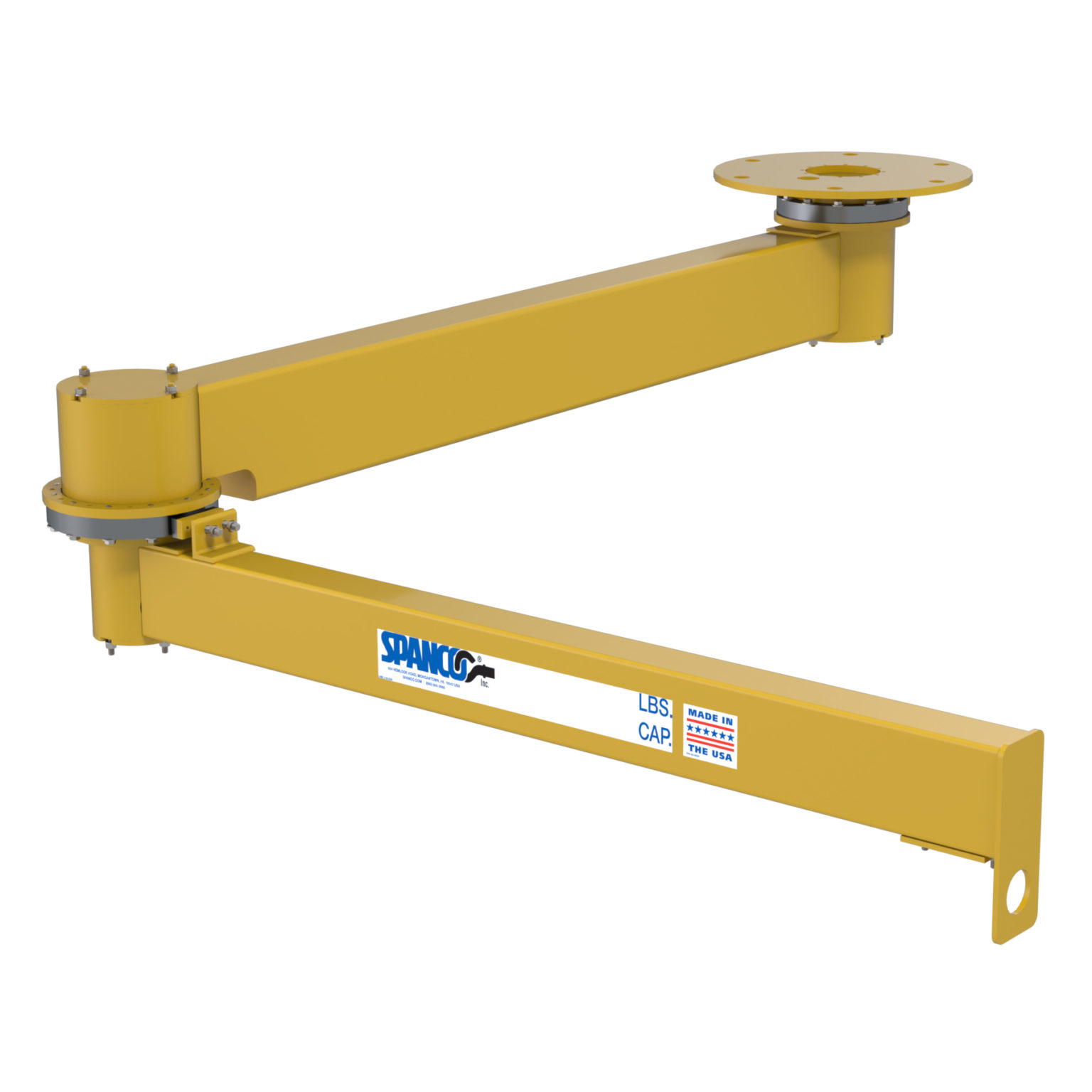

ARTICULATING JIB, CEILING MOUNTED 150 LBS (INDOOR), Capacity: 150 lbs, Span: 8'-0'', Inner Arm Length: 4'-6, Outer Arm Length: 3' - 6'', 400L-8-150

Product Overview

Model: 400L-8-150

Type: Articulating Jib, Ceiling Mounted (Indoor)

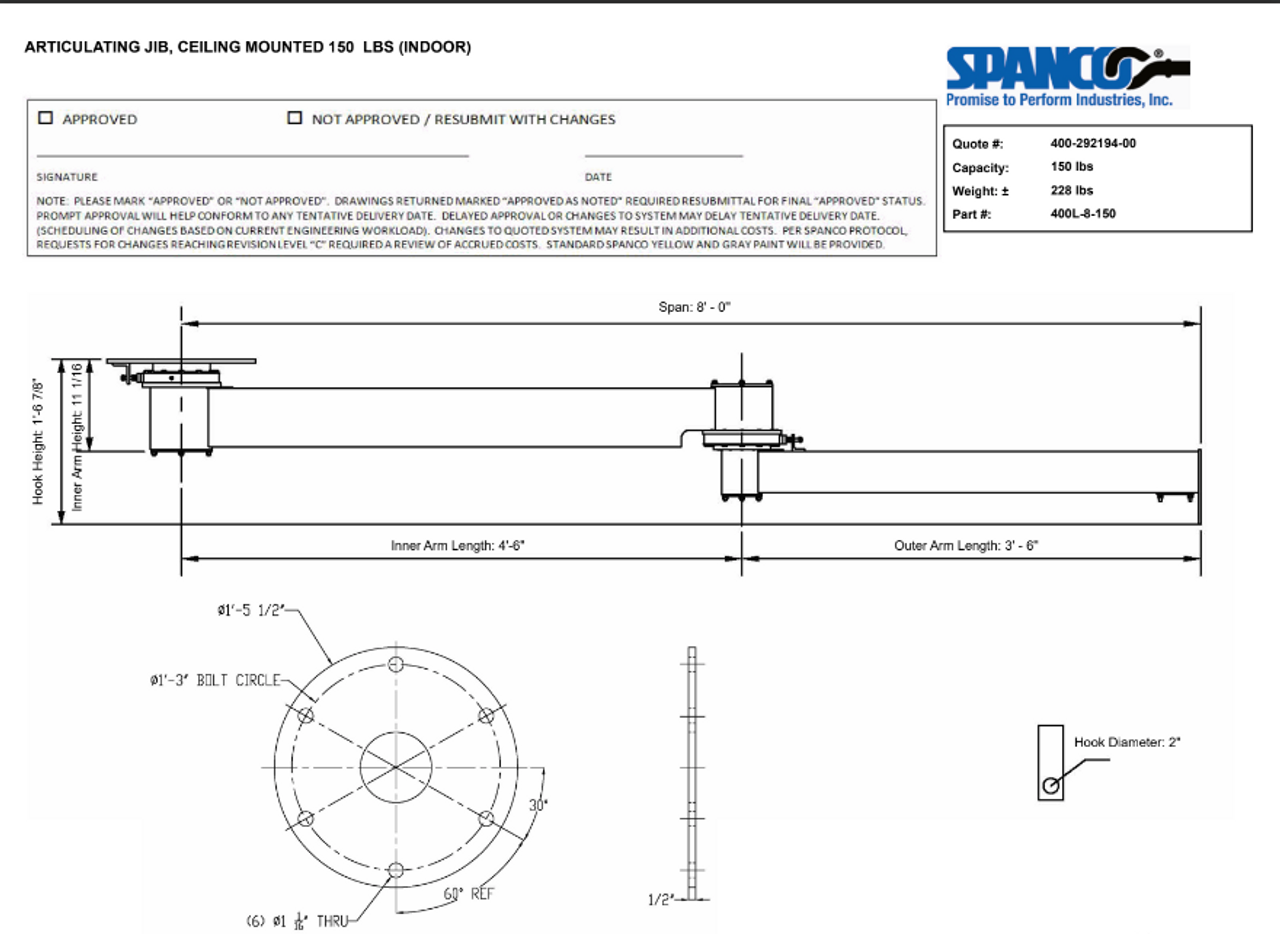

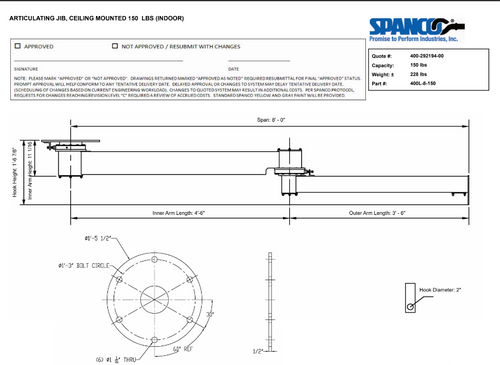

Specifications:

• Capacity: 150 lbs
• Span: 8' - 0''
• Inner Arm Length: 4' - 6''
• Outer Arm Length: 3' - 6''
• Bearing Width: 4 5/8"
• Hook Height: 1' - 6 7/8"
• Hook Diameter: 2"
• Inner Arm Height: 11 1/16"
• Coating & Painting: Painted with spray yellow for visibility and protection

Detailed Specifications:

Capacity:

• Capable of handling a maximum load of 150 lbs, making it ideal for light-duty lifting and material handling tasks.

Span:

• The total span of 8 feet provides an ample range of movement and coverage within the work area, enhancing flexibility in positioning and reaching different points.

Inner Arm Length:

• The inner arm length of 4 feet and 6 inches extends from the mounting point, providing the primary reach of the crane.

Outer Arm Length:

• The outer arm length of 3 feet and 6 inches adds to the crane's maneuverability, allowing for precise positioning of loads.

Bearing Width:

• The bearing width of 4 5/8 inches indicates the space available for rotation and articulation mechanisms, supporting stable and smooth crane operation.

Hook Height:

• The hook height of 1 foot and 6 7/8 inches measures the vertical distance from the mounting point to the lowest point of the hook, ensuring the crane can clear obstacles and position loads accurately.

Hook Diameter:

• The hook diameter of 2 inches is essential for determining the size and type of load attachments compatible with the crane.

Inner Arm Height:

• The inner arm height of 11 1/16 inches contributes to the crane's overall profile and its ability to operate in confined spaces.

Coating & Painting:

• Finished with spray yellow paint, the coating enhances visibility, improving safety by making the crane easily noticeable in the work environment. Additionally, the paint protects the crane from corrosion and wear, extending its service life.

Application:

This articulating jib crane is ideal for indoor environments requiring precise, light-duty lifting and positioning. The ceiling-mounted design saves valuable floor space, promoting efficient utilization of the work area. The articulated arms offer exceptional flexibility, making the crane suitable for tasks involving navigation around obstacles or accessing confined spaces.
