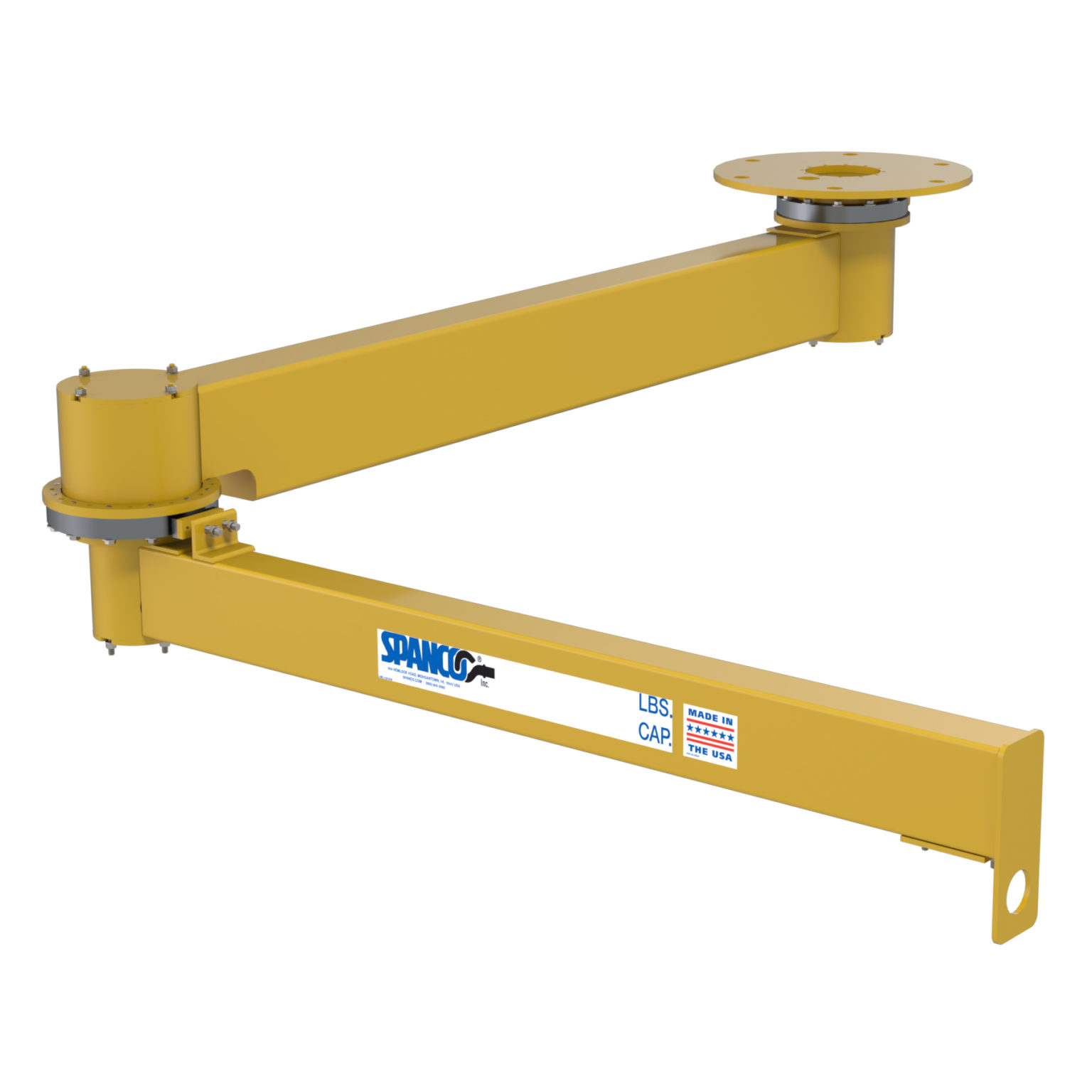

ARTICULATING JIB, CEILING MOUNTED 1000 LBS (INDOOR), Capacity: 1000 lbs, Span: 9'-0'', Inner Arm Length: 4'-6, Outer Arm Length: 3' - 6'', 400M-8-1000

Product Overview

Model: 400M-8-1000

Type: Articulating Jib, Ceiling Mounted (Indoor)

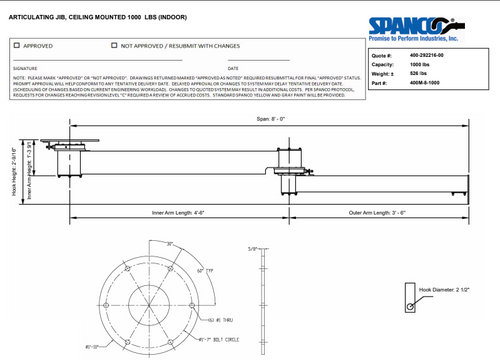

Specifications:

• Capacity: 1000 lbs
• Span: 8' - 0''
• Inner Arm Length: 4' - 6''
• Outer Arm Length: 3' - 6''
• Bearing Width: 5 5/16"
• Hook Height: 2'-9/16"
• Hook Diameter: 2 1/2"
• Inner Arm Height: 1'-3 9/16"
• Finish: Painted with spray yellow for visibility and protection.

Detailed Specifications:

Capacity:

• The crane can handle a maximum load of 1000 lbs, making it suitable for moderate-duty lifting and material handling tasks.

Span:

• The crane's total span is 8 feet. This allows for a compact range of movement and coverage within the work area, providing flexibility in positioning and reaching different points.

Inner Arm Length:

• The length of the inner arm is 4 feet and 6 inches. This arm extends from the mounting point and provides the primary reach of the crane.

Outer Arm Length:

• The outer arm measures 3 feet and 6 inches. This articulating section enhances the crane's maneuverability and ability to position loads with precision.

Bearing Width:

• The bearing width is 5 5/16 inches, indicating the space available for the rotation and articulation mechanisms. This width supports the crane's stability and smooth operation.

Hook Height:

• The hook's height is 2 feet and 9/16 inches, which is the vertical distance from the mounting point to the lowest point of the hook. This height is important for ensuring that the crane can clear obstacles and position loads accurately.

Hook Diameter:

• The hook's diameter is 2 1/2 inches. This specification is crucial for determining the size and type of load attachments that can be used with the crane.

Inner Arm Height:

• The height of the inner arm is 1 foot and 3 9/16 inches. This dimension contributes to the overall profile of the crane and its ability to operate within confined spaces.

Coating & Painting:

• The crane is finished with spray yellow paint. This coating provides visibility, which enhances safety by making the crane easily noticeable in the work environment. Additionally, the paint protects the crane from corrosion and wear, extending its service life.

Application:

This articulating jib crane is ideal for indoor use in environments where precise, moderate-duty lifting and positioning are required. The ceiling-mounted design saves floor space and allows for efficient use of the work area. The articulated arms offer flexibility, making it suitable for tasks that require reaching around obstacles or into confined spaces.
