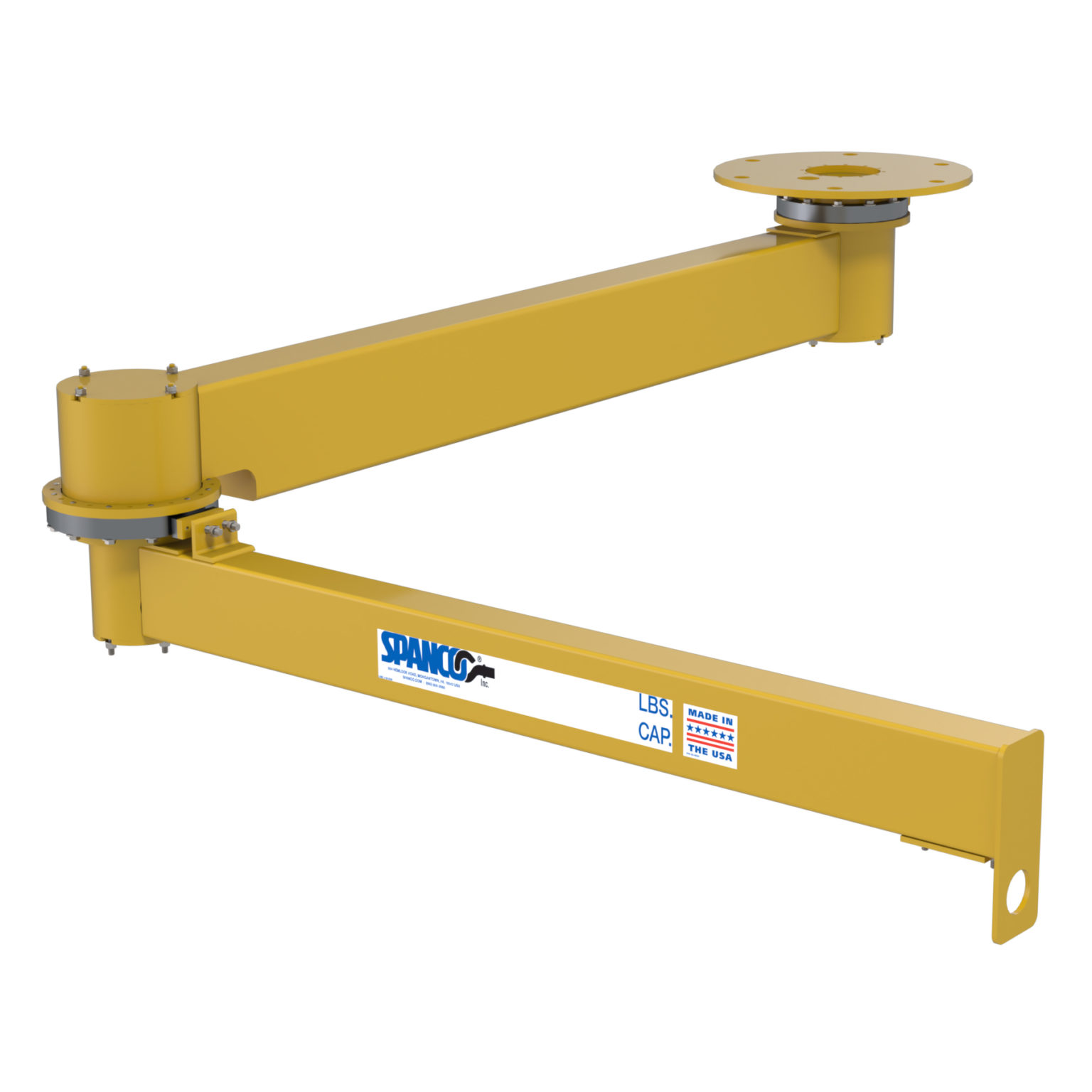

ARTICULATING JIB, CEILING MOUNTED 150 LBS (INDOOR), Capacity: 150 lbs, Span: 14'-0'', Inner Arm Length: 7'-6, Outer Arm Length: 6' - 6'', 400L-14-150

Product Overview

Model: 400L-14-150

Type: Articulating Jib, Ceiling Mounted (Indoor)

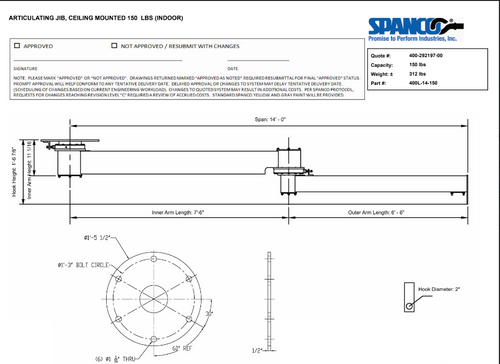

Specifications:

• Capacity: 150 lbs
• Span: 14' - 0''
• Inner Arm Length: 7' - 6''
• Outer Arm Length: 6' - 6''
• Bearing Width: 4 5/8"
• Hook Height: 1' - 6 7/8"
• Hook Diameter: 2"
• Inner Arm Height: 11 1/16"
• Coating & Painting: Painted with spray yellow for visibility and protection.

Detailed Specifications:

Capacity:

• The crane can handle a maximum load of 150 lbs, making it suitable for light-duty lifting and material handling tasks.

Span:

• The crane's total span is 14 feet. This provides a wide range of movement and coverage within the work area, offering flexibility in positioning and reaching different points.

Inner Arm Length:

• The inner arm, which extends from the mounting point and provides the crane's primary reach, is 7 feet and 6 inches long.

Outer Arm Length:

• The outer arm measures 6 feet and 6 inches. This articulating section enhances the crane's maneuverability and ability to position loads with precision.

Bearing Width:

• The bearing width is 4 5/8 inches, indicating the space available for the rotation and articulation mechanisms. This width supports the stability and smooth operation of the crane.

Hook Height:

• The hook's height is 1 foot and 6 7/8 inches, which is the vertical distance from the mounting point to the lowest point of the hook. This height ensures that the crane can clear obstacles and position loads accurately.

Hook Diameter:

• The diameter of the hook is 2 inches. This specification is crucial for determining the size and type of load attachments that can be used with the crane.

Inner Arm Height:

• The height of the inner arm is 11 1/16 inches. This dimension contributes to the overall profile of the crane and its ability to operate within confined spaces.

Coating & Painting:

• The crane is finished with spray yellow paint. This coating enhances visibility, improving safety by making the crane easily noticeable in the work environment. Additionally, the paint protects the crane from corrosion and wear, extending its service life.

Application:

This articulating jib crane is perfect for indoor settings where precise, light-duty lifting and positioning are essential. Its ceiling-mounted design conserves floor space, promoting efficient utilization of the work area. The articulated arms provide exceptional flexibility, making the crane ideal for tasks that involve navigating around obstacles or accessing confined spaces.
