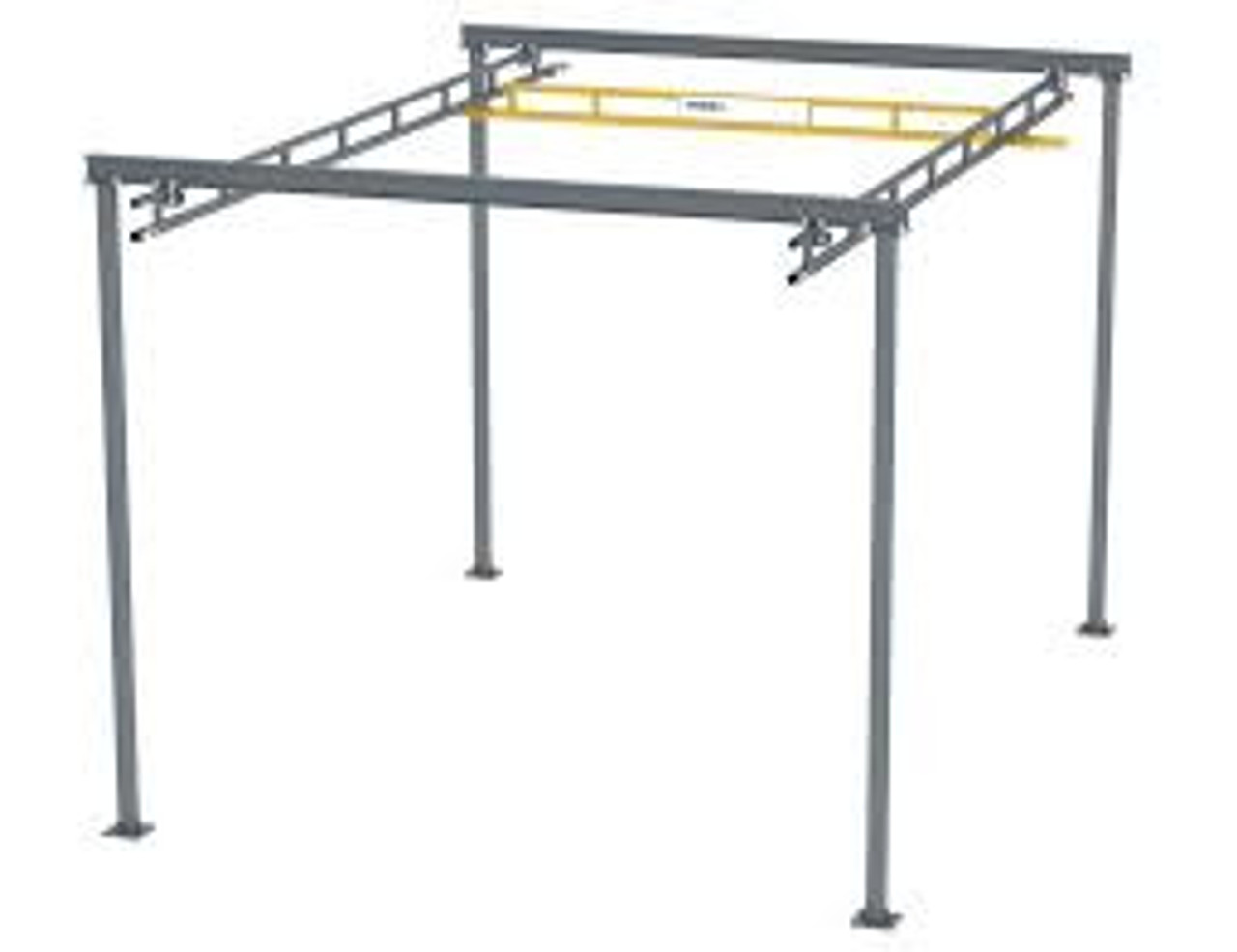

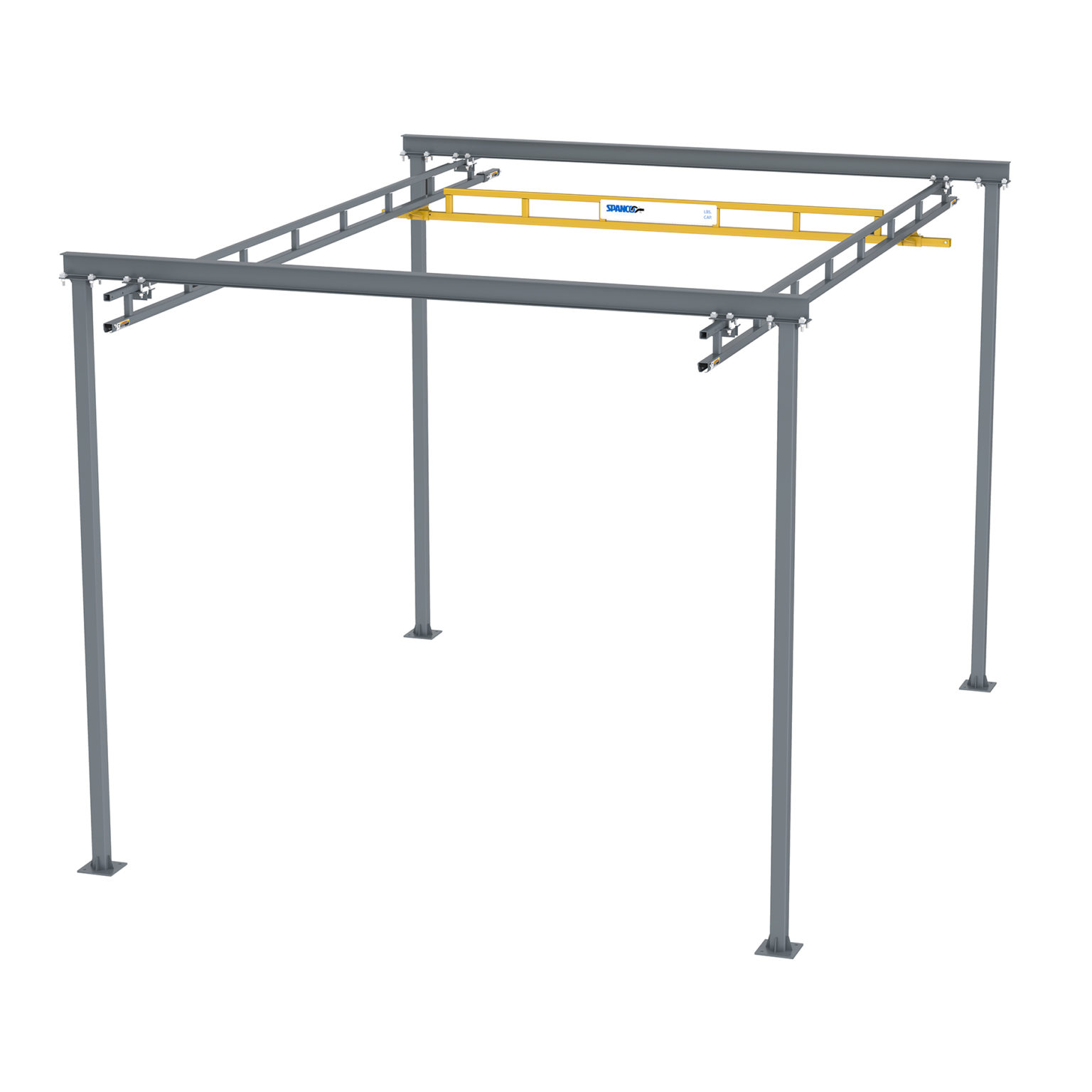

Trussed Bridge Running on Trussed Runways, Bridge Capacity: 2000 lbs, Bridge Length: 20' - 0'', Bridge Span: 18' - 0'' Center of runway to center of runway, TR-20-23-700-FAST-12 SPANCO

Product Overview

• Bridge Capacity: With a capacity of 2000 lbs, this trussed bridge can effectively support heavy loads during material transportation.

• Bridge Length: The bridge spans 20' - 0'', offering ample space for material movement.

• Bridge Span: Measuring 18' - 0'' from the center of one runway to the center of the other, ensuring stability and proper alignment.

• Runway Capacity: Designed to handle loads of up to 2000 lbs, providing robust support for the entire system.

• Runway Length: Totaling 23' - 0'', including left and right runway cantilevers of 18'', enhancing stability and support.

• Number of Bays: Configured with a single bay, simplifying installation and maintenance.

• Support Center: Equipped with a support center positioned at [20' - 0''], ensuring structural integrity and support for the runways and bridge.

• Support Kit: Includes (4) columns and (2) headers, providing stable support for the entire system.

• Trolley Clevis Height: Positioned at a height of 12', facilitating smooth movement of the trolley along the bridge.

• Overall System Height: Stands at 14' - 7'', offering sufficient clearance for materials and equipment passing underneath.

• Overall Width: Spans 21' - 7'', accommodating the width of the bridge and ensuring adequate space for material movement.

• Bridge Festoon Type: Equipped with a FLAT CABLE festoon system, ensuring organized and safe routing of cables along the bridge.

• Runway Festoon Type: Also features a FLAT CABLE festoon system, ensuring efficient cable management along the runways.

• Runway Color: Coated with INDUSTRIAL ENAMEL in gray, providing durability and corrosion resistance.

• Bridge Color: Coated with INDUSTRIAL ENAMEL in yellow, ensuring high visibility and safety during operation.

• Support Kit Color: Also coated with INDUSTRIAL ENAMEL in gray, providing a uniform color scheme and enhancing aesthetics.

Trussed Bridge Running on Trussed Runways
Bridge Capacity: 2000 lbs
Bridge Length: 20' - 0''
Bridge Span: 18' - 0'' Center of runway to center of runway
Runway Capacity: 2000 lbs
Runway Length: 23' - 0'' Includes left runway cantilever of 18'' and right runway cantilever of 18''
Number of Bays: 1
Support Center: [20' - 0'']
Support Kit: Included (4) columns and (2) headers
Trolley Clevis Height: 12'
Overall System Height: 14' - 7''
Overall Width: 21' - 7''
Bridge Festoon Type: FLAT CABLE
Runway Festoon Type: FLAT CABLE
Runway Color: INDUSTRIAL ENAMEL - GRAY
Bridge Color: INDUSTRIAL ENAMEL - YELLOW
Support Kit Color: INDUSTRIAL ENAMEL - GRAY
