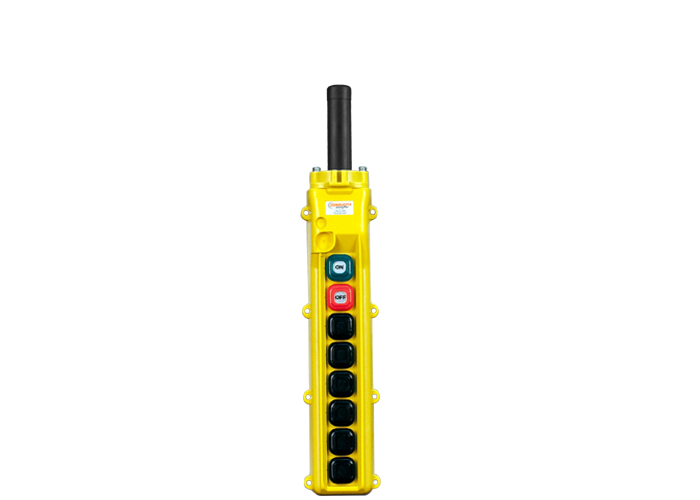

The XA_34240, part of Conductix_Wampfler’s 80_Series, is a fully assembled 8-button push-button pendant designed for industrial indoor environments. It combines six three-speed momentary switches—each offering spring-return detents for precise multi-speed control—with a maintained on/off switch pair (one red/green) for power control. Housed in a two-piece high-impact yellow ABS enclosure, it features UL/cUL certification, double-insulation rated to 2,500_V, and shock resistance up to 100_g. Silicone-booted buttons, a stepped cable bushing (suitable for Ø_7.5–29.5_mm cable), and an integrated S-hook ensure NEMA_4X/IP65 sealing and durable cable support. Weighing approximately 1.68_lb, this pendant is ideal for overhead cranes, hoists, conveyors, and other material-handling equipment requiring flexible, multi-speed momentary operation combined with reliable maintained power switching.
Key Features & Specifications
Button Configuration
6 _ three-speed momentary push-buttons
1 _ maintained on/off pair (red/green)
Enclosure
High-impact yellow ABS, two-piece design
UL/cUL-listed, double-insulated to 2,500_V
NEMA_4X/IP65 rated for indoor use
Switch Ratings & Durability
Rated 5_A @_120/240_VAC, 2_A @_12/24_VDC; shock-resistant up to 100_g; –15_°C to +70_°C range
Cable Strain Relief
Stepped bushing (Ø_7.5–29.5_mm) with integrated S-hook
Weight
approx. 1.68_lb (0.76_kg)
Assembly/Customization Options
Available pre-assembled and/or pre-wired (with pendant cable purchase)
