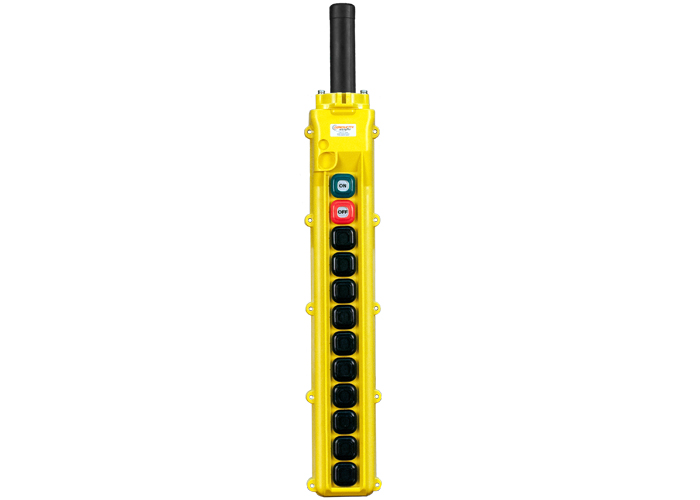

The XA_34258, part of Conductix_Wampfler’s 80_Series 12-button pendants, provides advanced and ergonomic multi-speed control functionality suited for demanding indoor industrial environments. This factory-configured pendant includes:
10 _ three-speed maintained selector switches — each with spring-return detents for precise low/medium/high speed selection
1 _ maintained on/off switch pair (typically red/green) for primary power control
The pendant is enclosed in a two-piece high-impact yellow ABS housing, designed for easy field wiring and durability. It is sealed to NEMA_4X/IP65 standards, making it resistant to dust and moisture, and is UL/cUL-listed for indoor use. Further installation features include silicone-booted buttons, a stepped cable bushing (accommodating Ø_7.5–29.5_mm cables), and an integrated S-hook strain relief.
Weighing in at approximately 2.55_lb, the XA_34258 is optimized for operator comfort and balanced handling. It ships fully assembled with a button legend sheet and wiring jumpers included. Optional pre-wiring services are available when purchased with Conductix pendant cable.
Key Features & Specifications
Feature Specification
Button Configuration 10 _ three-speed maintained selectors
1 _ maintained on/off switch pair
Enclosure High-impact yellow ABS; UL/cUL-listed; sealed NEMA_4X/IP65
Cable Strain Relief Stepped cable bushing (Ø_7.5–29.5_mm) + S-hook
Weight Approx. 2.55_lb
Assembly Factory-assembled, includes legend sheet and jumpers; optional pre-wiring with cable
Ideal for controlling overhead cranes, conveyors, hoists, and other automated systems where robust, multi-speed maintained functionality and reliable power control are essential.
