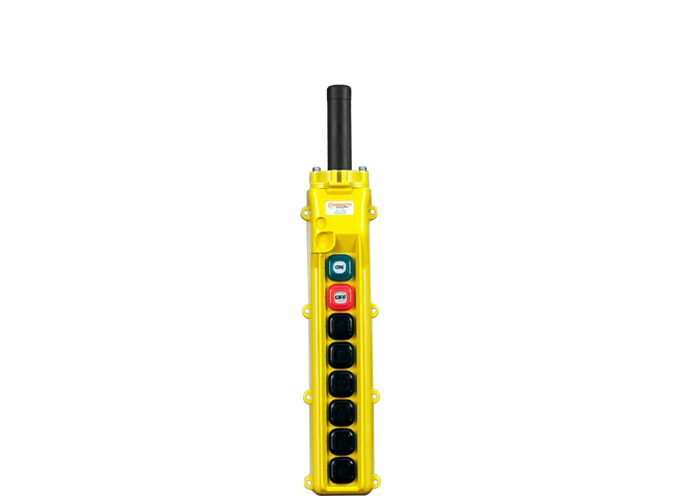

80 Series 8-button Pendant with six single-speed switches and maintained on/off Conductix XA-34236

The XA_34236, part of Conductix_Wampfler’s 80_Series, is a factory-assembled 8-button pendant designed for industrial indoor use. It combines six single-speed maintained pushbuttons with one maintained on/off pair (red/green), offering a straightforward and reliable control layout ideal for applications requiring both function control and power switching. Encased in a durable two-piece, high-impact yellow ABS housing, the pendant is fully sealed and shock-resistant, complete with silicone-booted buttons, stepped cable bushing, and integrated S-hook strain relief. Rated NEMA_4X/IP65 and UL/cUL-listed, it's purpose-built for dusty, damp industrial environments while weighing approximately 1.66_lb Key Features & Specifications Button Configuration: 6 _ maintained single-speed pushbuttons 1 pair of maintained on/off switches (1 NO + 1 NC) Enclosure & Protection: High-impact yellow ABS; UL/cUL-listed Sealed to NEMA_4X/IP65 for indoor environments Two-piece design simplifies field wiring Shock-resistant up to 100_g Cable Strain Relief: Stepped cable bushing (Ø_7.5–29.5_mm) with integrated S-hook Switch Ratings: 5_A @ 120/240_VAC; 2_A @ 12/24_VDC; 4_A @ 120_VDC Operating temp: –15_°C to +70_°C Weight: Approx. 1.66_lb (weight listed on site) Ideal for overhead cranes, hoists, conveyors, assembly lines, and industrial equipment needing a combination of function pushbuttons and maintained power control in a sealed pendant package
