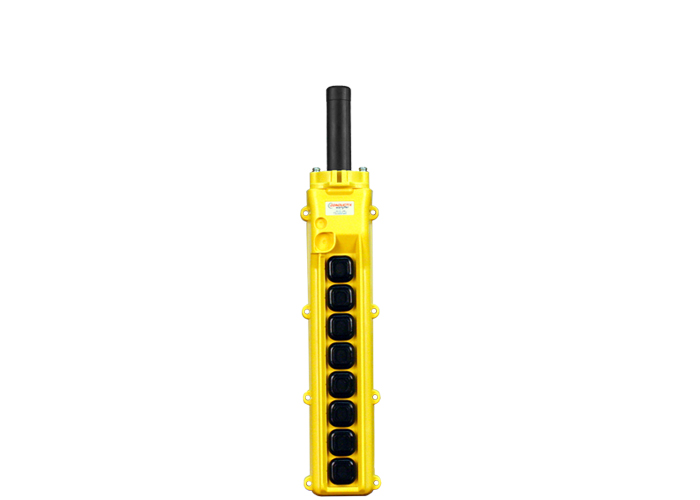

The XA_34243, part of Conductix_Wampfler’s 80_Series, is a fully assembled 8-button pendant designed to provide precise eight-way control through three-speed momentary switches. Enclosed in a two-piece high-impact yellow ABS housing, it ensures both functionality and durability in industrial environments. The pendant features silicone_booted buttons, a stepped cable bushing, and an S_hook strain-relief, and carries an IP65/NEMA_4X rating for indoor use only.
Key Features & Specifications
Button Configuration:
8 _ three-speed momentary push-buttons (detented switches for precise speed control)
Enclosure:
High-impact yellow ABS; UL/cUL-listed; NEMA_4X/IP65 rated for indoor environments
Two-piece design for simplified field wiring
Switch Performance:
Contacts rated at 5_A (120/240_VAC), 2_A (12/24_VDC), and 4_A (120_VDC)
Shock resistant to 100_g; temperature range from –15_°C to +70_°C (5_°F–160_°F)
Cable Strain Relief:
Integrated stepped cable bushing (fits Ø_7.5–29.5_mm cables) with S-hook
Sealing & Durability:
Silicone button boots for dust and moisture protection
Double-insulated housing withstands up to 2,500_V; UL/cUL listed for indoor use only
Weight:
Approximately 1.95_lb
Ideal for industrial systems—such as overhead cranes, hoists, monorails, conveyors, and assembly lines—that demand sophisticated, multi-speed momentary control with robust environmental protection and ergonomic design
