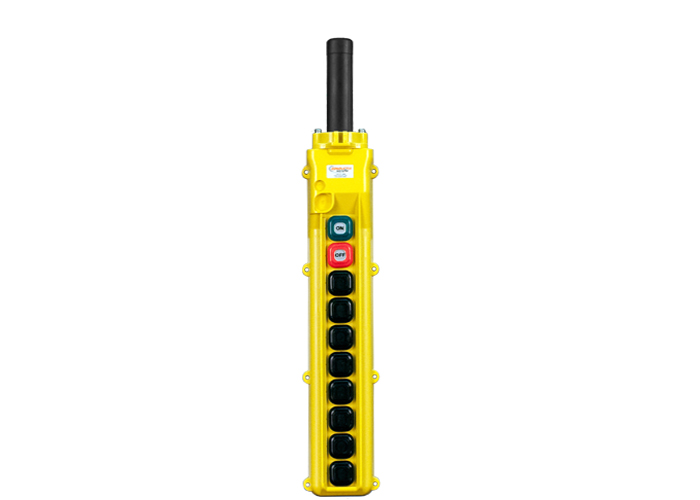

The XA_34248, part of Conductix_Wampfler’s premium 80_Series, is a factory-assembled 10_button pendant engineered for precise momentary control across multiple functions. Its configuration includes:
8 _ three-speed momentary switches — spring-return with detents for low/medium/high speed operation
1 _ momentary on/off switch pair (typically red/green) for instant power control
All switches are mounted within a two-piece high-impact yellow ABS enclosure, fully sealed to NEMA_4X/IP65 standards and UL/cUL-listed for indoor environments. The pendant includes silicone-booted buttons, a stepped cable bushing accommodating Ø_7.5–29.5_mm cable, and an integrated S-hook strain relief for secure cable handling. This “momentary on/off” version touts responsive shutoff features without latching, ideal for operational safety. The unit weighs approximately 2.22_lb.
Key Features & Specifications
Feature Specification
Button Configuration 8 _ three-speed momentary switches
1 _ momentary on/off switch pair
Enclosure Yellow ABS; two-piece design; UL/cUL-listed; NEMA_4X/IP65 for indoor use
Cable Strain Relief Stepped bushing for Ø_7.5–29.5_mm cable, integrated S-hook
Weight Approx. 2.22_lb
This pendant is ideal for operator control in overhead cranes, hoists, conveyors, and automated industrial equipment requiring nuanced multi-speed control with momentary power switching in a sealed, ergonomic package. Let me know if you'd like wiring diagrams, legend customization, or accessory options!
