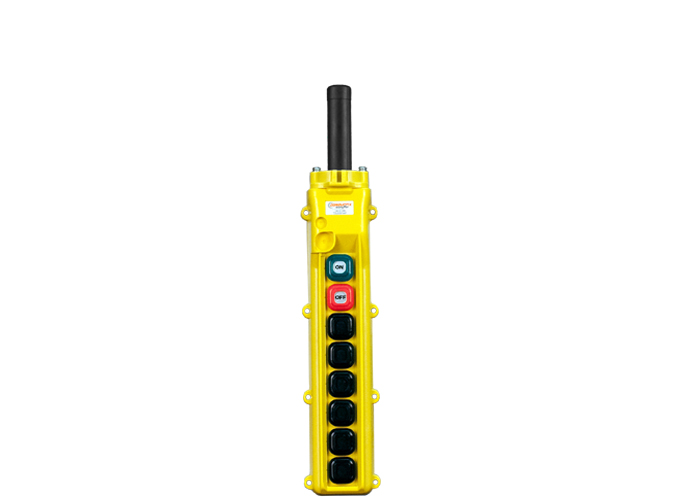

80 Series 8-button Pendant with six three-speed switches and momentary on/off Conductix XA-34239

The XA_34239, part of Conductix_Wampfler’s 80_Series, is a factory-assembled pendant control station offering eight functions through the following switch configuration: 6 _ three-speed momentary pushbuttons (spring-return with detents for variable speed control) 1 _ momentary on/off switch pair (red/green) Built for indoor industrial applications, the unit is housed in a two-piece high-impact yellow ABS enclosure, providing: Full sealing to NEMA_4X/IP65 standards with silicone-booted buttons and stepped cable bushing (Ø_7.5–29.5_mm) Cable strain relief via integrated bushing with S-hook Electrical durability—double-insulated to 2,500_V; switches rated 5_A at 120/240_VAC and 2_A at 12/24_VDC Environmental resilience—shock-resistant up to 100_g; operational from –15_°C to +70_°C Indoor-only rating and UL/cUL listing The pendant weighs approximately 1.71_lb and includes optional pre-assembly and pre-wiring services when purchased with pendant cable. Key Features & Specifications Button Configuration: 6 _ three-speed momentary switches 1 _ momentary on/off pair Enclosure: Yellow ABS, UL/cUL-listed, NEMA_4X/IP65 indoor-rated Cable Strain Relief: Stepped bushing with S-hook Electrical Ratings: 5_A @ 120/240_VAC; 2_A @ 12/24_VDC; 4_A @ 120_VDC Durability: Shock resistance to 100_g; operating range –15_°C to +70_°C Weight: Approx. 1.71_lb Options: Available pre-assembled and/or pre-wired; button legend sheets and jumpers included when assembled Ideal for controlling overhead cranes, hoists, conveyors, and other material-handling equipment where flexible, multi-speed momentary operation alongside power control is required.
