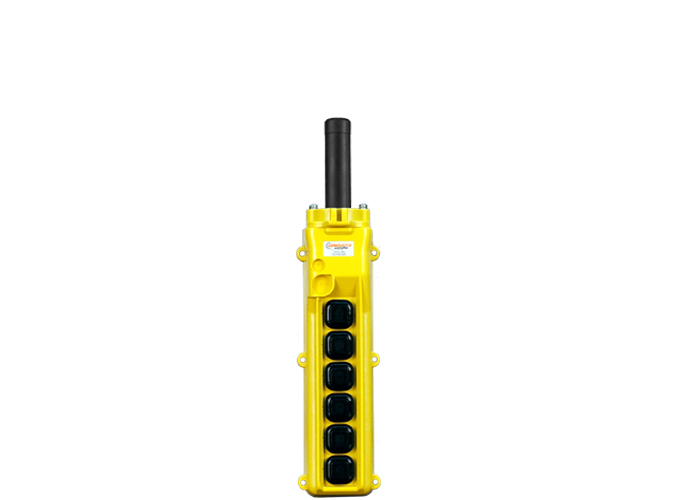

The XA_34234 is a premium 80_Series push-button pendant, designed for demanding industrial control environments such as overhead cranes, hoists, monorails, and conveyor systems
Key Features:
Six three-speed, momentary switches – ‘easy-force’ buttons with tactile detents enable precise speed selection across three levels, ideal for nuanced motor control
Durable sealed enclosure – bright yellow ABS case resists impact (up to 100_g) and features double insulation to 2,500_V; rated for indoor use at –15_°C to 70_°C (5_°F to 160_°F); NEMA_4X/IP65 rated thanks to silicone-booted buttons and stepped cable gland with S_hook strain relief
Standard switch ratings – contacts rated at 5_A (120/240_VAC), 2_A (12/24_VDC), and 4_A (120_VDC)
Modular & customizable – two-piece enclosure allows easy field wiring; supports optional knock-outs for lamp/horn switches, custom legends, grounding bushings, and jumper pre-installation on assembled units
Fully assembled or pre-wired – available pre-assembled with cable gland and legends; pre-wiring is offered when ordered with pendant cable for plug-and-play installation
With a compact yet robust design, the XA_34234 offers versatile three-speed control tailored to heavy-duty material handling and assembly operations, combining operator comfort, safety, and configuration flexibility.
