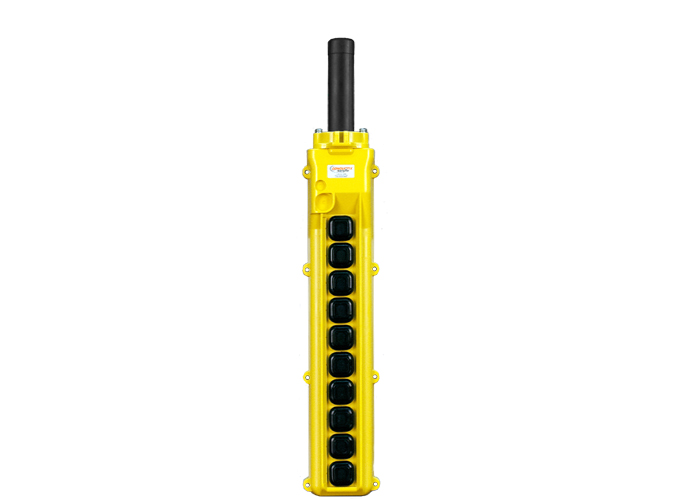

80 Series 10-button Pendant with ten three-speed switches Conductix XA-34252

The XA_34252, part of Conductix_Wampfler’s 80_Series, is a fully assembled 10-button pendant control station optimally designed for complex industrial environments demanding multi-speed functionality. It includes: 10 _ three-speed maintained selector switches — each switch provides spring-return positions for precise low/medium/high speed selections. These switches are housed within a high-impact yellow ABS enclosure, featuring a durable two-piece design that simplifies assembly and field wiring. The pendant is sealed to NEMA_4X/IP65 standards and UL/cUL-listed for indoor use, offering full protection against dust and water ingress. Additional key features include silicone-booted buttons, an integrated stepped cable bushing (accepting Ø_7.5–29.5_mm cables), and S-hook strain relief to secure cable connections. The unit’s approximate weight is 2.25_lb (1.02_kg). Conductix_Wampfler also offers optional pre-assembly and pre-wiring services when purchased with pendant cable, enabling seamless and rapid installation. Key Features & Specifications Feature Specification Switch Configuration 10 _ three-speed maintained selector switches Enclosure Yellow ABS, two-piece; UL/cUL-listed; sealed NEMA_4X/IP65 (indoor use) Cable Strain Relief Stepped cable bushing (Ø_7.5–29.5_mm) with integrated S-hook Weight Approx. 2.25_lb (1.02_kg) Assembly Options Factory assembled; optional pre-wiring available with pendant cable
