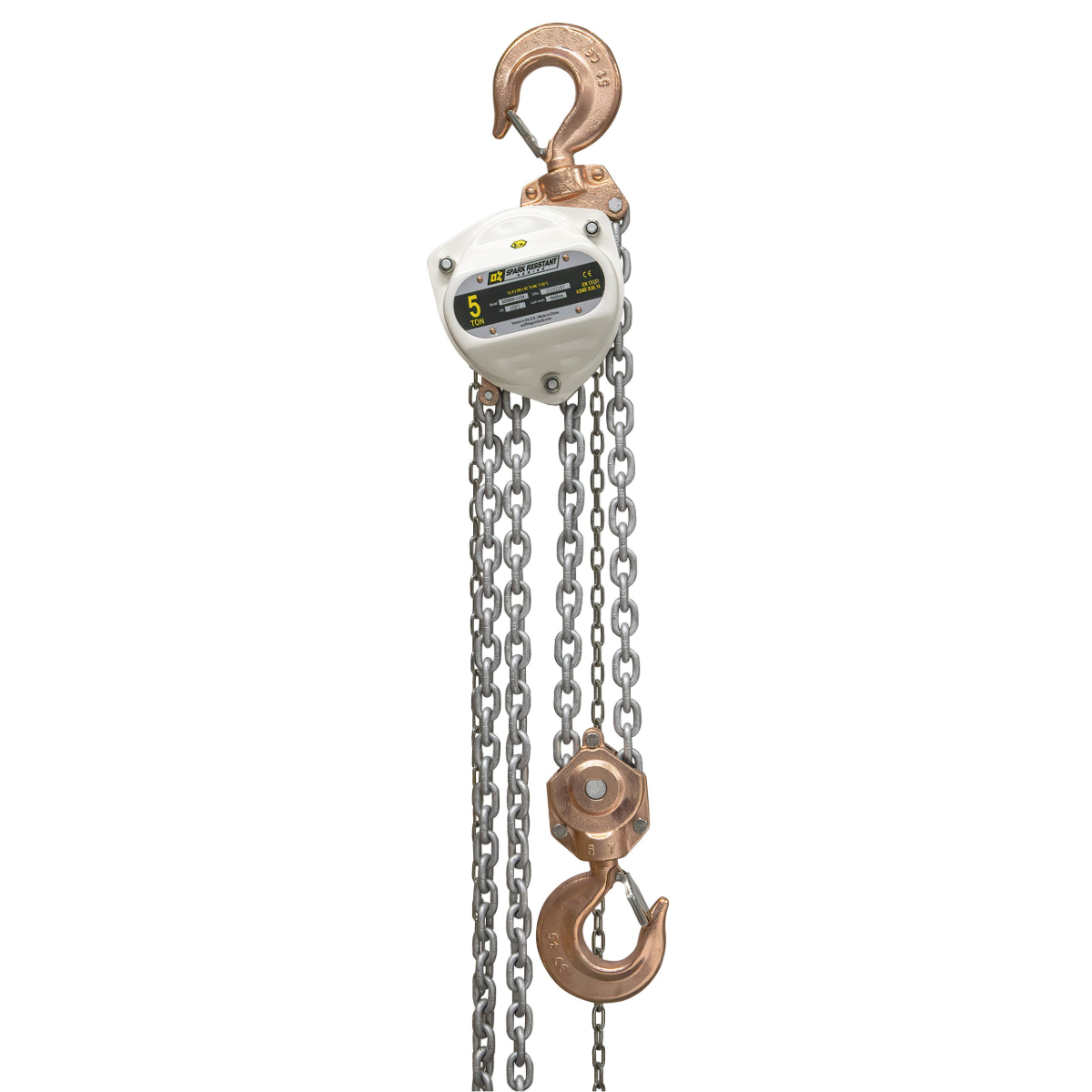

The OZSR050-15CH Spark Resistant Chain Hoist is purpose-built for maximum safety and dependability in hazardous or explosive environments. With a 5-ton (10,000 lbs) load capacity and a 15-foot lift height, this heavy-duty hoist ensures smooth, reliable lifting performance while adhering to the most stringent international safety standards. It’s specifically engineered for industries where combustible gases, vapors, or dust particles are present, such as chemical plants, oil refineries, paint facilities, and grain processing operations.

Designed in accordance with the EU ATEX94/9/EC and Machinery Directive 2006/42/EC, the OZSR050-15CH meets an explosion-proof rating of EX II2 GD c IIIC T135°C. This certification makes it suitable for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) classified areas. Each component is built to prevent spark generation, ensuring maximum safety and compliance in hazardous locations.

Constructed with spark-resistant materials, including bronze hooks, brass gears, and stainless steel components, this hoist minimizes friction and static buildup that could cause ignition. The Grade 80 stainless steel load chain delivers exceptional strength and corrosion resistance, providing consistent performance even in harsh industrial environments.

The Weston-style mechanical load brake system, equipped with twin pawl protection, ensures precise control and dependable load holding during lifting and lowering. Operators benefit from a smooth and controlled hand chain operation, designed to reduce fatigue while maintaining accuracy and safety. The hoist’s fully enclosed steel body protects internal components from dust, moisture, and environmental contaminants, extending its working life and reducing maintenance requirements.

The OZSR050-15CH also features swivel top and bottom hooks with safety latches, allowing for flexible load positioning and secure attachment. Its powder-coated finish enhances corrosion protection, while the manual operation eliminates electrical ignition risks, making it the ideal lifting solution for explosive-prone worksites.

Key Features

• Capacity: 5 Ton (10,000 lbs)

• Lift Height: 15 ft

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Compliance: ATEX94/9/EC & Machinery Directive 2006/42/EC

• Hazard Zones: Zone 1 & 2 (Gas) / Zone 21 & 22 (Dust)

• Construction: Spark-resistant components (bronze, brass, stainless steel)

• Load Chain: Grade 80 stainless steel – high tensile strength & corrosion-resistant

• Brake System: Weston-style mechanical brake with twin pawl design

• Operation: Manual hand chain for safe, controlled lifting

• Hooks: Swivel bronze hooks with safety latches

• Housing: Fully enclosed steel casing

• Finish: Powder-coated for durability and corrosion resistance

Applications

Ideal for:

• Oil & Gas Refineries

• Chemical & Petrochemical Facilities

• Paint & Coating Plants

• Pharmaceutical Production

• Grain & Food Processing Plants

• Marine & Offshore Operations
