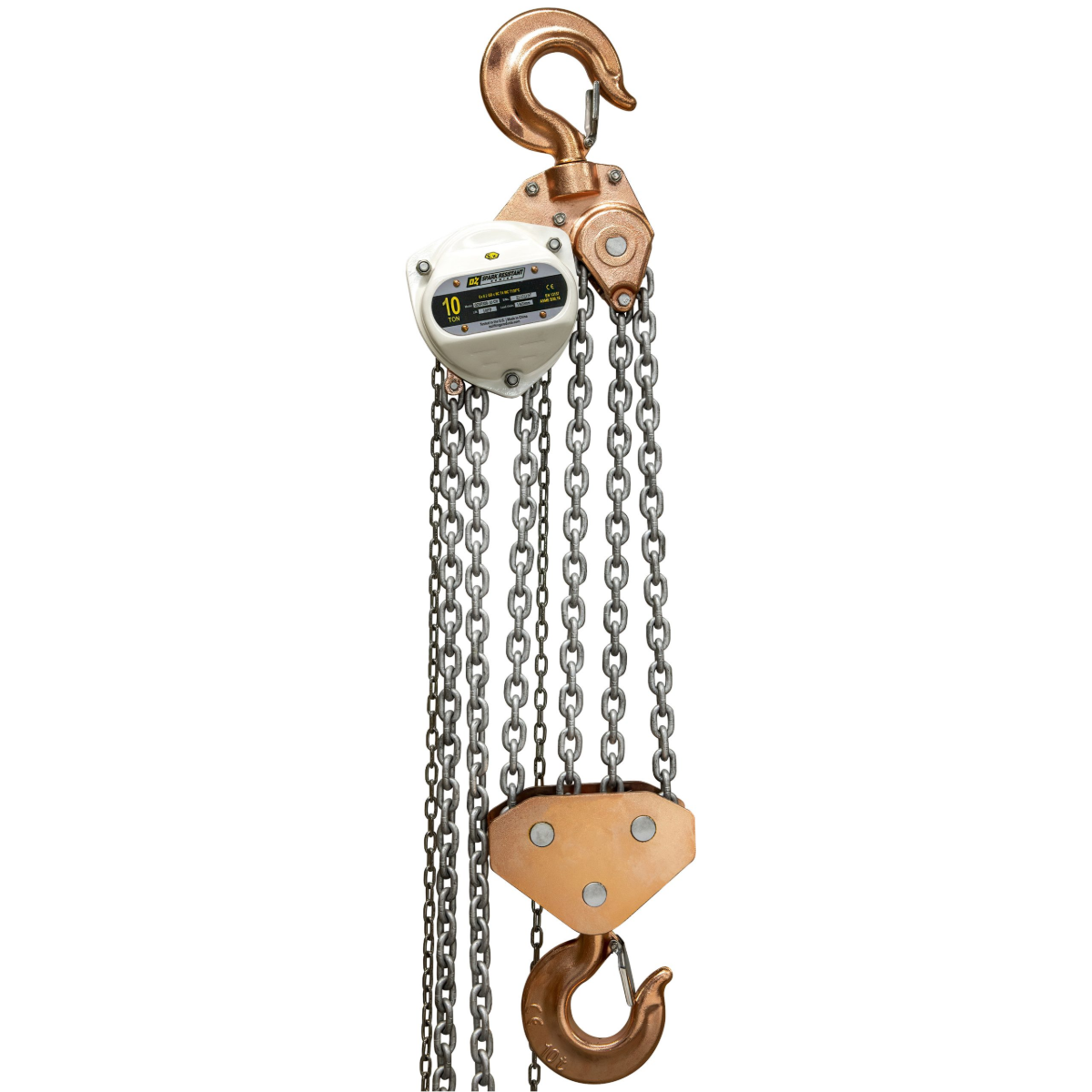

The OZSR100-15CH Spark Resistant Chain Hoist is engineered for maximum lifting performance and safety in hazardous industrial environments. With an impressive 10-ton (20,000 lbs) capacity and a 15 ft lift height, this explosion-proof manual chain hoist ensures dependable, spark-free operation in areas where flammable gases, vapors, or dust may be present. Designed to meet ATEX94/9/EC and Machinery Directive 2006/42/EC standards, it achieves an explosion-proof classification of EX II2 GD c IIIC T135°C, guaranteeing compliance and peace of mind in high-risk applications.

Built specifically for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) environments, this hoist provides a safe and reliable lifting solution for industries such as oil and gas, chemical processing, mining, pharmaceuticals, food production, and marine operations. The spark-resistant construction utilizes non-ferrous materials including bronze hooks, brass gears, and stainless steel load chains, eliminating the risk of spark generation during operation.

The OZSR100-15CH combines rugged all-steel housing with a fully enclosed gearing system to protect internal components from dust, moisture, and contaminants. This ensures long-term durability and consistent performance, even in corrosive or abrasive conditions. Its Grade 80 stainless steel load chain offers high tensile strength, smooth operation, and superior corrosion resistance—ideal for demanding, moisture-prone environments.

Ease of operation is a key feature of this hoist. The precision-machined hand chain wheel allows for smooth and effortless lifting with minimal manual effort. The Weston-style mechanical brake system provides secure load control and prevents unintentional lowering, ensuring operator safety during critical lifting or positioning tasks. Both top and bottom swivel hooks include safety latches, allowing for secure load attachment and preventing accidental disengagement.

Because it operates manually, the OZSR100-15CH eliminates the risks associated with electrical components, making it the perfect choice for environments where electrical sparks could pose a danger. Its explosion-proof design, robust build, and ease of maintenance make it a cost-effective, long-lasting solution for companies prioritizing safety and performance.

Key Features

• Capacity: 10 Ton (20,000 lbs)

• Lift Height: 15 ft

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Certifications: ATEX94/9/EC and Machinery Directive 2006/42/EC compliant

• Hazard Zones: Zone 1 & 2 (Gas) / Zone 21 & 22 (Dust)

• Construction: Spark-resistant materials including bronze, brass, and stainless steel

• Load Chain: Grade 80 stainless steel for strength and corrosion protection

• Brake System: Weston-style mechanical brake for secure load control

• Hooks: Swivel top and bottom hooks with safety latches for safe load handling

• Body: Fully enclosed steel housing to protect internal gears and components

• Operation: Manual hand chain – no electrical components for added explosion protection

Applications

• Oil and Gas Refineries

• Petrochemical and Chemical Plants

• Grain Mills and Silos

• Paint, Solvent, and Coatings Industries

• Pharmaceutical Manufacturing

• Food and Beverage Processing

• Marine and Offshore Environments
