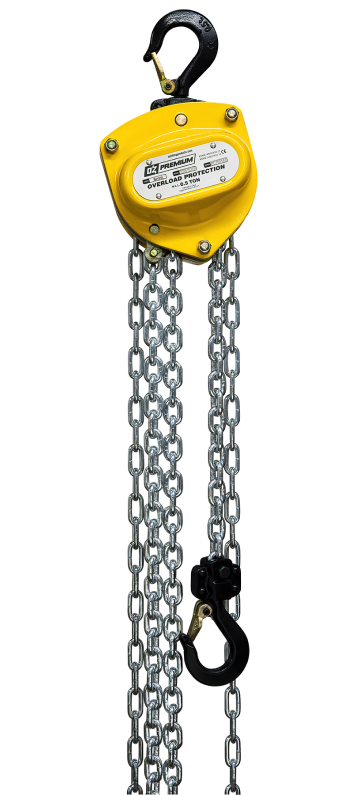

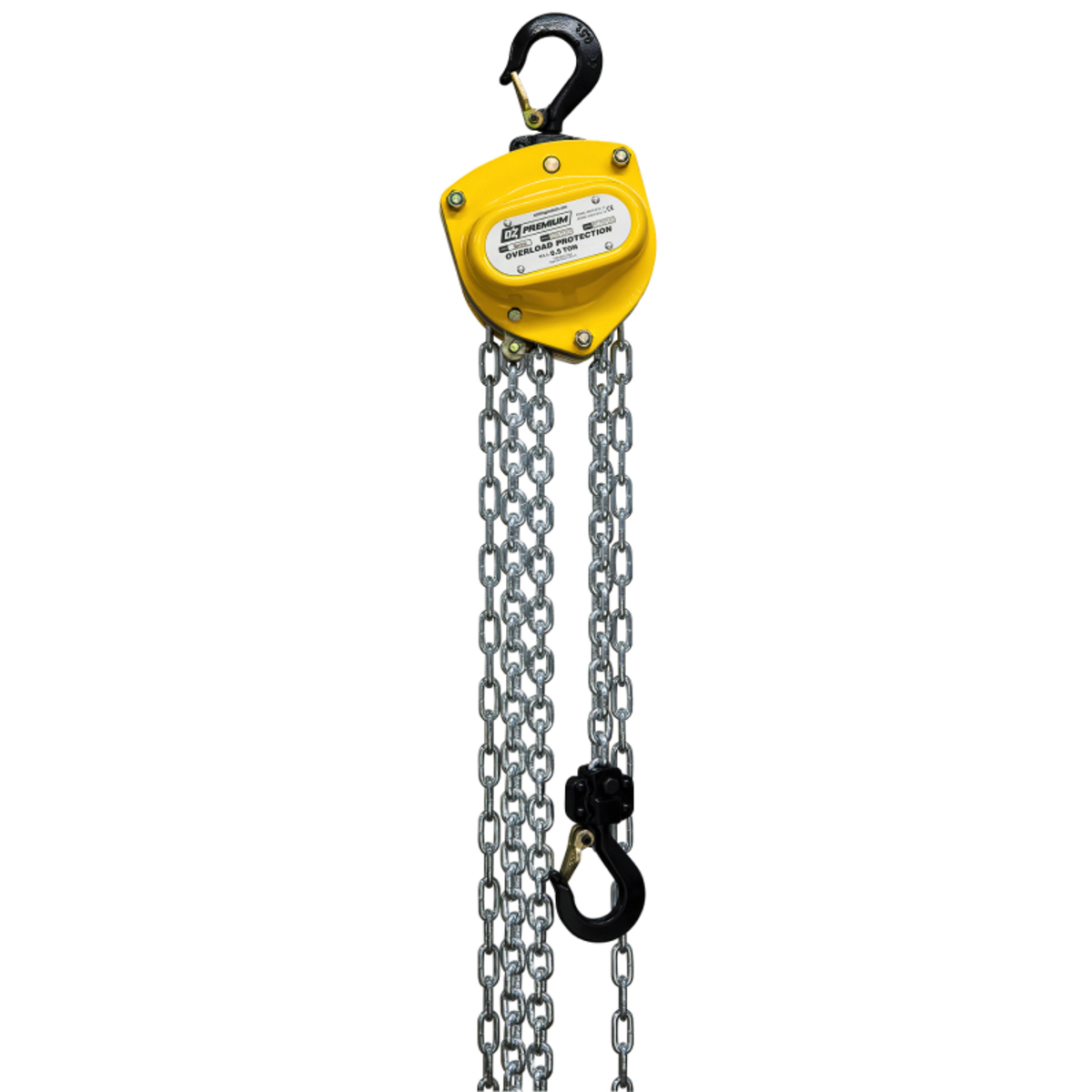

The OZ005-30CHOP Premium Chain Hoist delivers dependable lifting and pulling power with a 0.5-ton (1,000 lb) capacity and built-in Standard Overload Protection, preset at approximately 150% of the rated load. Designed for smooth operation and safety, it features double-reduction gearing that minimizes lifting effort and a unique hand-wheel design for seamless chain feed from multiple angles. Its all-steel construction with a durable powder-coated finish ensures lasting performance, even in the most demanding environments.

Product Description

The OZ Lifting Products OZ005-30CHOP Premium Chain Hoist combines safety, precision, and durability to deliver top-tier lifting performance for industrial and commercial applications. Engineered for reliability and efficiency, this 0.5-ton (1,000 lb) hoist is ideal for environments where frequent lifting, pulling, or positioning of materials is required—such as construction, maintenance, manufacturing, and utilities.

At the heart of this model is its Standard Overload Protection (SOP) system, preset at about 150% of the rated load. This built-in feature prevents accidental overloading and protects both the operator and the hoist from excessive strain or damage, ensuring safe and consistent operation.

The double-reduction gearing allows for effortless lifting with minimal manual force, offering smooth and controlled load handling. Its innovative hand-wheel design enables the hand chain to feed freely and smoothly from any direction, giving operators flexibility when working in confined or elevated areas.

Constructed with high-strength, all-steel components, the OZ005-30CHOP is built for long-term durability. Its powder-coated finish protects against rust and wear, while the fully enclosed gearing and sealed roller bearings safeguard internal mechanisms from dust, moisture, and contaminants. The Weston-style mechanical brake system with twin pawl design provides secure load holding and reliable stopping power under any load condition.

The hoist also features forged alloy steel hooks with safety latches for dependable load engagement and a zinc-plated, heat-treated load chain designed to handle repeated stress and resist corrosion. Every OZ Lifting hoist meets or exceeds ASME B30.16 and OSHA safety standards, ensuring you receive a product that upholds the highest safety and quality benchmarks.

Whether lifting equipment in a plant, tensioning lines in the field, or securing loads during setup, the OZ005-30CHOP offers the strength, safety, and versatility professionals demand.

Specifications

• Model: OZ005-30CHOP

• Type: Premium Chain Hoist with Standard Overload Protection

• Rated Capacity: 0.5 Ton (1,000 lbs)

• Lift Height: 30 ft

• Overload Protection: Factory preset at approximately 150% of rated load

• Brake System: Weston-style mechanical brake with twin pawl design

• Gearing: Double-reduction gearing for smooth, low-effort operation

• Hand-Wheel Design: Allows multi-directional hand chain feed

• Construction: Heavy-duty all-steel body with powder-coated finish

• Load Chain: Zinc-plated, heat-treated alloy steel for superior strength

• Hooks: Forged alloy steel top and bottom hooks with safety latches

• Bearings: Sealed roller bearings for smooth, maintenance-free use

• Gear Enclosure: Fully enclosed for protection against dirt and debris

• Operation Type: Manual lifting and pulling

• Compliance: Meets or exceeds ASME B30.16 and OSHA safety standards

• Applications: Ideal for maintenance, construction, fabrication, utilities, and material handling

Key Features

• 0.5-ton (1,000 lb) load capacity with 30 ft lift height

• Standard Overload Protection preset at 150% of rated load

• Double-reduction gearing ensures low-effort, smooth operation

• 360° hand-wheel feed allows flexible use in any direction

• All-steel construction with powder-coated finish for long-term durability

• Weston-style mechanical brake for secure load control

• Zinc-plated alloy steel chain resists rust and wear

• Forged safety hooks with positive latches prevent unintentional release

• Sealed bearings and enclosed gears ensure maintenance-free reliability

• Compliant with OSHA and ASME standards for industrial-grade performance
