Ensure safe and efficient lifting in hazardous environments with the Spark Resistant Push Beam Trolley (3T) from OZ Lifting Products. Certified under ATEX94/9/EC and Machinery Directive 2006/42/EC, this trolley meets explosion-proof standards up to EX II2 GD c IIIC T135°C. With a 3-ton capacity, it is ideal for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas, ensuring reliable material handling and maximum safety in environments where spark prevention is essential.

Product Description

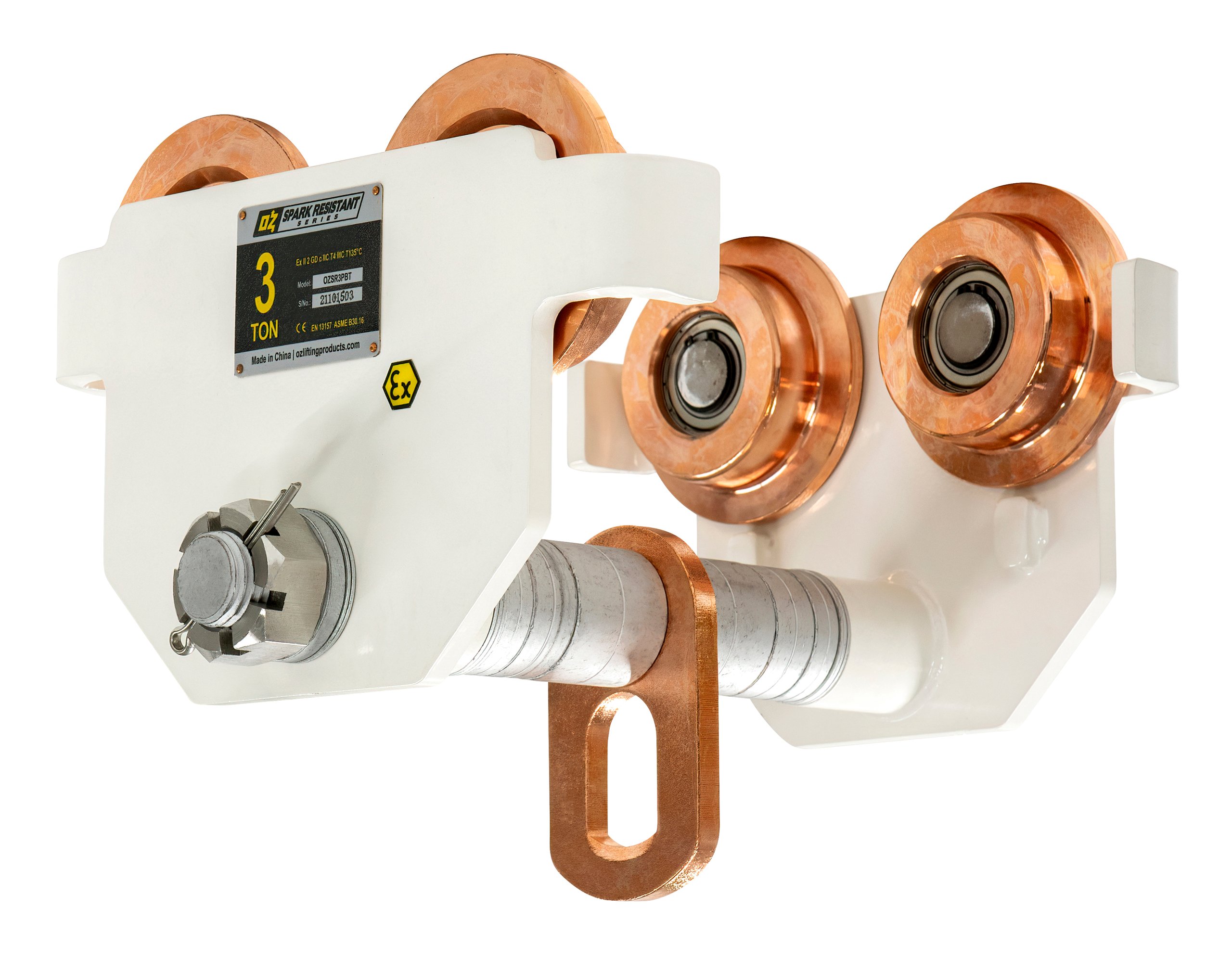

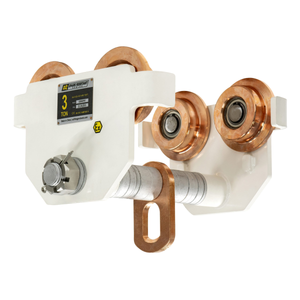

The OZSR3PBT Spark Resistant Push Beam Trolley (3 Ton) from OZ Lifting Products is purpose-built for industries where explosion risk is a daily concern. Engineered for safety, durability, and compliance, this trolley is ideal for chemical plants, refineries, paint manufacturing, food processing, and pharmaceutical facilities, where the presence of flammable gases or dust demands spark-resistant equipment.

This heavy-duty beam trolley meets strict European safety certifications, including ATEX94/9/EC and Machinery Directive 2006/42/EC, with an explosion-proof classification of EX II2 GD c IIIC T135°C. This means it can be safely operated in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas—environments defined by potentially explosive atmospheres.

The 3-ton capacity allows for efficient handling of substantial loads while maintaining safety and precision. Constructed with spark-resistant bronze and brass components, the OZSR3PBT prevents friction-induced ignition, ensuring safety during every operation. The stainless steel frame offers corrosion resistance, making it a long-lasting solution even in harsh or chemically active environments.

The manual push mechanism provides smooth and controlled movement across the beam without the need for electrical power—eliminating the risk of static discharge or sparks. Additionally, bronze wheels with sealed precision bearings allow for effortless travel and reduced maintenance. An adjustable flange width makes it compatible with a wide range of beam profiles, adding installation flexibility.

Safety is at the heart of this design. The anti-drop plates and wheel guard systems enhance operator protection by preventing accidental disengagement or derailment during lifting operations. The trolley’s low-maintenance design ensures consistent performance while minimizing downtime.

With the OZSR3PBT, you get a perfect balance of safety, performance, and reliability—essential for industries that operate in volatile or hazardous zones. This trolley demonstrates OZ Lifting Products’ commitment to producing equipment that prioritizes both operator safety and operational efficiency.

Specifications

• Model: OZSR3PBT

• Capacity: 3 Ton (6,600 lbs)

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Compliance Standards: ATEX94/9/EC and Machinery Directive 2006/42/EC

• Zones of Operation: Zone 1 & 2 (Gas) / Zone 21 & 22 (Dust)

• Construction: Spark-resistant bronze and brass components

• Frame Material: High-grade stainless steel for corrosion resistance

• Operation Type: Manual push trolley (non-electric for spark prevention)

• Beam Compatibility: Suitable for I-, S-, and W-beams

• Flange Width Adjustment: Tool-free adjustable design for versatile fitting

• Wheels: Precision-machined bronze wheels for smooth, spark-free movement

• Bearings: Sealed and lubricated bearings for longevity

• Safety Features: Anti-drop plates, side guards, and explosion-proof components

• Corrosion Resistance: Excellent—ideal for humid, chemical, and clean environments

• Maintenance: Low-maintenance design with long service intervals

• Applications: Chemical plants, oil and gas facilities, paint shops, grain silos, and pharmaceutical production

• Manufacturer: OZ Lifting Products

• Country of Origin: USA
