The Spark Resistant Push Beam Trolley (10T) from OZ Lifting Products is built for maximum safety and performance in the most hazardous environments. Meeting stringent EU standards—ATEX94/9/EC and Machinery Directive 2006/42/EC—this heavy-duty trolley features an explosion-proof rating of EX II2 GD c IIIC T135°C, making it ideal for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) areas. With a 10-ton capacity, it delivers reliable, spark-free material handling for demanding industrial applications such as chemical processing, oil and gas, and grain handling facilities.

Product Description

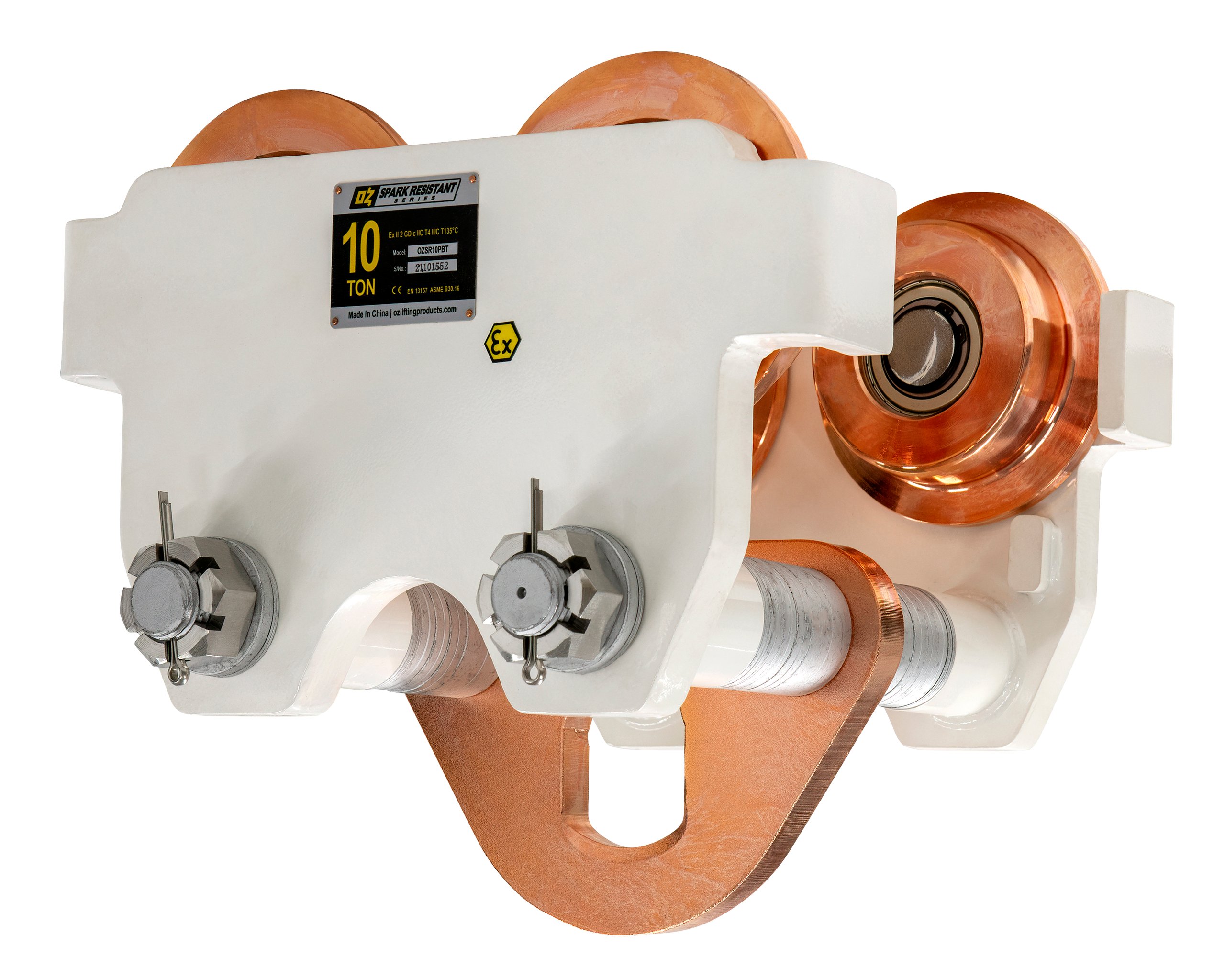

The OZSR10PBT Spark Resistant Push Beam Trolley (10 Ton) by OZ Lifting Products is engineered for the most critical and hazardous work environments where safety cannot be compromised. Designed to prevent sparks that could trigger explosions, this trolley provides peace of mind and dependable lifting performance in industries dealing with flammable gases, dust, or vapors.

Complying with the ATEX94/9/EC and Machinery Directive 2006/42/EC standards, the OZSR10PBT is certified for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous areas. Its EX II2 GD c IIIC T135°C explosion-proof rating ensures that it meets the highest European safety classifications for spark resistance and thermal protection.

This trolley features a 10-ton (20,000 lbs) load capacity, providing the strength needed to transport and support large, heavy equipment safely. Built with non-ferrous metals such as bronze and brass, along with stainless steel components, it eliminates the risk of spark generation caused by friction or metal-to-metal contact. Its manual push operation ensures smooth, controlled movement without requiring electricity—further minimizing explosion risks.

The OZSR10PBT incorporates precision-engineered bronze wheels with sealed bearings for effortless rolling along I-, S-, and W-beams. Its adjustable flange width allows it to adapt to various beam sizes, offering flexibility across multiple applications. In addition, anti-drop plates and side guards add critical layers of protection to prevent derailment and enhance operational safety.

This trolley is ideal for chemical plants, oil refineries, grain silos, paint shops, and manufacturing facilities—anywhere hazardous materials or combustible dust may be present. It provides the strength and security required for high-capacity material handling while maintaining full compliance with explosion-proof standards.

The OZSR10PBT Spark Resistant Push Beam Trolley represents the perfect balance of industrial strength, compliance, and safety, designed to perform reliably where ordinary equipment cannot.

Specifications

• Model: OZSR10PBT

• Capacity: 10 Ton (20,000 lbs)

• Explosion-Proof Rating: EX II2 GD c IIIC T135°C

• Compliance Standards: ATEX94/9/EC and Machinery Directive 2006/42/EC

• Hazardous Zones: Zone 1 & 2 (Gas) / Zone 21 & 22 (Dust)

• Operation Type: Manual Push

• Frame Material: Stainless Steel with Spark-Resistant Bronze and Brass Components

• Wheels: Bronze wheels with sealed precision bearings for smooth and quiet movement

• Beam Compatibility: Fits standard I-, H-, and W-beams

• Flange Width Adjustment: Tool-free adjustable system

• Safety Features: Anti-drop plates, side guards, and spark-resistant design

• Corrosion Resistance: Excellent — ideal for humid, chemical, or food-grade environments

• Explosion Protection: Designed to prevent sparks and static discharge during operation

• Maintenance: Low-maintenance, corrosion-resistant materials

• Applications:

  • Oil and Gas Facilities

  • Chemical Processing Plants

  • Pharmaceutical Manufacturing

  • Grain Handling and Storage

  • Paint and Coating Operations

  • Food Processing and Packaging

• Country of Origin: USA
